Description
+-

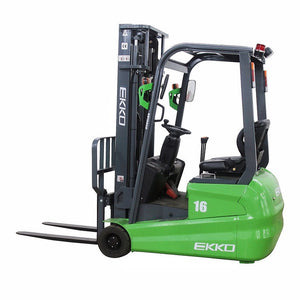

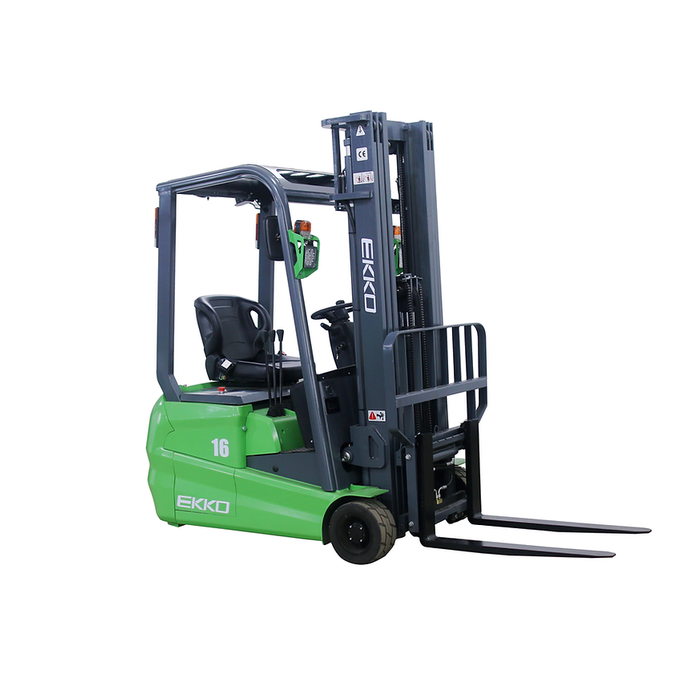

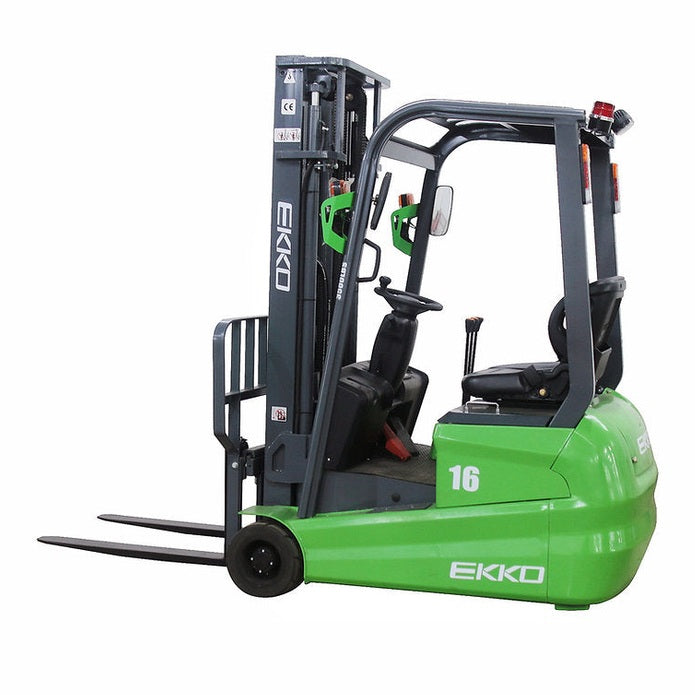

The EKKO EK16A-189Li is a three-wheel 3,500 lb capacity lithium-ion electric forklift built for tight indoor work — loading docks, stock rooms, manufacturing floors, and warehouses on flat concrete. The three-wheel configuration uses a single steer wheel at the rear and dual drive wheels at the front, which trades the cornering stability of a four-wheel truck for a tighter turning circle in narrow aisles.
Power comes from a 24V / 200Ah lithium-ion battery paired with a Zapi® controller and an AC drive motor. The 3.3 kW lift motor handles the full 189-inch maximum lift with a 31.5-inch free lift. Lithium chemistry brings the operational advantages buyers cross-shop for: opportunity charging without memory effect, no acid maintenance, no equalize cycle, and a longer cycle life than the lead-acid configurations these trucks used to ship with.

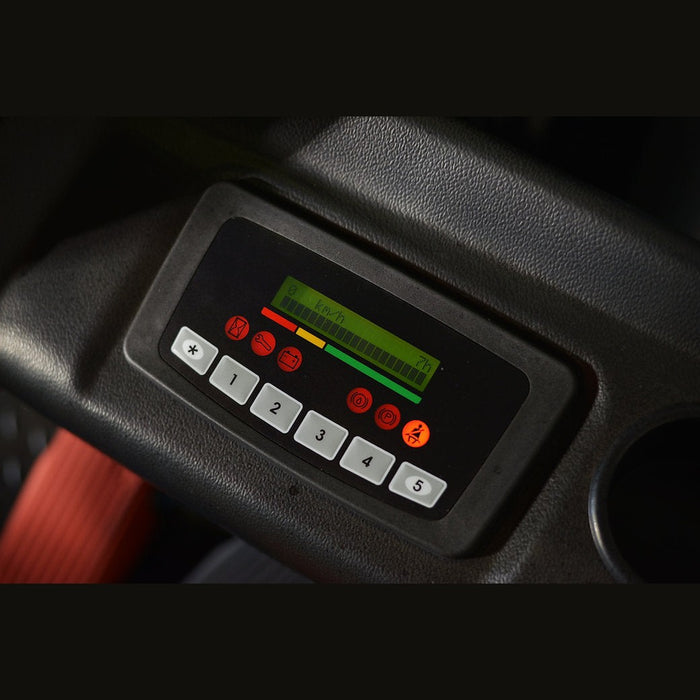

Operator display with speed gauge, status indicators, and numeric keypad.
The truck’s footprint is the headline number for buyers planning around existing rack layouts: 65-inch overall length, 42.1-inch overall width, and a 58.9-inch turning radius. Wheelbase is 49.2 inches. Service weight is 5,300 lb. At 6% laden / 10% unladen gradeability, the EK16A-189Li handles standard warehouse-floor inclines (dock approaches, ramp transitions) but is not configured for steep grades or outdoor terrain.
Operator controls layout follows a familiar pattern. Hydraulic power steering takes effort off the steering wheel. Three hydraulic levers handle lift, tilt, and side shift; mast tilt range is 3° forward and 6° backward.

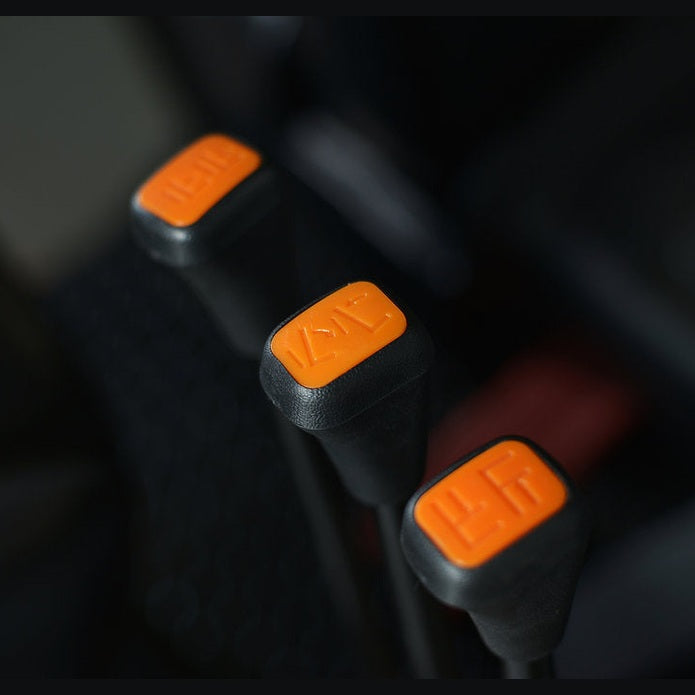

Lift, tilt, and side-shift hydraulic levers at the operator station.
The carriage carries side-shifting forks for pallet alignment without driving in, and forks are adjustable from 7.9 inches to 26 inches apart for narrow boxes through standard pallets. Fork length is 42.1 inches; fork thickness is 1.4 inches; fork width is 4 inches. Cushion tires fit the indoor-flat-floor mission — smaller, narrower footprint than pneumatics, no air to lose.
EKKO builds the EK16A-189Li with steel construction and robotic welding, which keeps the weld geometry consistent unit-to-unit and removes one of the variables hand-welded chassis carry. Forklift King is an authorized EKKO Lifts dealer and handles US delivery, freight scheduling, and post-sale support.
Features
+-
3,500 lb capacity at 24-inch load center. Sized for standard pallet weights in indoor warehouse work.
189-inch (15.75 ft) maximum lift height, 31.5-inch free lift. Clears standard pallet rack and reaches into upper beam levels.
Three-wheel configuration with a 58.9-inch turning radius for narrow-aisle maneuverability.
24V / 200Ah lithium-ion battery with Zapi® controller and AC drive motor. Opportunity-chargeable, no acid maintenance.
3.3 kW lift motor.
Hydraulic Power Steering (HPS).
Side-shifting forks for fork-to-load alignment without repositioning the truck.
Adjustable forks — 7.9 in to 26 in fork-spread range.
Mast tilt 3° forward / 6° backward.
Cushion tires for indoor smooth-concrete use.
Steel construction with robotic welding for consistent chassis geometry.
Charger included. 24V / 50A.
What’s Included
+-
EK16A-189Li forklift
24V / 200Ah lithium-ion battery
24V / 50A charger
Side-shifting forks (factory-installed)
Adjustable-width forks, 7.9–26 in (factory-installed)
Specifications
+-
EKKO EK16A-189Li Specifications
Model
EK16A-189Li
Drive type
Lithium-ion electric
Type of operation
Rider
Load capacity
3,500 lb
Load center distance
24 in
Service weight
5,300 lb
Wheelbase
49.2 in
Maximum lifting height
189 in (15.75 ft)
Free lifting height
31.5 in
Lowered mast height
84.75 in
Overall length
65 in
Overall width
42.1 in
Turning radius
58.9 in
Fork size (Thick / Width / Length)
1.4 / 4 / 42.1 in
Fork adjust width
7.9 – 26 in
Side-shifting forks
Yes (factory-installed)
Tilt (forward / backward)
3° / 6°
Gradeability (laden / unladen)
6% / 10%
Lift speed (laden / unladen)
4.71 / 10.2 in/s
Lowering speed (laden / unladen)
11.8 / 15.7 in/s
Tires
Cushion
Drive motor
24V AC
Lifting motor
3.3 kW
Controller
Zapi®
Battery
24V / 200Ah lithium-ion
Charger
24V / 50A
Specifications subject to change without notice. Confirm current build details with Forklift King before order.
Warranty
+-
3-year limited warranty on the EK16A-189Li, running from initial delivery date. Specific terms, exclusions, and service procedures are documented in EKKO’s published warranty terms.
FAQ
+-
Can the EK16A-189Li be used outdoors?
No. The EK16A-189Li is a cushion-tire electric forklift configured for indoor use on flat surfaces. Cushion tires lose traction on gravel, asphalt seams, and wet outdoor surfaces, and the 6% laden gradeability is not designed for steep ramps or outdoor terrain.
Are the battery and charger included?
Yes. Both the 24V / 200Ah lithium-ion battery and the matching 24V / 50A charger ship with the forklift. Pricing is for the complete unit.
Why lithium-ion instead of lead-acid?
Lithium-ion chemistry is opportunity-chargeable — operators can plug in during breaks without harming battery life — and there is no acid maintenance, no equalize cycle, and no water topping. For multi-shift operations or facilities that want to skip the battery-swap room entirely, lithium is the right configuration. The trade-off is a higher up-front cost, recovered over the battery’s service life.
What’s the lift speed?
Laden lift speed is 4.71 in/s; unladen is 10.2 in/s. Lowering speed is 11.8 in/s laden and 15.7 in/s unladen.
How tight can it turn?
Turning radius is 58.9 inches. Combined with the 42.1-inch overall width and 65-inch overall length, the EK16A-189Li is purpose-built for narrow aisle work.
How is it delivered?
The EK16A-189Li ships by LTL freight from the US. Contact us for freight scheduling, liftgate availability, and delivery details specific to your destination.
