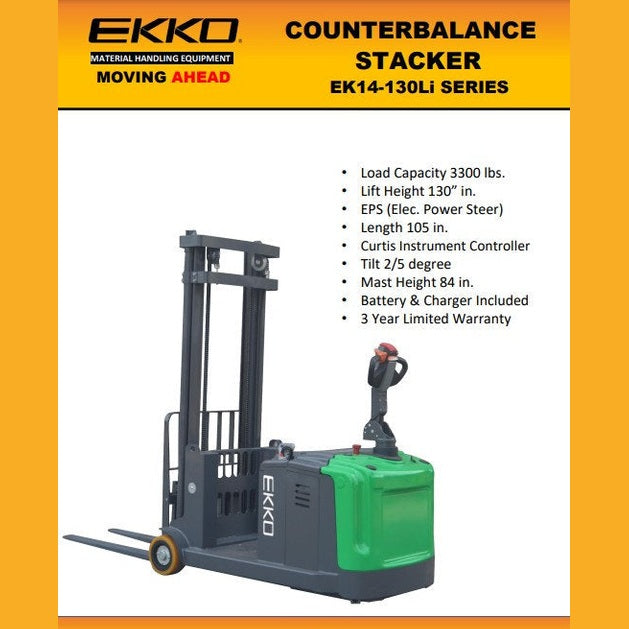

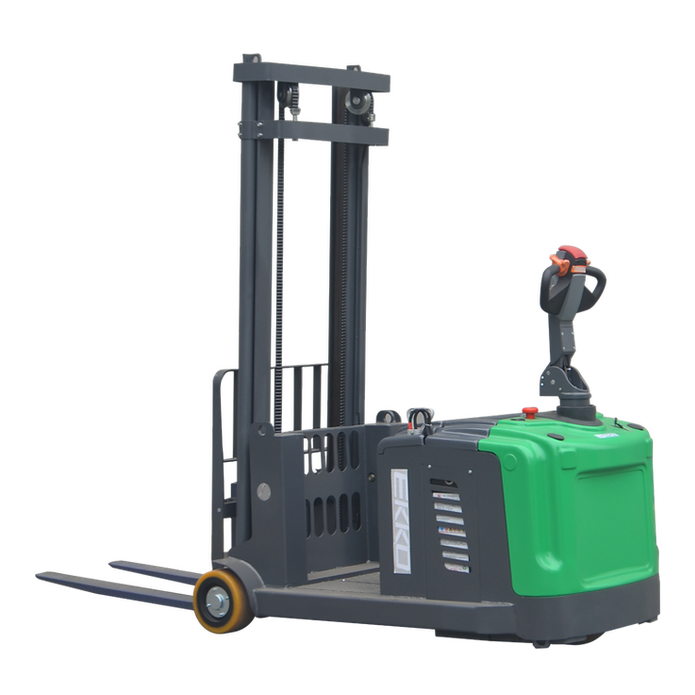

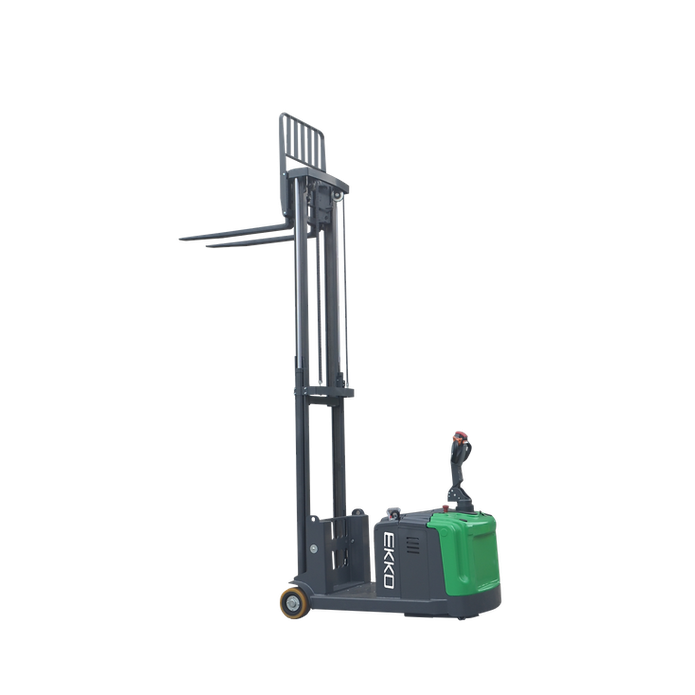

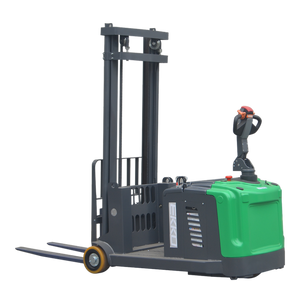

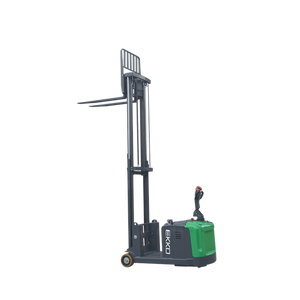

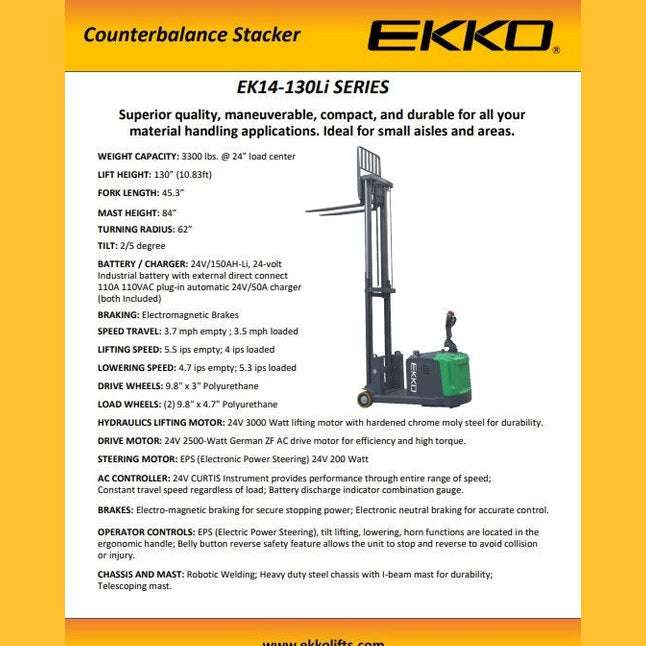

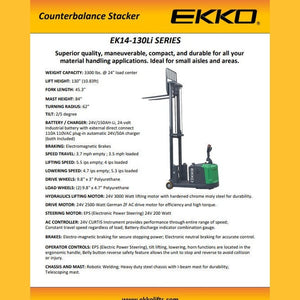

EKKO EK14S-130Li Lithium Counterbalanced Walkie Stacker SIDE-SHIFTING

The EKKO EK14S-130Li is a lithium-powered counterbalanced walkie stacker that lifts 3,300 lb to a raised height of 130 in (10.83 ft). Its counterbalanced design carries the load on cantilevered forks without straddle legs, so it handles closed-bottom pallets, stillages, and odd-footprint loads that a straddle stacker cannot reach under. It is built as a bridge between a sit-down forklift and a walk-behind stacker — forklift-style load handling in a compact, pedestrian-controlled footprint for loading docks, stock rooms, manufacturing floors, and general warehousing.

The 24V/150Ah lithium battery and a matching 24V/50A automatic charger are both included, so the unit arrives ready to work without a separate battery purchase. Electronic Power Steering and an ergonomic control handle keep low-speed maneuvering precise, and an integrated side-shift moves the load up to 4 in left or right for fine pallet placement without repositioning the whole truck. Forks adjust from 8.6 to 28.3 in to match different pallet widths.

EKKO Lifts builds the EK14S-130Li from steel with robotic welding on an I-beam telescoping mast, and runs it on polyurethane drive and load wheels suited to the smooth, flat floors of indoor material handling.

• Counterbalanced cantilever forks handle closed-bottom pallets and stillages without straddle legs
• 24V/150Ah lithium-ion battery and 24V/50A automatic charger included
• Integrated side-shift, up to 4 in, for load placement without repositioning the truck
• Forks adjust 8.6–28.3 in wide, 45.3 in long, to fit varied pallet sizes
• Mast and fork carriage tilt 2° forward / 5° back
• Electronic Power Steering with an ergonomic control handle
• Curtis controller for smooth speed control across the range
• German ZF AC drive motor
• Electromagnetic braking with belly-button reverse safety
• Polyurethane drive and load wheels for smooth indoor floors
• I-beam telescoping mast on a robotically welded steel chassis

• 24V/150Ah lithium-ion battery
• 24V/50A automatic charger

The EK14S-130Li is covered by a 3-year limited warranty.

What does “counterbalanced” mean here, and how is it different from a straddle stacker?

The forks cantilever out front and the load is balanced by the truck's own weight, so there are no straddle legs reaching under the load. That lets the EK14S-130Li handle closed-bottom pallets, stillages, and non-standard load footprints that a straddle stacker cannot get under.

Are the battery and charger included?

Yes. The unit ships with a 24V/150Ah lithium-ion battery and a matching 24V/50A automatic charger, so no separate battery purchase is required.

Will it fit through my doorways and into trailers?

The mast lowers to 84 in for travel and clearance, then extends to lift loads up to 130 in. Overall the unit is 113 in long and 39 in wide with a 57 in turning radius.

What surfaces is it built for?

It rides on polyurethane drive and load wheels and is designed for the smooth, flat floors of loading docks, stock rooms, manufacturing floors, and warehouses.

What is the rated capacity and load center?

3,300 lb at a 24 in load center.

Manual and technical documents are available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
