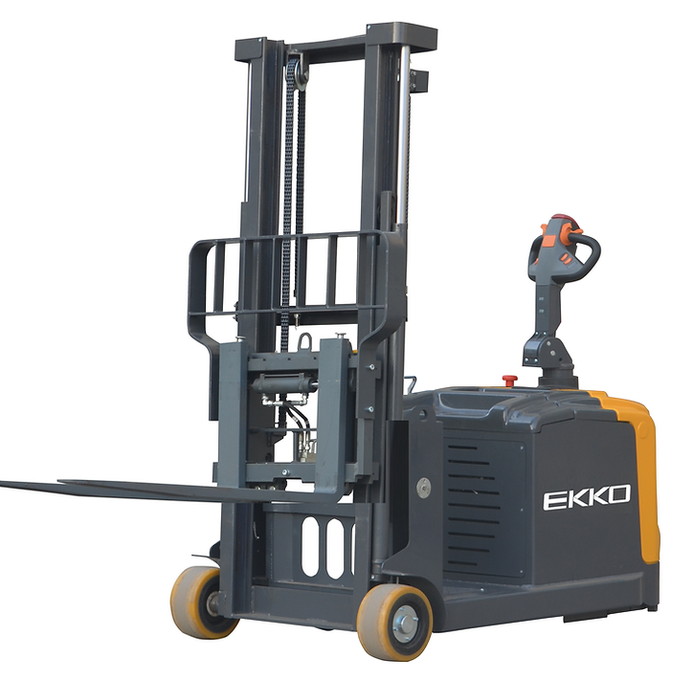

EKKO EK14S-130 Counterbalanced Walkie Stacker SIDE-SHIFTING

The EKKO EK14S-130 is a fully powered, counterbalanced walkie stacker rated to lift 3,300 lb to a height of 130 inches (10.83 feet). It pairs the reach of a forklift with the compact footprint of a walk-behind stacker, which suits it to loading and unloading trucks, working loading docks, and moving pallets through stock rooms, manufacturing floors, and general warehousing where a sit-down forklift will not fit.

Because the design is counterbalanced rather than straddle, there are no outrigger legs around the load, so it handles closed-bottom pallets, stillages, and odd-shaped loads that a straddle stacker cannot. An integrated side-shift gives 4 inches of lateral fork travel for lining up with a rack opening or pallet without repositioning the whole truck. The forks adjust from 8.6 to 28.3 inches wide and run 45.3 inches long, covering standard and non-standard pallet sizes.

The EK14S-130 is part of EKKO Lifts' counterbalanced stacker line and ships with its 24-volt battery and matching charger included, backed by a 3-year limited warranty. It moves on LTL freight — contact Forklift King to arrange delivery and scheduling.

• Side-shift — 4 inches of lateral fork travel to align with racks and pallet openings without moving the truck.
• EPS electronic power steering — a 24V/200W steering motor for low-effort maneuvering in tight aisles.
• German ZF AC drive motor — 24V/2,500W, geared for efficiency and high torque.
• Curtis controller — manages drive performance and a battery discharge indicator.
• Belly-button reverse safety — lets the operator stop and reverse the unit to avoid collision or pinning.
• Electromagnetic braking — for secure stopping power and electronic neutral braking.
• 24V/2,500W lift motor with a hardened chrome-moly cylinder.
• Polyurethane drive and load wheels for clean, non-marking indoor floors.
• Robotically welded, heavy-duty steel chassis with a telescoping I-beam mast.
• Ergonomic handle integrating lift, lower, tilt, and horn controls.

• 24V / 210Ah industrial battery (side-mounted)
• 24V / 30A automatic plug-in charger (110VAC, external direct-connect)

The EK14S-130 is covered by a 3-year limited warranty from EKKO.

How high does it lift, and how tall is it when lowered?

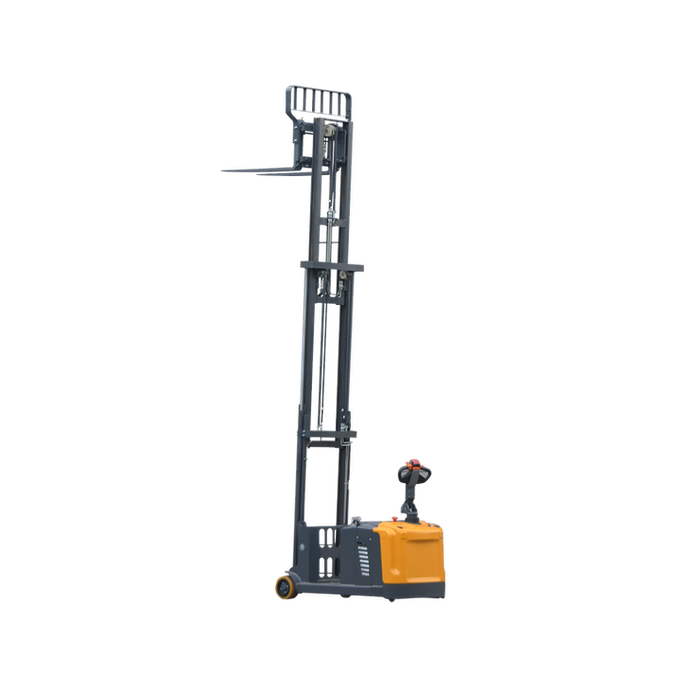

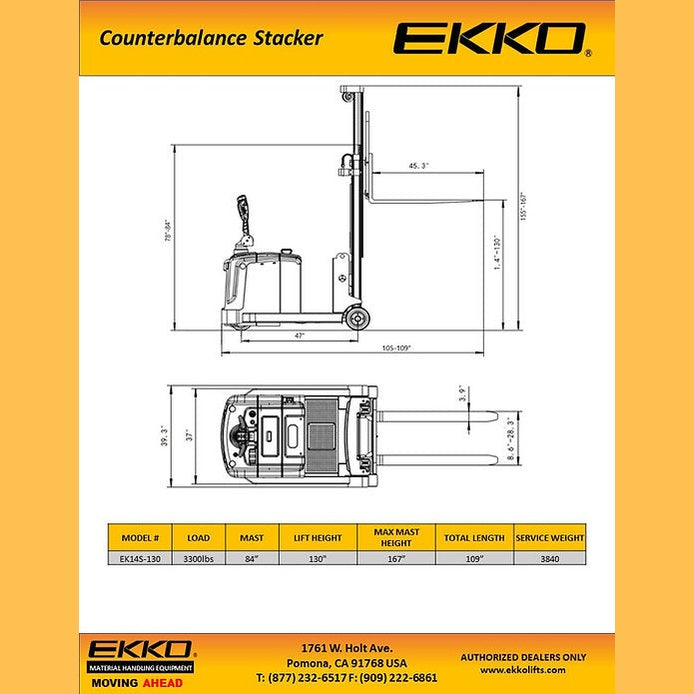

Forks lift to 130 inches (10.83 feet). The mast stands 84 inches tall when fully lowered and extends to 167 inches at full lift, so confirm overhead clearance and doorway height for your route before ordering.

Are the battery and charger included?

Yes. The stacker ships with a 24V / 210Ah industrial battery and a matching 24V / 30A automatic plug-in charger that runs on 110VAC.

What does the side-shift do?

The side-shift moves the forks 4 inches laterally so you can line up with a pallet or rack opening without repositioning the whole truck — useful in tight rack runs.

Can it handle ramps and inclines?

Rated gradeability is 6% laden and 10% unladen. It is built for flat indoor surfaces such as docks, stock rooms, and warehouse floors rather than sustained grades.

How much does it weigh?

Service weight is 3,840 lb. Confirm your floor and dock ratings can support the truck plus its rated 3,300 lb load.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
