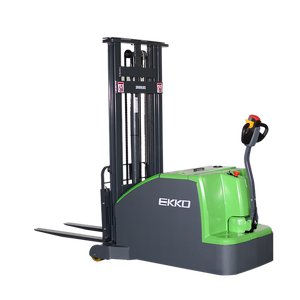

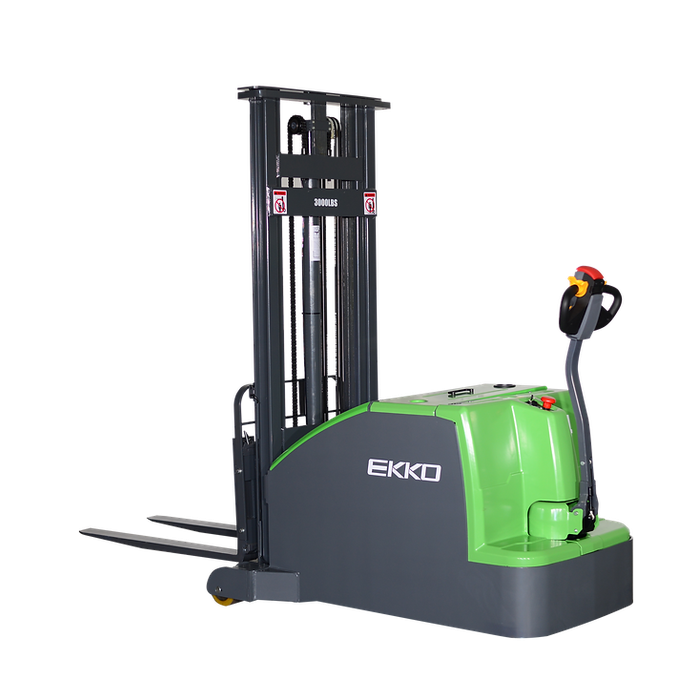

EKKO EK14CS-189Li Lithium Counterbalanced Walkie Stacker, Side Shifting

Name: EKKO EK14CS-189Li Lithium Counterbalanced Walkie Stacker, Side Shifting
Brand: EKKO Lifts
SKU: EK14CS-189Li
Price: 23038.0 USD
Availability: InStock

SKU EK14CS-189Li

In Stock

$23,038.00 - $23,038.00

$23,038.00

$23,038.00 - $23,038.00

$23,038.00

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

The EKKO EK14CS-189Li is a lithium-powered counterbalanced walkie stacker rated to lift 3,000 lb to a 189" (15.75 ft) raised height. It pairs the load-handling reach of a forklift with the compact, pedestrian footprint of a walkie stacker — built for loading and unloading trucks, working loading docks, and moving stock across stock rooms, manufacturing floors, and warehouse aisles.

Because the EK14CS-189Li is counterbalanced rather than straddle-legged, the forks sit out front with no outrigger arms in the way, so the operator can approach closed-bottom pallets and non-standard loads the way a sit-down forklift would. An integrated side-shift moves the fork carriage up to 4 inches left or right to line up with a pallet or rack opening without repositioning the whole truck, and the forks adjust from 8.6 to 26 inches to handle different pallet widths.

A Curtis controller manages the 24-volt AC drive system, and a synchronous proportional valve meters hydraulic flow for controllable lifting and lowering. The ergonomic tiller handle keeps travel, lift, lower, and steering controls within the operator's reach, and electric power steering reduces the effort of turning in tight spaces. The chassis is built from steel with robotic welding and rides on polyurethane drive and load wheels suited to smooth indoor floors.

The EK14CS-189Li ships with its lithium battery and matched charger included, and is backed by EKKO's 3-year limited warranty. It ships via LTL freight.

Features

3,000 lb load capacity at a 24" load center
189" (15.75 ft) raised lift height
Counterbalanced design — no straddle legs, forklift-style load access
Integrated side-shift, up to 4"
Fork adjustment from 8.6" to 26", with 2° / 5° forward/back tilt
Curtis controller with 24V AC drive motor
Synchronous proportional valve for metered lift and lower
Electric power steering (EPS)
Polyurethane drive and load wheels
Ergonomic tiller handle and controls
Steel construction with robotic welding
24V / 150Ah lithium-ion battery and 24V / 50A charger included

What's Included

24V / 150Ah lithium-ion battery
24V / 50A charger

Specifications

EKKO EK14CS-189Li Specifications
Model	EK14CS-189Li
Lift type	Electric
Drive type	Electric
Load capacity	3,000 lb
Load center distance	24"
Raised (lift) height	189" (15.75 ft)
Lowered mast height	84.3"
Extended mast height	217.2"
Side shift	4"
Mast / fork carriage tilt (forward / back)	2° / 5°
Fork size (thickness × width × length)	1.4" × 4" × 42.1"
Fork adjustment width	8.6" – 26"
Overall length	122.6"
Overall width	42.1"
Wheel base	47"
Turning radius	57"
Max gradient (laden / unladen)	6% / 10%
Lift speed (laden / unladen)	2.95 / 3.94 in/s
Lowering speed (laden / unladen)	5.3 / 4.7 in/s
Drive motor	24V AC, 2,500 W
Lift motor	24V
EPS steering motor	24V, 200 W
Battery	24V / 150Ah lithium-ion
Charger	24V / 50A
Wheels	Polyurethane
Service weight	4,650 lb

Warranty

The EKKO EK14CS-189Li is covered by EKKO's 3-year limited warranty.

FAQ

How much can the EK14CS-189Li lift, and how high?

It is rated for 3,000 lb at a 24" load center and raises loads to a 189" (15.75 ft) height.

Are the battery and charger included?

Yes. The stacker ships with a 24V / 150Ah lithium-ion battery and a matched 24V / 50A charger.

Does it have straddle legs?

No. It is a counterbalanced stacker, so there are no outrigger legs — the forks sit out front like a sit-down forklift, which lets it handle closed-bottom pallets and non-standard loads.

Can it line up with a pallet without repositioning the whole truck?

Yes. The integrated side-shift moves the fork carriage up to 4" left or right, and the forks adjust from 8.6" to 26" for different pallet widths.

What floors is it suited for?

It rides on polyurethane drive and load wheels, which are intended for smooth indoor surfaces such as warehouse floors, loading docks, and stock rooms.

Documents

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
