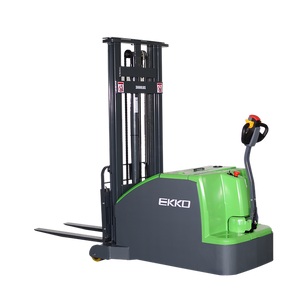

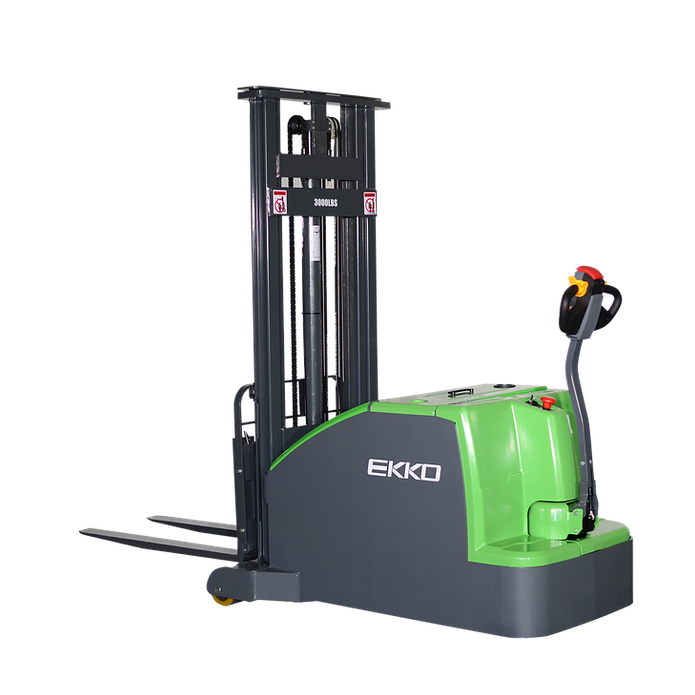

EKKO EK14CS-130Li Lithium Counterbalanced Walkie Stacker, 3,000 lbs Capacity

Name: EKKO EK14CS-130Li Lithium Counterbalanced Walkie Stacker, 3,000 lbs Capacity
Brand: EKKO Lifts
SKU: EK14CS-130Li
Price: 19198.0 USD
Availability: InStock

SKU EK14CS-130Li

In Stock

$19,198.00 - $19,198.00

$19,198.00

$19,198.00 - $19,198.00

$19,198.00

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

The EKKO EK14CS-130Li is a lithium-powered counterbalanced walkie stacker that lifts a 3,000 lb load to a 130-inch raised fork height. The counterbalanced design carries the load without straddle legs, so the truck drives straight up to pallets, racking, and truck beds the way a sit-down forklift does — in the footprint and walk-behind format of a stacker.

It is built for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehouse work where a full forklift is more machine than the task needs. Steel construction with robotic welding, polyurethane wheels, and a drivetrain rated to absorb repeated impacts and directional changes keep it working through heavy daily use.

Features

3,000 lb load capacity at a 24-inch load center.
130-inch raised fork height (10.83 ft), with a 158.7-inch extended mast height.
Integrated side-shift with 4 inches of lateral travel to align loads without repositioning the truck.
Fork spread adjusts from 8.6 to 26 inches for varied pallet sizes; 42.1-inch fork length.
Curtis® controller governing drive and lift functions.
AC 24V drive motor with 24V EPS electric power steering.
24V / 150 Ah lithium-ion battery, with charger included.
Polyurethane wheels and an ergonomic handle with integrated controls.
Steel construction with robotic welding.

What's Included

24V / 150 Ah lithium-ion battery
24V / 50A charger

Specifications

EKKO EK14CS-130Li Specifications
Model	EK14CS-130Li
Drive Type	Lithium Walkie Stacker
Type of Operation	Lithium Battery
Load Capacity	3,000 lbs
Load Center Distance	24 in
Lifting Height (raised)	130 in
Extended Mast Height	158.7 in
Service Weight	4,330 lbs
Overall Length	109 in
Overall Width	42.1 in
Wheel Base	47 in
Turning Radius	57 in
Side Shifting	4 in
Fork Size (Thick / Width / Length)	1.4 / 4 / 42.1 in
Fork Adjustment Width	8.6 - 26 in
Tilt (Forward / Backward)	2° / 5°
Gradeability (Laden / Unladen)	6% / 10%
Lift Speed (Laden / Unladen)	2.95 / 3.94 in/s
Lowering Speed (Laden / Unladen)	5.3 / 4.7 in/s
Drive Motor	AC 24V / 2,500 W
Lift Motor	24V
EPS Steering Motor	24V / 200 W
Battery	24V / 150 Ah Lithium
Charger	24V / 50A

Warranty

The EK14CS-130Li is covered by a 3-year limited warranty.

FAQ

How much can the EK14CS-130Li lift, and at what load center?

It is rated for 3,000 lbs at a 24-inch load center, raising to a 130-inch fork height.

Does the battery and charger come with it?

Yes. The unit ships with a 24V / 150 Ah lithium-ion battery and a matching 24V / 50A charger.

Can the forks side-shift and adjust for different pallets?

Yes. The stacker has 4 inches of integrated side-shift, and the fork spread adjusts from 8.6 to 26 inches. Fork length is 42.1 inches.

What is the footprint and turning radius?

Overall length is 109 inches, overall width is 42.1 inches, and the turning radius is 57 inches, on a 47-inch wheel base.

What is the service weight?

The unit weighs 4,330 lbs in service trim.

Documents

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
