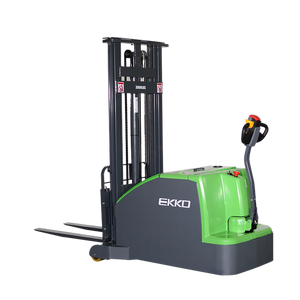

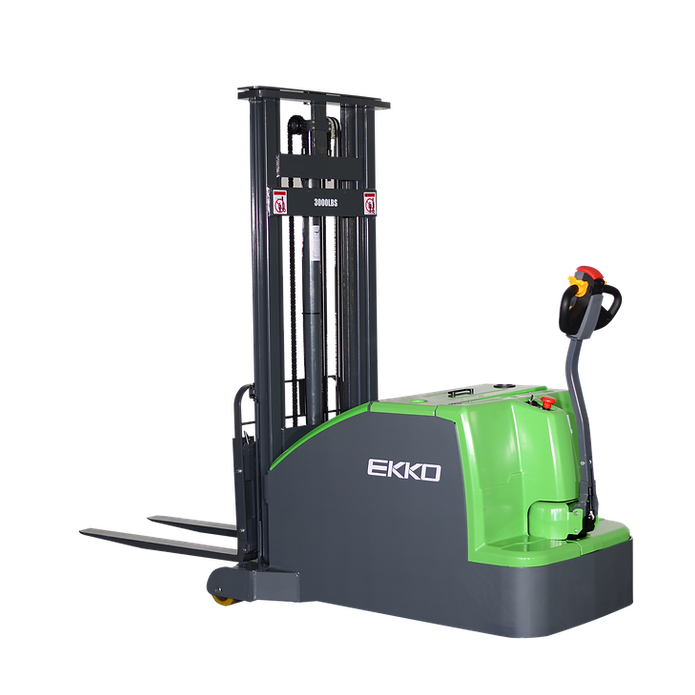

EKKO EK14C-130Li Lithium Counterbalanced Walkie Stacker

The EKKO EK14C-130Li combines the reach of a counterbalanced forklift with the compact footprint of a walk-behind stacker. It carries a rated 3,000 lb load and lifts to 130 inches (10.83 feet), putting upper-rack and trailer-height work within range of an operator who walks behind the unit instead of riding in a cab. Because the design is counterbalanced rather than straddle, it carries its load on a counterweight with no outrigger legs — so it handles standard and closed-bottom pallets the way a sit-down forklift does, where a straddle stacker can't fit its legs under the load.

It is built for loading and unloading trucks, working loading docks, and moving stock across stock rooms, manufacturing floors, and general warehousing. The chassis is steel, joined with robotic welding for repeatable weld quality, and it rides on polyurethane wheels suited to smooth indoor concrete.

Power is fully electric. A 24V, 150Ah lithium-ion battery drives both travel and lift, and the matching 24V/50A charger is included, so the unit arrives ready to put to work. A Curtis controller manages the drive system, and electric power steering reduces the effort of maneuvering a 4,230 lb machine through tight aisles — the turning radius is 57 inches, with an overall length of 118 inches and a width of 42.1 inches for aisle planning.

Forks measure 42.1 inches long and adjust from 8.6 to 26 inches wide to match different pallet openings. An available side-shift adds 4 inches of travel for fine pallet alignment without repositioning the whole truck, and mast tilt of 2 degrees forward and 5 degrees back helps stabilize loads on the way up and down. The unit ships via freight; Forklift King arranges delivery scheduling.

• Counterbalanced design — carries the load on a counterweight with no straddle legs, so it handles standard and closed-bottom pallets a straddle stacker can't reach.
• Lithium-ion power, charger included — a 24V/150Ah lithium-ion battery with a matching 24V/50A charger; lithium chemistry supports opportunity charging between shifts.
• Curtis controller with electric power steering — smooth drive control and reduced steering effort under load.
• Adjustable forks and available side-shift — forks adjust 8.6 to 26 inches wide; a side-shift adds 4 inches of lateral travel for pallet alignment.
• Polyurethane wheels — matched to smooth indoor concrete.
• Steel construction with robotic welding — for repeatable weld quality across the chassis.

• 24V / 150Ah lithium-ion battery
• 24V / 50A charger

The EK14C-130Li is backed by a 3-year limited warranty.

Does this stacker need straddle legs or outriggers?

No. It is a counterbalanced stacker — it carries the load on a counterweight, so it handles standard and closed-bottom pallets without straddle legs getting in the way.

Are the battery and charger included?

Yes. It ships with a 24V/150Ah lithium-ion battery and a matching 24V/50A charger.

How high and how much does it lift?

It lifts up to 3,000 lb at a 24-inch load center, to a maximum fork height of 130 inches (10.83 feet).

Will it fit my aisles?

The turning radius is 57 inches, with an overall length of 118 inches and a width of 42.1 inches. Compare those against your narrowest working aisle before ordering.

Is it for indoor or outdoor use?

It runs on polyurethane wheels matched to smooth indoor concrete, with gradeability of 6% laden and 10% unladen.

Manuals and technical documents for the EK14C-130Li are available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
