EKKO EK14C-130 Counterbalanced Walkie Stacker 3000 lb Cap.

Name: EKKO EK14C-130 Counterbalanced Walkie Stacker 3000 lb Cap.
Brand: EKKO Lifts
SKU: EK14C-130
Price: 17278.0 USD
Availability: InStock

SKU EK14C-130

In Stock

$17,278.00 - $17,278.00

$17,278.00

$17,278.00 - $17,278.00

$17,278.00

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

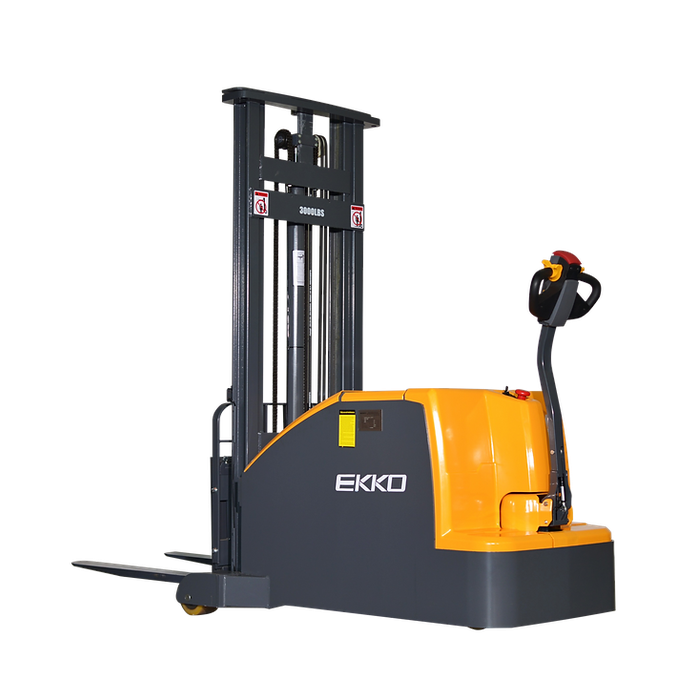

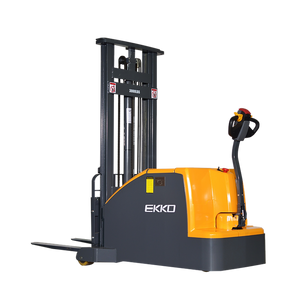

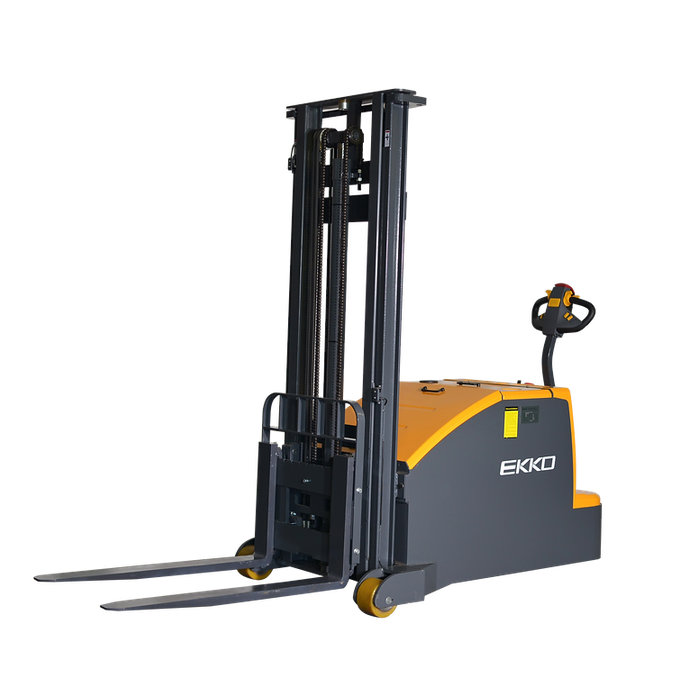

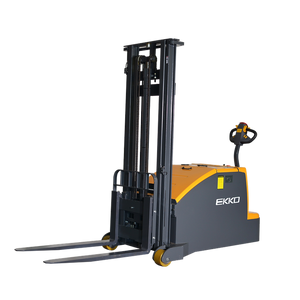

The EKKO EK14C-130 is a fully powered counterbalanced walkie stacker that lifts 3,000 lb to a raised height of 130 inches. Its counterbalanced base carries the load without straddle legs, so the forks drive straight into pallets, skids, and stacked loads the way a sit-down forklift would — while the walk-behind format keeps it working in the tighter footprint of a stock room, a trailer, or a busy loading dock. It is built for loading and unloading trucks, working loading docks, and moving stock across manufacturing floors and warehouse aisles.

Travel and lift are both electric: a 24-volt AC drive motor moves the truck, a separate lift motor raises the mast, and electronic power steering (EPS) cuts the effort of turning the tiller through a 66.3-inch turning radius. A Curtis controller manages drive and lift response. The chassis is steel, joined by robotic welding, and rolls on polyurethane wheels. A matched charger and battery ship with the unit, so it arrives ready to put to work.

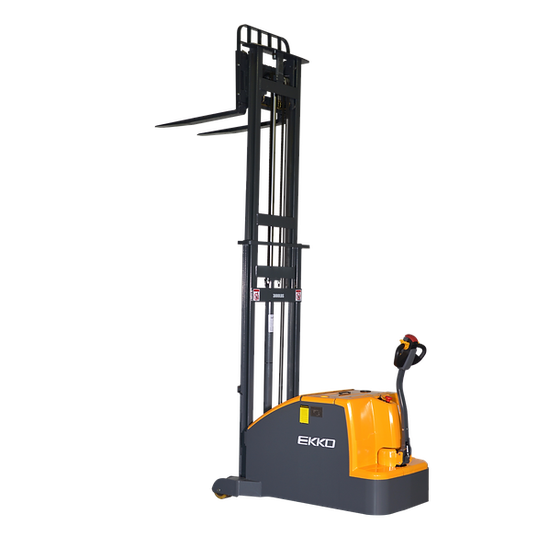

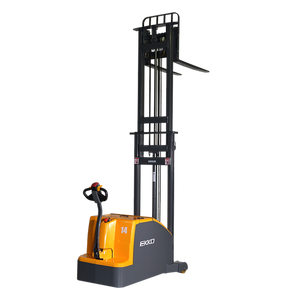

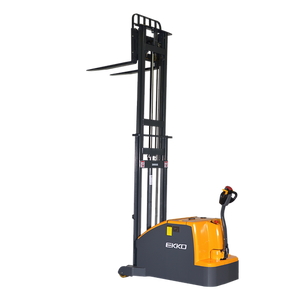

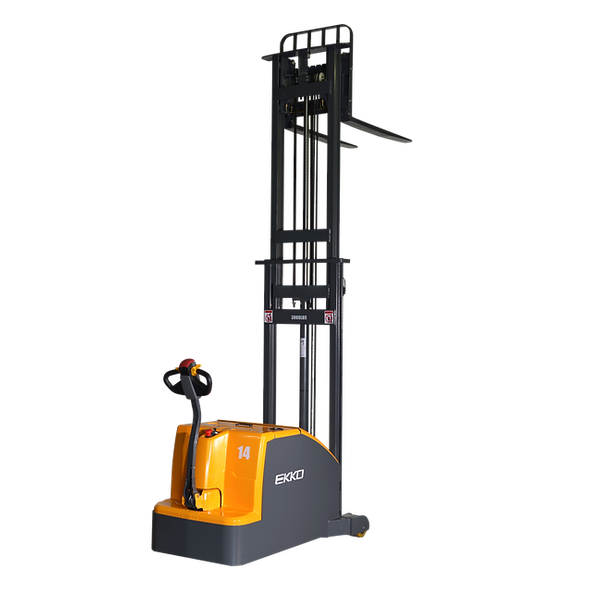

EKKO EK14C-130 walkie stacker with mast fully extended and forks raised — EK14C-130 with the mast fully raised.

The mast measures 85.6 inches lowered and extends to 158.66 inches at full height, with 4 inches of free lift and 2° forward / 5° backward tilt to settle loads onto a rack. Measure your lowest doorway and ceiling against the lowered figure before ordering.

Features

Counterbalanced design — forks load directly into pallets and skids with no straddle legs in the way
24-volt AC drive motor managed by a Curtis controller
Electronic power steering (EPS) for low-effort tiller control
2° forward / 5° backward mast tilt for load stability
Polyurethane wheels
Ergonomic handle and controls
Steel construction joined by robotic welding
Charger and battery included

What's Included

24V / 210 Ah battery
24V / 30 A charger

Specifications

EKKO EK14C-130 Counterbalanced Walkie Stacker Specifications
Model	EK14C-130
Load capacity	3,000 lb
Load center distance	24 in
Raised lift height	130 in (10.83 ft)
Free lift height	4 in
Lowered mast height	85.6 in
Extended mast height	158.66 in
Mast tilt (forward / backward)	2° / 5°
Lift speed (laden / unladen)	2.95 / 3.94 in/s
Max gradeability (laden / unladen)	6% / 10%
Overall length	118 in
Overall width	39 in
Wheelbase	44.7 in
Turning radius	66.3 in
Fork size (thickness × width × length)	1.4 in × 4 in × 42.1 in
Drive motor	1.5 kW
Lift motor	2.2 kW
Steering	EPS (electronic power steering)
Controller	Curtis
Battery	24V / 210 Ah (included)
Charger	24V / 30 A (included)
Wheels	Polyurethane
Construction	Steel, robotic welding
Service weight	4,230 lb

FAQ

Are the charger and battery included?

Yes. The EK14C-130 ships with a 24-volt, 210 Ah battery and a matched 24V / 30 A charger.

How high does it lift?

Forks raise to 130 inches (about 10.83 feet). The mast stands 85.6 inches lowered and extends to 158.66 inches at full height, so check your doorway and ceiling clearance against the lowered figure.

What is the rated capacity and load center?

3,000 lb at a 24-inch load center.

How tight a space can it work in?

Turning radius is 66.3 inches, overall width is 39 inches, and overall length is 118 inches — measure these against your narrowest aisle and dock approach.

Is it fully electric?

Yes. A 24-volt system runs a 1.5 kW travel motor and a 2.2 kW lift motor, with electronic power steering and a Curtis controller.

Documents

Manuals and technical documents for the EK14C-130 are available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
