EKKO EK14-138 Counterbalanced Walkie Stacker 3300 lb Cap.

Name: EKKO EK14-138 Counterbalanced Walkie Stacker 3300 lb Cap.
Brand: EKKO Lifts
SKU: EK14-138
Price: 17598.0 USD
Availability: InStock

SKU EK14-138

In Stock

$17,598.00 - $17,598.00

$17,598.00

$17,598.00 - $17,598.00

$17,598.00

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

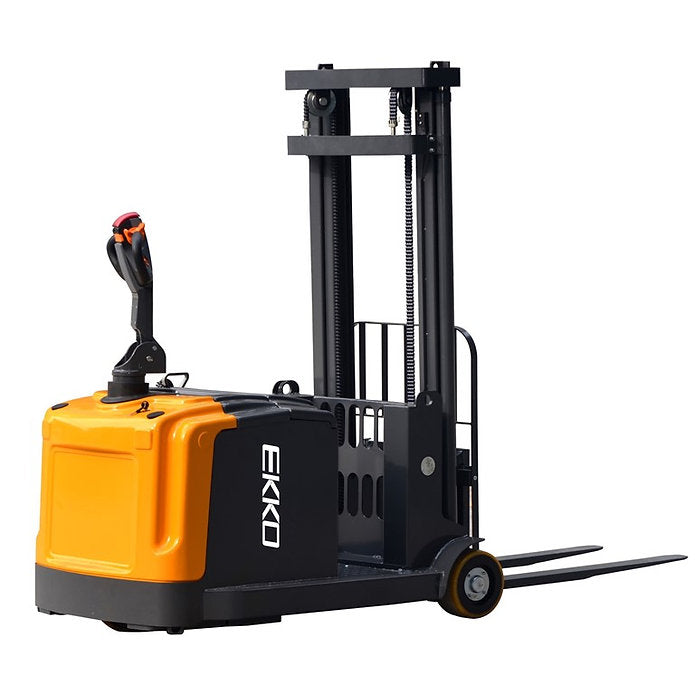

The EKKO EK14-138 is a fully powered electric counterbalanced walkie stacker rated to lift 3,300 lb to a 138" (11.5 ft) maximum fork height. It combines the lift height of a sit-down forklift with the compact, pedestrian-operated footprint of a walkie stacker, which suits it to loading and unloading trucks, working loading docks, and moving stock through stock rooms, manufacturing floors, and general warehousing.

Because it is a counterbalanced design rather than a straddle or reach stacker, the EK14-138 carries its load without outrigger legs in front of the forks — so it handles closed-bottom pallets and loads that straddle-leg stackers cannot clear. The chassis is built from steel and assembled with robotic welding for repeatable joint quality.

The truck runs on a 24V AC drive system managed by a Curtis controller, with Electronic Power Steering (EPS) to reduce the steering effort needed to position the load. Polyurethane wheels and an ergonomic tiller handle round out a package built for repeated maneuvering on smooth indoor surfaces.

Features

Counterbalanced design — no outrigger legs ahead of the forks, so the truck handles closed-bottom pallets and non-straddle loads.
Curtis controller managing a 24V AC drive motor (2,500W).
Electronic Power Steering (EPS) — a dedicated 24V / 200W steering motor lowers the effort to turn and position the truck.
Ergonomic tiller handle and controls for pedestrian operation.
Polyurethane wheels suited to smooth indoor floors.
Steel construction with robotic welding for consistent build quality.
Onboard 24V / 210Ah battery (side-mounted) with a matched 24V / 30A charger included.

What's Included

EKKO EK14-138 counterbalanced walkie stacker
Onboard 24V / 210Ah side-mounted battery
24V / 30A charger

Specifications

EKKO EK14-138 Counterbalanced Walkie Stacker Specifications
Load Capacity	3,300 lb
Load Center	24"
Maximum Lift Height	138" (11.5 ft)
Free Lift Height	4"
Lowered Mast Height	90"
Extended Mast Height	155"
Mast Tilt (forward / back)	2° / 5°
Overall Length	105"
Overall Width	39"
Wheelbase	47"
Turning Radius	62"
Fork Thickness / Width	1.4" / 4"
Lift Speed (laden / unladen)	4 / 5.5 in/s
Lowering Speed (laden / unladen)	5.3 / 4.7 in/s
Drive Motor	AC 24V / 2,500W
Lift Motor	24V / 3,000W
EPS Steering Motor	24V / 200W
Battery	24V / 210Ah (side-mounted)
Charger	24V / 30A
Controller	Curtis
Service Weight	3,880 lb
Warranty	3-year limited

Warranty

The EK14-138 is backed by the EKKO Lifts 3-year limited warranty.

FAQ

How much can the EK14-138 lift, and how high?

It is rated for 3,300 lb and lifts to a maximum fork height of 138" (11.5 ft).

Is a charger included?

Yes. The stacker ships with a 24V / 30A charger and an onboard 24V / 210Ah side-mounted battery.

What surfaces and spaces is it built for?

It runs on polyurethane wheels suited to smooth indoor floors — loading docks, stock rooms, manufacturing floors, and warehousing. Overall width is 39" and turning radius is 62".

How is it steered?

Through an ergonomic tiller handle with Electronic Power Steering (EPS), driven by a dedicated 24V / 200W steering motor.

What is the warranty?

A 3-year limited warranty.

Documents

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
