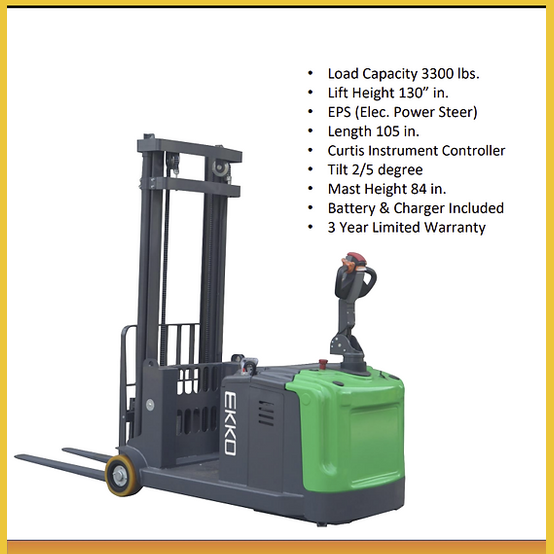

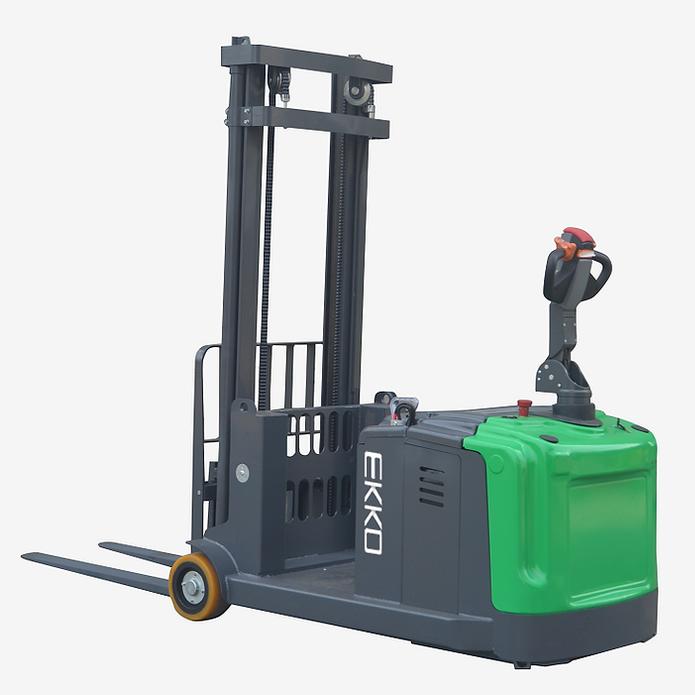

EKKO EK14-130Li Lithium Powered Counterbalanced Walkie Stacker

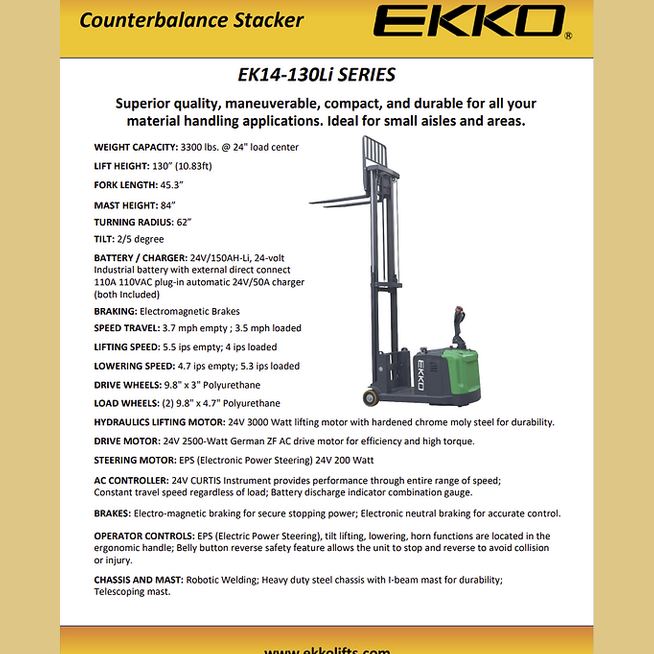

The EKKO EK14-130Li is a lithium-powered counterbalanced walkie stacker rated to lift 3,300 lbs to a height of 130 in (10.83 ft) at a 24-inch load center. Its counterbalanced design carries the load on the forks without straddle legs or outrigger arms, so it handles closed-bottom pallets, stillages, and wider loads that a straddle stacker cannot reach — while staying compact enough for loading docks, stock rooms, manufacturing floors, and general warehousing.

The unit ships with a 24V/150Ah lithium-ion battery and a matching 24V/50A charger, so there is no separate battery or charger to source before the first shift. A Curtis controller manages drive and lift, an ergonomic tiller puts travel and lift/lower under the operator's hands, and a 24V electric steering motor reduces the effort needed to turn. The chassis and mast are built from steel with robotic welding for repeatable joint quality, and the stacker rides on polyurethane wheels suited to smooth indoor floors. Backed by EKKO's three-year limited warranty.

• Counterbalanced design — load rides on the forks with no straddle legs or outriggers, so closed-bottom pallets and wider loads are in reach
• Rated to 3,300 lbs at a 24-inch load center
• 130 in (10.83 ft) maximum lift height; 155 in extended mast height
• 24V/150Ah lithium-ion battery and 24V/50A charger included
• Curtis controller, ergonomic tiller, and 24V electric power steering
• Steel construction with robotic welding; polyurethane wheels for smooth indoor floors

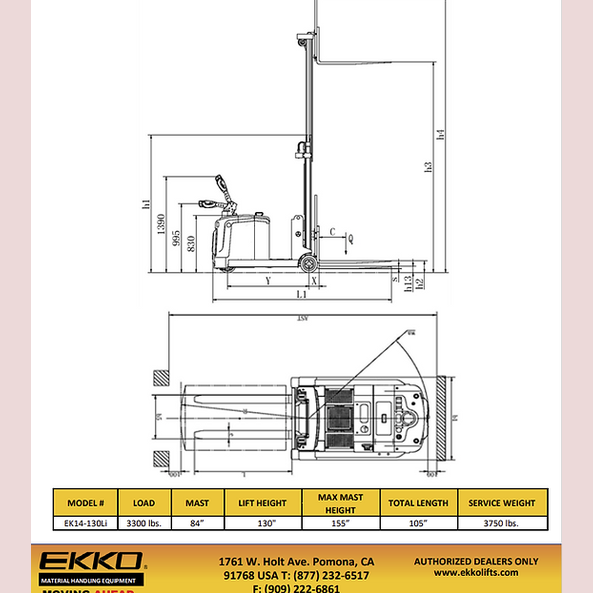

Sized for standard pallet handling in tight indoor spaces:

• 1000 x 1200 mm pallets, crossways — 119 in working aisle
• 800 x 1200 mm pallets, lengthways — 123 in working aisle
• 62 in turning radius

The polyurethane wheels and indoor footprint suit loading docks, stock rooms, manufacturing floors, and warehousing on smooth, level concrete.

• 24V/150Ah lithium-ion battery
• 24V/50A charger

The EK14-130Li is covered by a three-year limited warranty.

Does the counterbalanced design need straddle legs or outriggers?

No. The load rides directly on the forks and is balanced by the chassis, so the stacker can pick up closed-bottom pallets and wider loads that a straddle or outrigger stacker cannot reach.

Are the battery and charger included?

Yes. A 24V/150Ah lithium-ion battery and a 24V/50A charger ship with the stacker.

What aisle width does it need?

It works a 119 in aisle for 1000 x 1200 mm pallets crossways and a 123 in aisle for 800 x 1200 mm pallets lengthways, with a 62 in turning radius.

What is the warranty?

The stacker carries a three-year limited warranty.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
