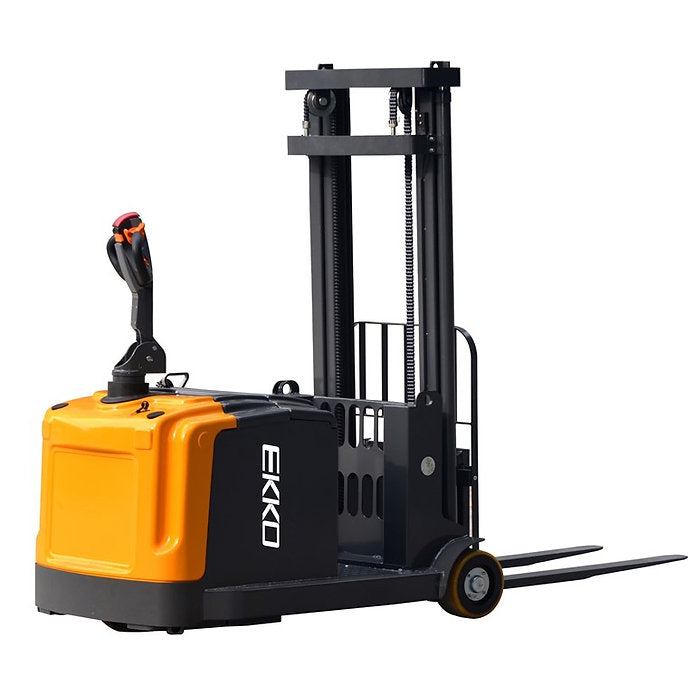

EKKO EK14-130 Counterbalanced Walkie Stacker 3300 lb Cap.

EKKO EK14-130 Counterbalanced Walkie Stacker 3300 lb Cap.

SKU EK14-130

In Stock
$16,958.00 - $16,958.00
$16,958.00
$16,958.00 - $16,958.00
$16,958.00
Call/Text Us: 307-441-9566 Call Us
Live Chat With an Expert Live Chat
WINTER SALE: 5% Applied At Checkout
Winter is here with unbeatable deals + 5% off applied at checkout for all orders above $1000. Dive in now and claim the season’s best savings. Expires soon.

Description

-

The EKKO EK14-130 is a fully powered, counterbalanced walkie stacker that combines the versatility of a forklift with the compact footprint of a walk-behind stacker. Rated for 3,300 lb at a 24-inch load center and a maximum lift height of 130 inches (10.8 ft), it handles loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and general warehousing.

Because it is counterbalanced rather than straddle-legged, the EK14-130 works with closed-bottom pallets and gets its forks where a straddle stacker cannot. The operator walks behind on the tiller, steering through a 57-inch turning radius with EPS electronic power steering, and the forks adjust from 8.6 to 28.3 inches across to square up to the load. A belly-button reverse on the tiller head stops and reverses the unit to help avoid pinning the operator.

Power is a 24V drivetrain: a 24V AC drive motor and a 24V lift motor managed by a Curtis controller, with a battery-discharge indicator at the operator's hands. An electromagnetic brake holds the unit, polyurethane drive and load wheels suit smooth indoor floors, and the telescoping I-beam mast is robotic-welded to a steel chassis. The 24V/210Ah battery and 24V/30A charger are both included.

Features

-
  • Counterbalanced walkie stacker — forklift versatility in a walk-behind footprint, sized for small aisles and areas.
  • 130-inch lift height on a telescoping I-beam mast.
  • 3,300 lb capacity at a 24-inch load center.
  • Adjustable forks — 45.3-inch forks that adjust from 8.6 to 28.3 inches across, with 2°/5° tilt.
  • EPS electronic power steering with a belly-button reverse safety feature.
  • 24V AC drive and lift motors managed by a Curtis controller with a battery-discharge indicator.
  • Electromagnetic braking.
  • Polyurethane drive and load wheels for smooth indoor floors.
  • 24V/210Ah battery and 24V/30A charger included.
  • Steel construction with robotic welding.

What's Included

-
  • EKKO EK14-130 counterbalanced walkie stacker
  • 24V/210Ah battery
  • 24V/30A charger

Specifications

-

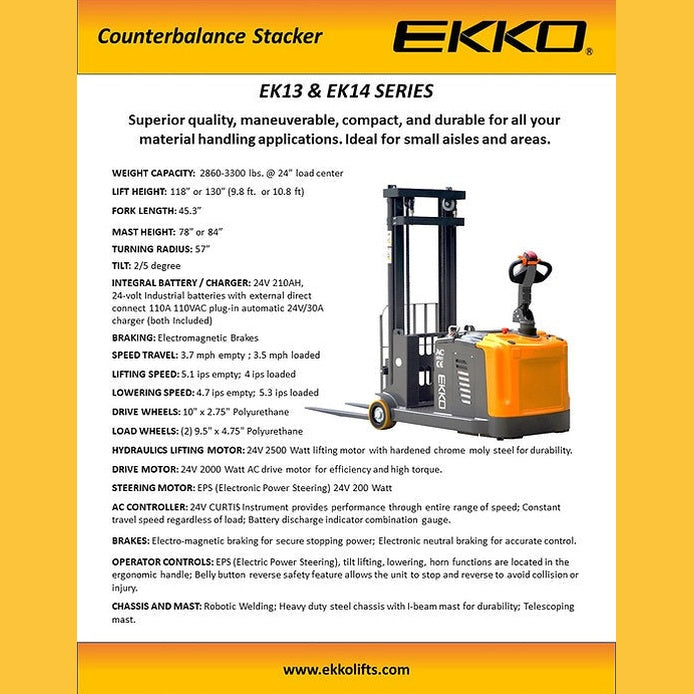

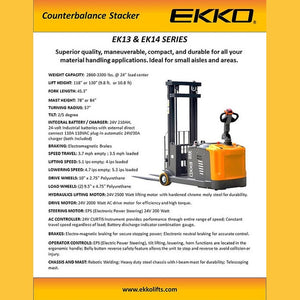

EKKO EK14-130 Counterbalanced Walkie Stacker Specifications
Model EK14-130
Type Counterbalanced walkie stacker
Operation Walkie (pedestrian)
Lift / drive Electric, 24V
Rated capacity 3,300 lb
Load center 24"
Lift height 130"
Free lift height 4"
Lowered mast height 84"
Extended mast height 167"
Mast tilt (fwd / back) 2° / 5°
Overall length 109"
Overall width 39"
Wheelbase 47"
Fork size (thickness / width / length) 1.4" / 4" / 45.3"
Fork adjustment width 8.6"–28.3"
Turning radius 57"
Gradeability (laden / unladen) 6% / 10%
Travel speed (laden / unladen) 3.5 / 3.7 mph
Lift speed (laden / unladen) 4 / 5.1 in/s
Lowering speed (laden / unladen) 5.3 / 4.7 in/s
Drive motor AC, 24V / 2,500 W
Lift motor 24V / 2,500 W
Steering motor (EPS) 24V / 200 W
Battery 24V / 210Ah (included)
Charger 24V / 30A (included)
Drive wheels Polyurethane, 10" × 2.75"
Load wheels Polyurethane, 9.5" × 4.75"
Brake Electromagnetic
Steering EPS (electronic power steering)
Controller Curtis
Service weight 3,840 lb
Construction Steel, robotic-welded

Warranty

-

The EK14-130 ships with a 3-year limited warranty from EKKO Lifts.

FAQ

-

What is the capacity and load center?

3,300 lb at a 24-inch load center.

How high does it lift?

To a maximum lift height of 130 inches (10.8 ft), with a 167-inch extended mast height and an 84-inch lowered mast height.

What is the difference between this and a straddle stacker?

The EK14-130 is counterbalanced rather than straddle-legged, so it works with closed-bottom pallets and reaches loads a straddle stacker's legs would block — closer to how a forklift handles a load.

Are the battery and charger included?

Yes. A 24V/210Ah battery and a 24V/30A charger both ship with the unit.

Is it stand-on or walk-behind?

Walk-behind — the operator walks alongside and steers from the tiller, which keeps the footprint compact for small aisles.

Documents

-

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
