EKKO EK14-118 Counterbalanced Walkie Stacker 3300 lb Cap.

EKKO EK14-118 Counterbalanced Walkie Stacker 3300 lb Cap.

SKU EK14-118

In Stock
$15,998.00 - $15,998.00
$15,998.00
$15,998.00 - $15,998.00
$15,998.00
Call/Text Us: 307-441-9566 Call Us
Live Chat With an Expert Live Chat
WINTER SALE: 5% Applied At Checkout
Winter is here with unbeatable deals + 5% off applied at checkout for all orders above $1000. Dive in now and claim the season’s best savings. Expires soon.

Description

-

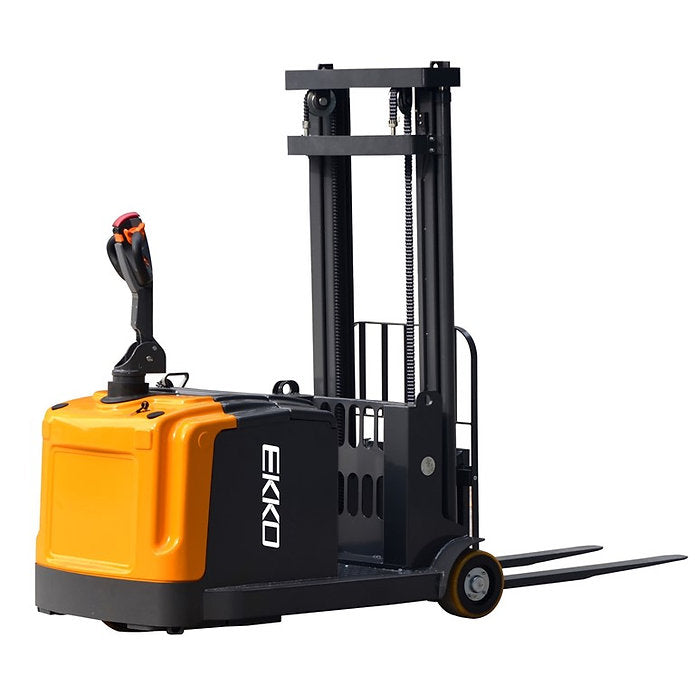

The EKKO EK14-118 is a fully powered counterbalanced walkie stacker — a walk-behind lift that handles loads like a forklift without the straddle legs of a conventional stacker. It carries 3,300 lb at a 24-inch load center and raises to 118 inches (9.83 ft), so it stacks to height while staying compact enough to walk through a stockroom.

Because it's counterbalanced rather than straddle-legged, it drives up to closed-bottom pallets, shelving, and workbenches that block a straddle stacker's outriggers. Adjustable forks span 8.6 to 28.3 inches and measure 45.3 inches long, with 2-degree forward and 5-degree backward tilt to seat and release loads cleanly.

A 24V AC drive motor and a Curtis controller run the drivetrain, with electronic power steering (EPS) on the ergonomic tiller for low-effort maneuvering. Electromagnetic braking holds it in place, polyurethane wheels suit smooth indoor concrete, and travel runs up to 3.7 mph unladen.

EKKO builds the EK14-118 from steel with robotic-welded construction, and backs it with a 3-year limited warranty.

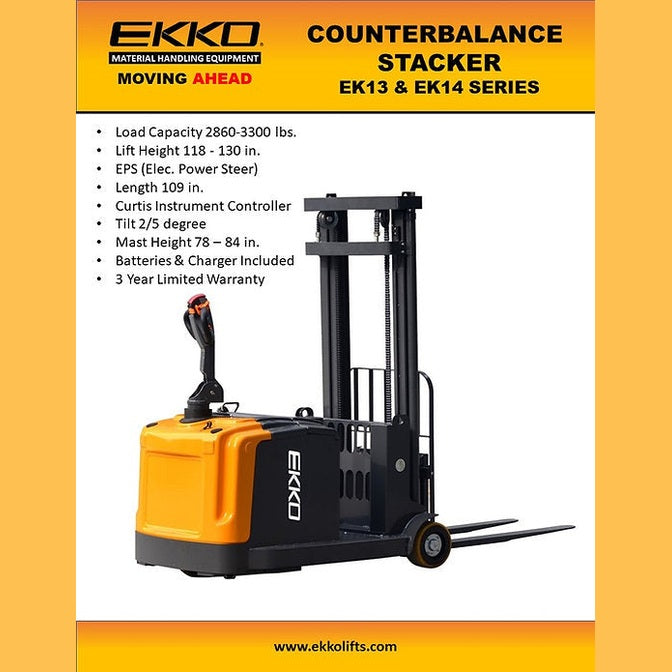

Features

-
  • Counterbalanced design — no straddle legs, drives up to closed pallets and shelving
  • 3,300 lb load capacity, 118" lift height (155" extended mast)
  • Adjustable forks, 8.6"–28.3" wide and 45.3" long, with 2° forward / 5° backward tilt
  • 24V AC drive motor and Curtis controller
  • Electronic power steering (EPS)
  • Electromagnetic braking
  • Polyurethane wheels
  • 24V/210Ah battery and 24V/30A charger included
  • Steel construction with robotic welding

What's Included

-
  • 24V/210Ah battery
  • 24V/30A charger

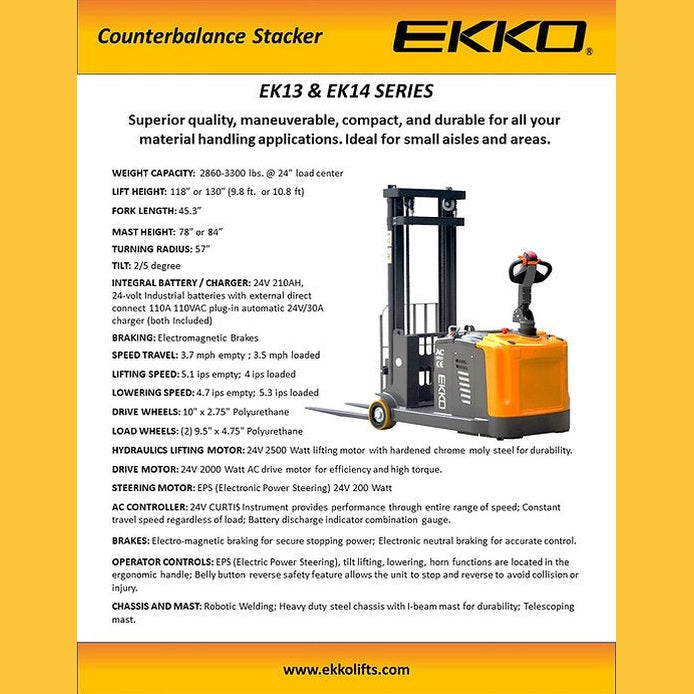

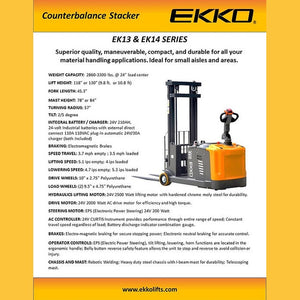

Specifications

-
EKKO EK14-118 Specifications
Load capacity 3,300 lb
Load center 24"
Maximum lift height 118" (9.83 ft)
Extended mast height 155"
Lowered mast height 78"
Free lift 4"
Mast tilt (forward / backward) 2° / 5°
Adjustable fork width 8.6"–28.3"
Fork size (thickness / width / length) 1.4" / 4" / 45.3"

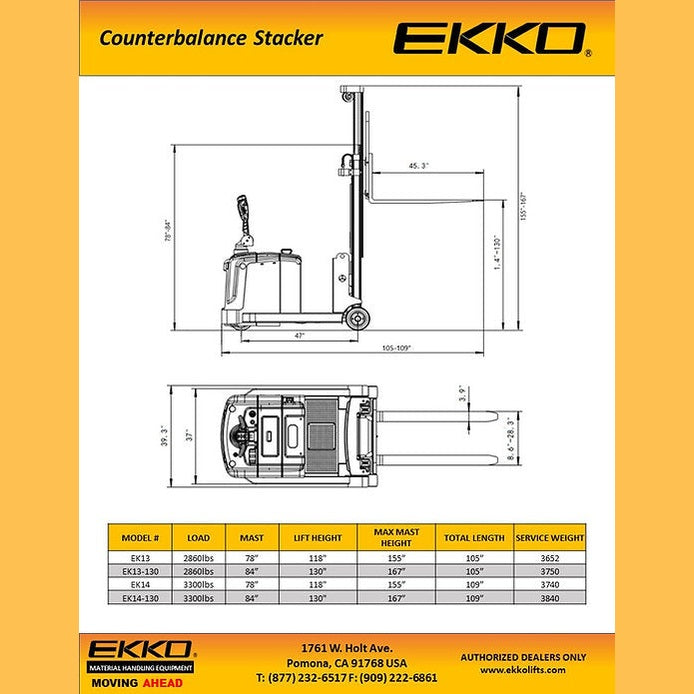

Overall length 109"
Overall width 39"
Wheelbase 47"
Turning radius 57"
Travel speed (unladen / laden) 3.7 / 3.5 mph
Lift speed (laden / unladen) 4 / 5.1 in/s
Lowering speed (laden / unladen) 5.3 / 4.7 in/s
Gradeability (laden / unladen) 6% / 10%
Drive motor 24V AC, 2,500 W
Lift motor 24V, 2,500 W
Steering motor 24V, 200 W (EPS)
Braking Electromagnetic
Battery 24V / 210Ah (side access, included)
Charger 24V / 30A (included)
Wheels Polyurethane
Service weight 3,740 lb
Warranty 3-year limited

Warranty

-

EKKO backs the EK14-118 with a 3-year limited warranty.

FAQ

-

What does “counterbalanced” mean for this stacker?

It has no straddle legs or outriggers. Like a forklift, it uses a counterweight, so it can drive straight up to closed-bottom pallets, shelving, and workbenches that a straddle stacker's legs would block.

How much does it lift, and how high?

It's rated for 3,300 lb at a 24" load center and raises to 118" (9.83 ft), with a 155" extended mast height.

Are the battery and charger included?

Yes. It comes with a 24V/210Ah battery and a 24V/30A charger.

Are the forks adjustable?

Yes. The forks adjust from 8.6" to 28.3" wide, measure 45.3" long, and tilt 2° forward and 5° backward.

What's the warranty?

A 3-year limited warranty from EKKO.

Documents

-

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
