EKKO EK13S-177 Counterbalanced Walkie Stacker SIDE-SHIFTING

Name: EKKO EK13S-177 Counterbalanced Walkie Stacker SIDE-SHIFTING
Brand: EKKO Lifts
SKU: EK13S-177
Price: 19198.0 USD
Availability: InStock

SKU EK13S-177

In Stock

$19,198.00 - $19,198.00

$19,198.00

$19,198.00 - $19,198.00

$19,198.00

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

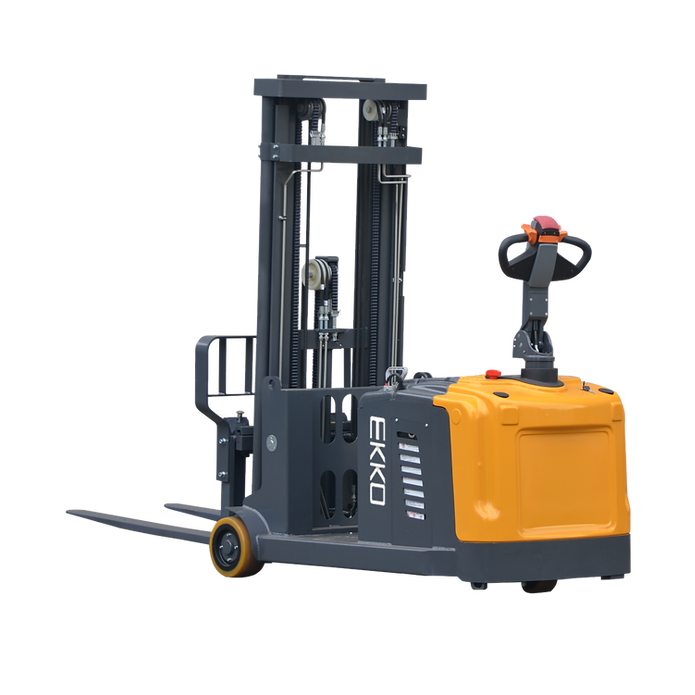

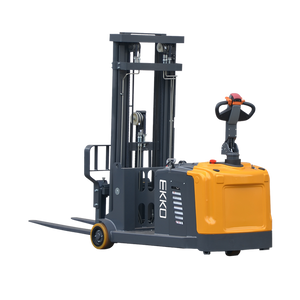

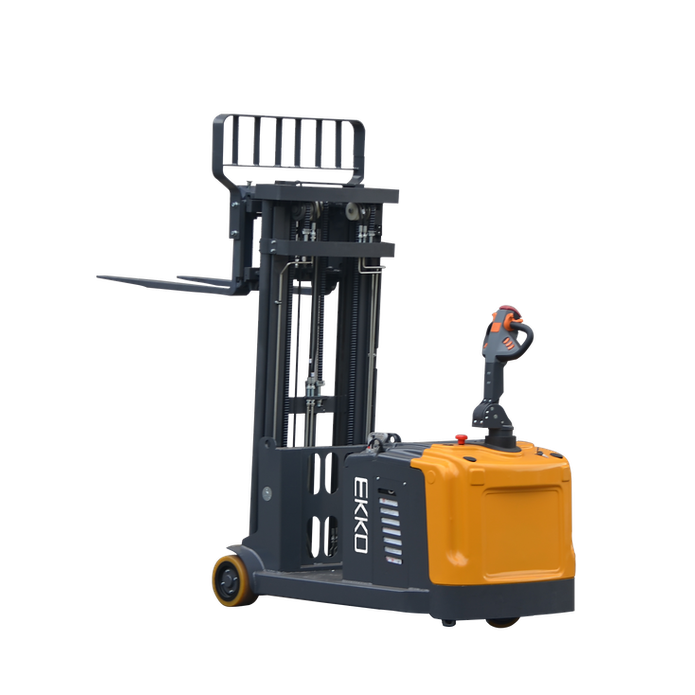

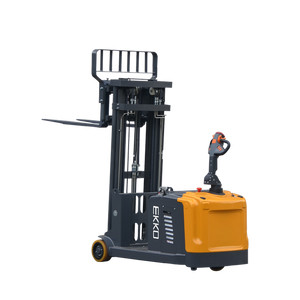

The EKKO EK13S-177 is a fully powered, counterbalanced walkie stacker with side-shifting forks, rated for 2,860 lb at a 23.6-inch load center and lifting to 177 inches (14.75 feet). It pairs forklift-style load handling with walk-behind operation, sized for loading and unloading trucks, working loading docks, and moving pallets through stock rooms, manufacturing floors, and warehouse racking.

Drive and lift are fully electric on a 24-volt system: a 2.5 kW AC drive motor and a 2.5 kW lift motor, managed by a Curtis controller, with electronic power steering (EPS) and an electromagnetic brake. The chassis is steel with robotic welding, and polyurethane wheels suit the smooth concrete of indoor warehouse floors.

Side-shifting forks move laterally so the operator can align with a pallet without repositioning the whole truck, and a 2°/5° forward/backward mast tilt secures the load in transit. The forks adjust from 8.66 to 28.35 inches for varied pallet widths, measure 45.28 inches long, and deliver 59.84 inches of free lift before the mast extends.

A 56.89-inch turning radius keeps it workable in tight layouts — EKKO rates it for a 115.95-inch aisle with 1000 × 1200 mm pallets crossways and a 120.28-inch aisle with 800 × 1200 mm pallets lengthways. The 24V/210Ah battery and a charger are included. The EK13S-177 is one of several electric machines EKKO builds for indoor material handling, and it carries a 3-year limited warranty.

Features

2,860 lb capacity at a 23.6-inch load center.

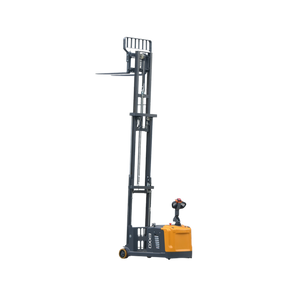

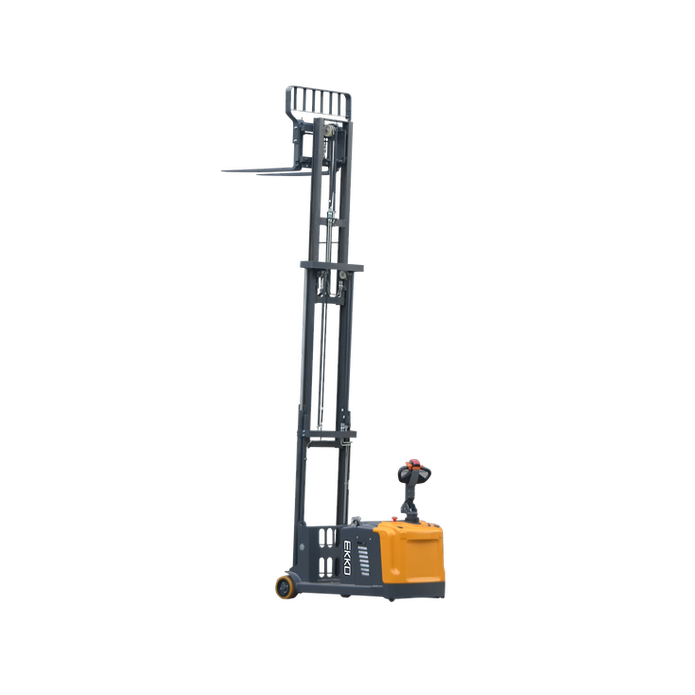

177 in (14.75 ft) raised height with 59.84 in of free lift.
Side-shifting forks for pallet alignment without repositioning.
2°/5° forward/backward mast tilt.
Adjustable forks, 8.66–28.35 in, 45.28 in long.
24V/210Ah battery and charger included.
2.5 kW AC drive motor and 2.5 kW lift motor with a Curtis controller.
Electronic power steering (EPS) and an electromagnetic brake.
Polyurethane wheels and steel construction with robotic welding.

What's Included

24V/210Ah battery
Charger

Specifications

EKKO EK13S-177 Specifications
Model	EK13S-177
Drive type	Electric
Operation	Walk-behind (walkie)
Load capacity	2,860 lb
Load center	23.6"
Service weight (with battery)	4,070 lb
Lift height	177.17" (14.75 ft)
Free lift height	59.84"
Lowered mast height	78.74"
Extended mast height	214.53"
Mast tilt (forward / backward)	2° / 5°
Fork size (thickness / width / length)	1.38" / 3.94" / 45.28"
Fork width (adjustable)	8.66"–28.35"
Overall length	109"
Body length	62.52"
Overall width	39.29"
Wheelbase	46.81"
Tiller handle height (operating)	43.5"–56.69"
Ground clearance under mast	3.54"
Minimum ground clearance	3.39"
Turning radius	56.89"
Aisle width (1000 × 1200 mm pallet, crossways)	115.95"
Aisle width (800 × 1200 mm pallet, lengthways)	120.28"
Driving speed (load / unload)	5.2 / 5.5 km/h (3.2 / 3.4 mph)
Lifting speed (load / unload)	100 / 120 mm/s
Lowering speed (load / unload)	136 / 120 mm/s
Max gradeability (load / unload)	6% / 8%
Drive motor	2.5 kW (AC)
Lift motor	2.5 kW
Brake	Electromagnetic
Steering	Electronic power steering (EPS)
Battery	24V / 210Ah
Battery weight	460 lb (±5%)
Driving wheel size	9.84" dia. × 2.95"
Bearing wheel size	9.84" dia. × 4.72"
Tires	Polyurethane
Noise level	70 dB(A)

Warranty

The EK13S-177 is covered by a 3-year limited warranty.

FAQ

What does "counterbalanced" mean for this stacker?

It carries a counterweight in the body rather than relying on straddle legs, so it can approach and lift loads directly. Combined with walk-behind operation, it handles forklift-style tasks in a compact footprint.

What does the side-shift do?

Side-shifting forks move laterally so the operator can line up with a pallet without repositioning the whole truck — useful in tight racking and on docks.

Are the battery and charger included?

Yes. The stacker ships with its 24V/210Ah battery and a charger.

What aisle width does it need?

EKKO rates it for a 115.95-inch aisle with 1000 × 1200 mm pallets (crossways) and a 120.28-inch aisle with 800 × 1200 mm pallets (lengthways), with a 56.89-inch turning radius. Confirm against your own rack layout before ordering.

Documents

Manual, brochure, and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
