EKKO EK10S-138LI Counterbalanced Walkie Stacker 2200 lb Cap.

Name: EKKO EK10S-138LI Counterbalanced Walkie Stacker 2200 lb Cap.
Brand: EKKO Lifts
SKU: EK10S-138LI
Price: 14758.0 USD
Availability: InStock

SKU EK10S-138LI

In Stock

$14,758.00 - $14,758.00

$14,758.00

$14,758.00 - $14,758.00

$14,758.00

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

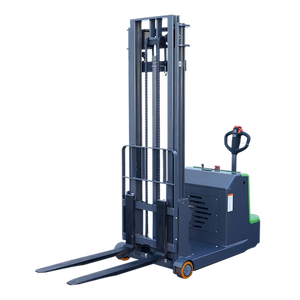

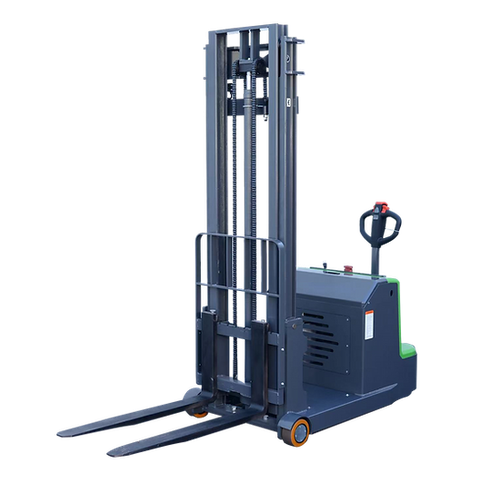

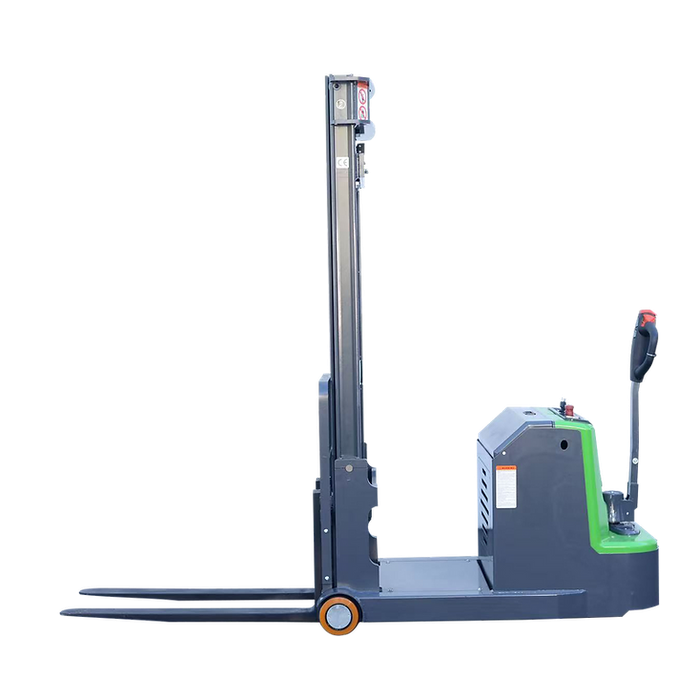

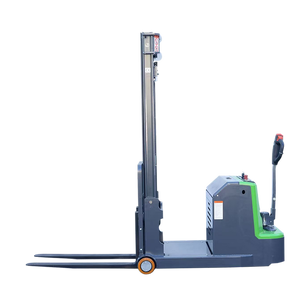

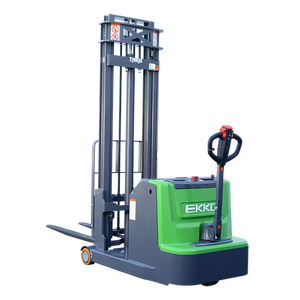

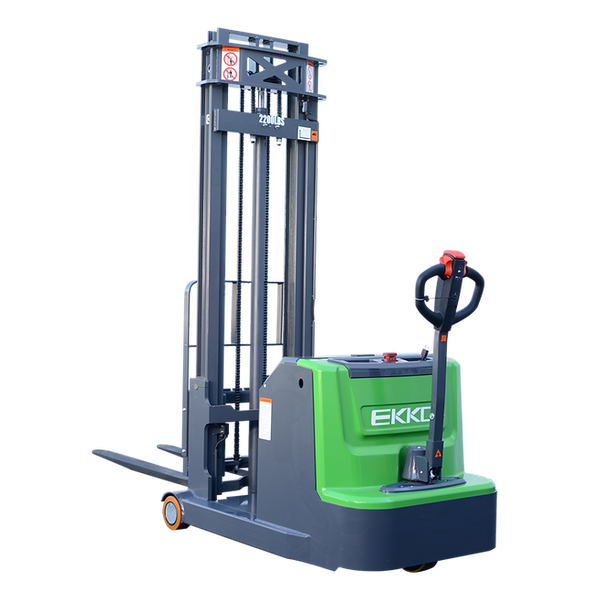

The EKKO EK10S-138LI is a counterbalanced walkie stacker rated to lift 2,200 lb at a 24-inch load center, to a 138-inch (11.5 ft) maximum height. Because it is counterbalanced rather than straddle-legged, the forks reach the load directly — so it handles closed-bottom pallets, stillages, and odd loads that a straddle stacker cannot get under.

The footprint stays compact: 99 inches long, 34.5 inches wide, with a 53-inch turning radius for tight aisles and trailer work. The operator walks behind on a tiller with an ergonomic handle and thumb controls for travel and lift.

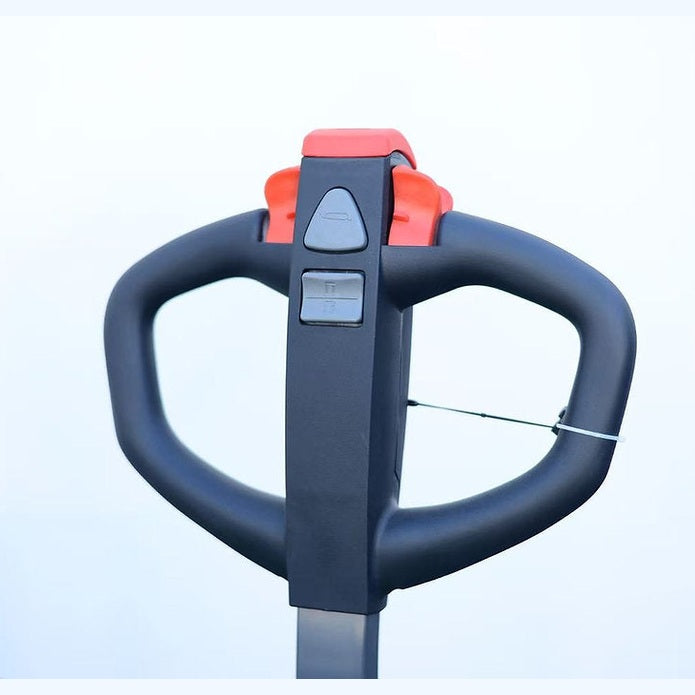

Tiller handle head with butterfly grip, thumb controls, and red reverse button — Ergonomic tiller head with thumb travel and lift controls

Power is a 24V / 100Ah lithium-ion battery with a built-in charger — no external charger and no separate charging footprint, so the stacker plugs into a standard outlet and returns to work. A 0.9 kW drive motor moves the truck and a 2.2 kW lift motor runs the mast, on polyurethane tires suited to smooth indoor floors.

Built by EKKO Lifts, a US-based manufacturer of Class I–V material handling equipment, the EK10S-138LI ships with its lithium battery and charger included and is backed by a 3-year limited warranty.

Features

Counterbalanced design — no straddle legs, so forks reach the load directly
2,200 lb capacity at a 24-inch load center; 138-inch lift height
Compact footprint: 99 in long, 34.5 in wide, 53-in turning radius
24V / 100Ah lithium-ion battery with built-in charger
0.9 kW drive motor and 2.2 kW lift motor
Pedestrian tiller with ergonomic handle and thumb controls
Polyurethane tires

What's Included

24V / 100Ah lithium-ion battery
Built-in 24V / 30A charger

Specifications

EKKO EK10S-138LI Specifications
Model	EK10S-138LI
Lift type	Electric
Drive type	Electric
Load capacity	2,200 lb
Load center	24 in
Lift height	138 in
Lowered fork height	2.36 in
Lowered mast height	89.25 in
Mast extended height	137.48 in
Overall length	99 in
Overall width	34.5 in
Fork dimensions (thickness / width / length)	1.4 / 3.9 / 42.1 in
Turning radius	53 in
Drive motor	0.9 kW
Lift motor (S3 10%)	2.2 kW
Battery	24V / 100Ah lithium-ion
Charger	24V / 30A (built-in)
Drive control	DC speed control
Tires	Polyurethane
Service weight	3,597 lb
Warranty	3-year limited

Warranty

The EK10S-138LI is backed by a 3-year limited warranty from EKKO.

FAQ

How high does the EK10S-138LI lift, and how much can it carry?

It lifts to a 138-inch (11.5 ft) maximum height and is rated for 2,200 lb at a 24-inch load center.

What does "counterbalanced" mean for this stacker?

It has no straddle legs out in front of the forks. The forks reach the load directly, so the stacker handles closed-bottom pallets and loads a straddle stacker cannot get under.

Does it need an external charger?

No. The charger is built into the truck — a 24V / 30A charger powering a 24V / 100Ah lithium-ion battery, both included.

How tight a space does it work in?

The truck is 99 inches long and 34.5 inches wide, with a 53-inch turning radius. Confirm against your own aisle dimensions before ordering.

What warranty is included?

EKKO covers the EK10S-138LI with a 3-year limited warranty.

Documents

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
