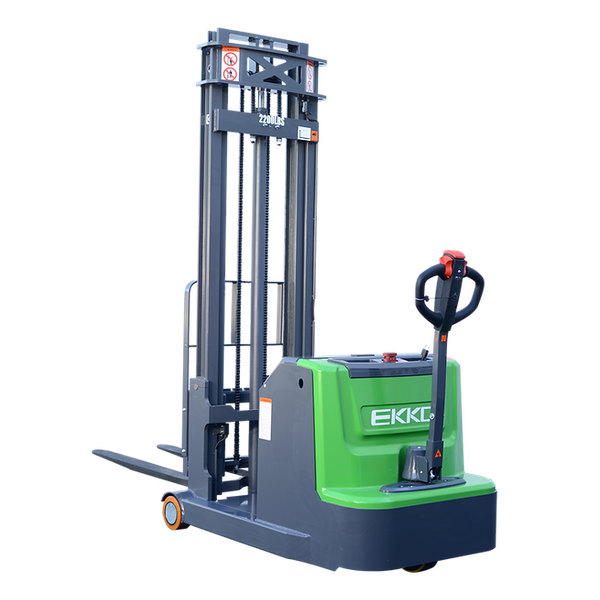

EKKO EK10S-118LI Counterbalanced Walkie Stacker 2200 lb Cap.

The EKKO EK10S-118Li is a counterbalanced walkie stacker that lifts 2,200 lb to a height of 118 inches at a 24-inch load center. The operator walks behind on a tiller handle, and a counterweight in the chassis replaces the straddle outrigger legs found on most pedestrian stackers.

That counterbalanced design is the point: with no straddle legs in the way, the EK10S can pick up closed-bottom pallets, stillages, and roll cages that a straddle stacker can't, and it can drive straight up to shelving and stacked loads. At 34.5 inches of overall width with a 53-inch turning radius, it stays workable in tight aisles while handling loads a straddle unit would have to leave behind.

It runs on a 24V / 100Ah lithium-ion battery with a built-in onboard charger, so there is no separate charger to find floor space for — the unit plugs in and recharges directly. A 0.9 kW drive motor and a 2.2 kW lift motor are managed by DC speed control, and the polyurethane wheels suit smooth indoor floors. EKKO Lifts builds material handling equipment across electric, LPG, and diesel lines, and this stacker sits in its lithium-powered range.

• Counterbalanced design — no straddle legs, so it handles closed-bottom pallets, stillages, and roll cages
• Lifts 2,200 lb to a 118-inch height at a 24-inch load center
• Built-in onboard charger (24V / 30A) — no separate external charger needed
• 24V / 100Ah lithium-ion battery
• 0.9 kW drive motor and 2.2 kW lift motor with DC speed control

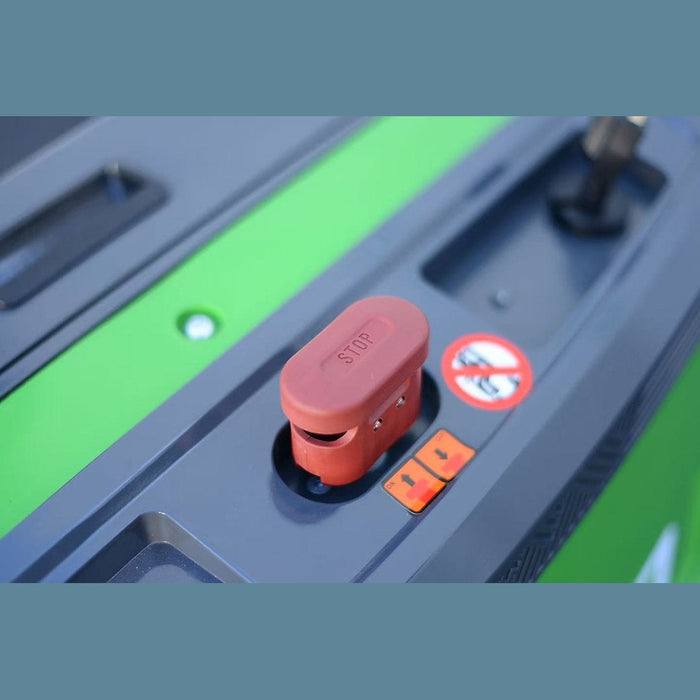

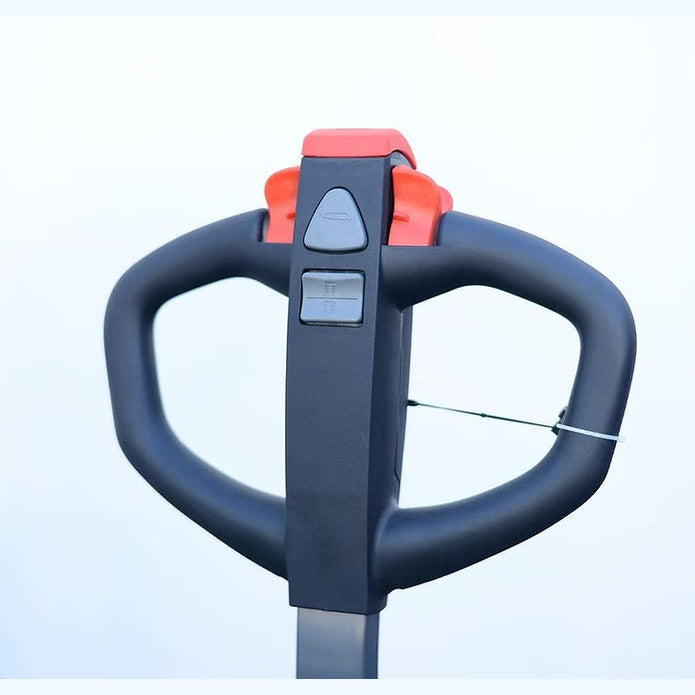

• Walk-behind tiller handle with ergonomic controls
• Polyurethane wheels for smooth indoor floors
• 34.5-inch overall width with a 53-inch turning radius for tight aisles

• 24V / 100Ah lithium-ion battery, installed
• Built-in onboard charger — 24V / 30A

The EK10S-118Li carries a 3-year limited warranty.

How much can it lift, and how high?

2,200 lb at a 24-inch load center, to a lifting height of 118 inches.

What does "counterbalanced" mean for me?

Instead of straddle outrigger legs, the EK10S uses a counterweight in the chassis. That lets it handle closed-bottom pallets, stillages, and roll cages that a straddle stacker cannot, and drive straight up to shelving and stacked loads.

Is it ride-on or walk-behind?

Walk-behind. The operator steers from a tiller handle and walks with the truck — there is no riding platform.

Do I need a separate charger?

No. The charger is built into the unit (24V / 30A) and the 24V / 100Ah lithium-ion battery is included, so there is no external charger to house or wire.

How tight a space does it work in?

Overall width is 34.5 inches with a 53-inch turning radius, and the lowered mast height is 79.53 inches for door and trailer clearance. For a right-angle stacking aisle figure specific to your layout, contact us before ordering.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
