EKKO EK07S Counterbalance Walkie Stacker 1550lbs. Cap.

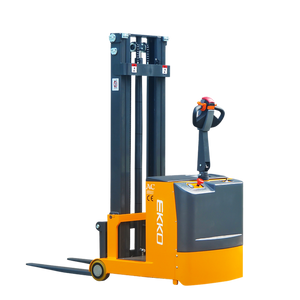

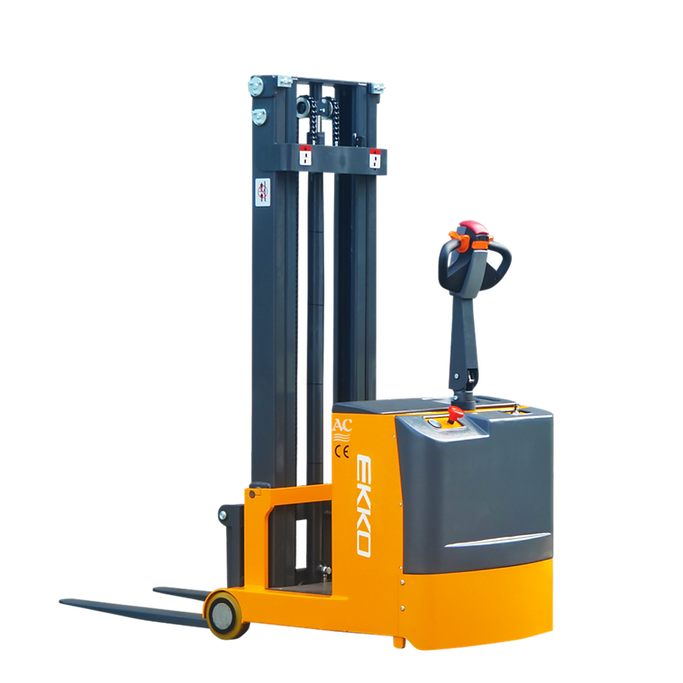

The EKKO EK07S is a fully powered counterbalance walkie stacker built to move and lift palletized loads where a sit-down forklift is too large and a straddle stacker can't reach. It carries 1,550 lbs at a 20-inch load center and raises forks to 118 inches (9.83 ft), combining forklift-style reach with the compact, walk-behind footprint of a stacker. It suits loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and general warehousing.

Because the design is counterbalanced rather than straddle-legged, the EK07S works close to racking without front outrigger arms in the way and handles closed-bottom and non-standard pallets. Both drive and lift are 24-volt electric, and the unit ships ready to work with its battery and on-board charger included.

• Counterbalanced design — works like a forklift without straddle legs, for closer rack access and non-standard pallet handling.

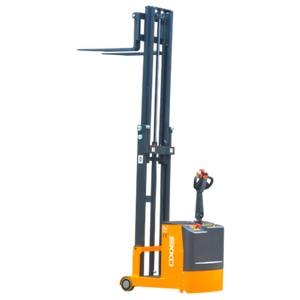

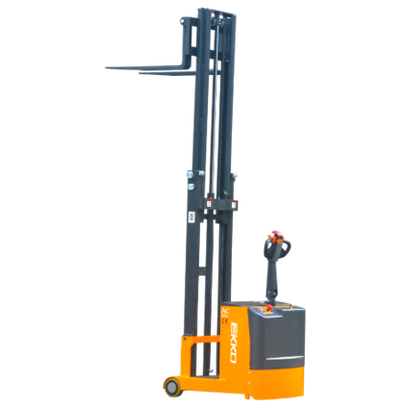

• Telescoping steel mast — heavy-duty I-beam mast lifts to 118 inches, with a lowered height of 81.1 inches for travel through standard doorways.
• 24V AC drive motor — alternating-current drive (0.75 kW) for smooth travel, with a separate 1.5 kW motor powering the hydraulic lift.
• Electromagnetic braking with belly-button reverse — electromagnetic brakes hold the unit on stop, and a belly-button reverse switch on the handle backs it away to help avoid pinning the operator.
• Ergonomic tiller handle — lift, lower, and horn controls are integrated into the steering handle.
• Polyurethane wheels — 7 in x 2.5 in drive wheel and 9.5 in x 4.75 in load wheels for smooth indoor floors.
• Robotic-welded steel chassis — robotic welding and steel construction for repeatable joint strength.
• Adjustable forks — fork width adjusts from 8.3 to 25.2 inches to fit varied pallet sizes; forks are 42 inches long.

• 24V / 120Ah battery
• On-board 24V / 20A automatic charger

The EK07S arrives with both the battery and the on-board charger, so no separate power purchase is required before the stacker can run.

The EK07S is covered by a 3-year limited warranty.

Can the EK07S charge from a standard wall outlet?

Yes. The included on-board charger is a 24V / 20A automatic unit that plugs into a standard 110V AC outlet, so the stacker recharges without a dedicated charging station.

What floor surfaces is it built for?

The EK07S runs on polyurethane drive and load wheels, well suited to the smooth, flat concrete of warehouses, loading docks, and stock rooms.

Does the operator ride on the stacker?

No. The EK07S is a walk-behind (walkie) stacker — the operator walks with the unit and controls it from the ergonomic tiller handle.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
