EKKO EH15TH Moving Mast Walkie Reach Truck 3300 lb Cap., 216" Height

Name: EKKO EH15TH Moving Mast Walkie Reach Truck 3300 lb Cap., 216" Height
Brand: EKKO Lifts
SKU: EH15TH
Price: 25499.0 USD
Availability: InStock

SKU EH15TH

In Stock

$25,499.00 - $25,499.00

$25,499.00

$25,499.00 - $25,499.00

$25,499.00

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

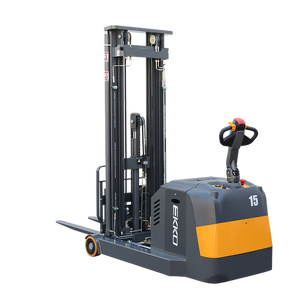

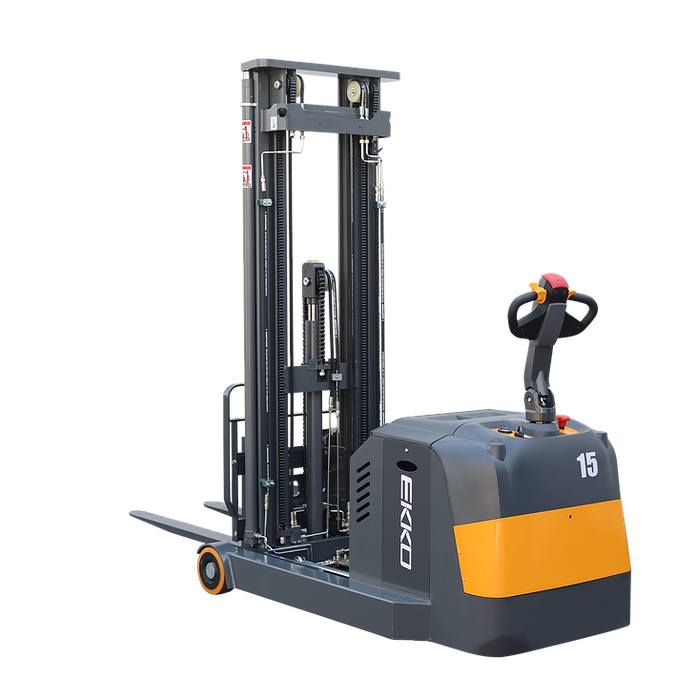

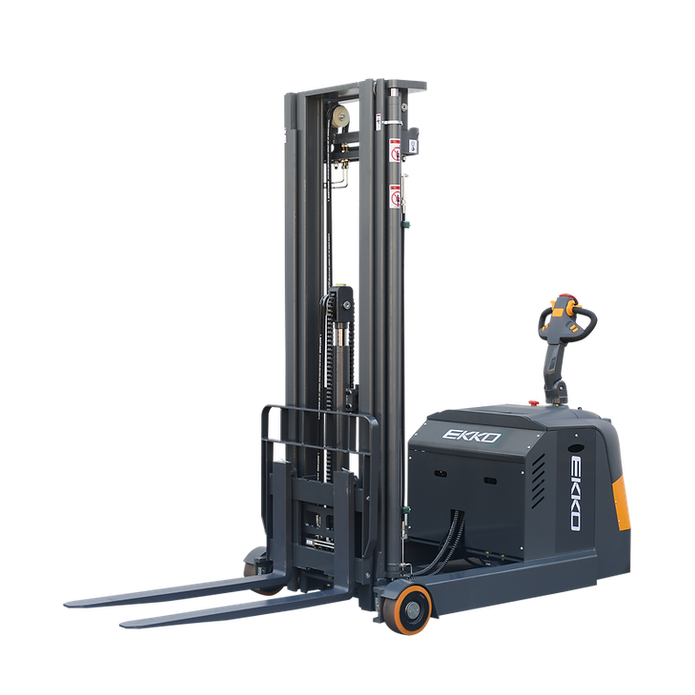

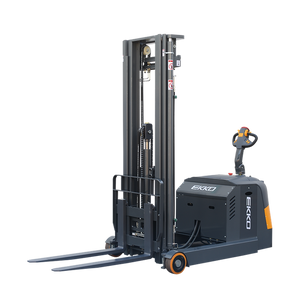

The EKKO EH15TH is a moving-mast walkie reach truck rated to lift 3,300 lb at a 24-inch load center, with a triple mast that raises loads to a 216-inch (18 ft) maximum height. The operator walks behind on a tiller, so the truck pairs the reach of a reach truck with the footprint and simplicity of a walkie stacker — handling loading docks, stock rooms, manufacturing floors, and warehouse racking.

The moving mast reaches the forks 19.7 inches forward, enough to set and retrieve a pallet single-deep in racking. A generous 68-inch free lift raises the forks within the mast before it extends, which helps when stacking under low door headers or working inside trailers. At 41 inches wide with a 67-inch turning radius, the truck is built to work in tight aisles.

Drive and lift are fully electric on a 24V / 270Ah battery. A 2.5 kW AC drive motor moves the truck and a 3,000 W lift motor runs the mast, both managed by a Curtis instrument controller. Electronic power steering (EPS) eases turns, and the truck rides on polyurethane wheels suited to smooth indoor floors.

Built by EKKO Lifts, a US-based manufacturer of Class I–V material handling equipment, the EH15TH ships with its battery and charger included and is backed by a 3-year limited warranty.

Features

Triple mast with a 216-inch maximum lift height and 68-inch free lift
Moving mast reaches the forks 19.7 inches forward for single-deep rack storage
Pedestrian tiller control with ergonomic handle
24V AC drive motor (2.5 kW) and 3,000 W lift motor
Curtis instrument controller
Electronic power steering (EPS)
Polyurethane wheels
24V / 270Ah battery and charger included
Steel construction with robotic welding

What's Included

24V / 270Ah battery
24V / 50A charger

Specifications

EKKO EH15TH Specifications
Model	EH15TH
Lift type	Electric
Drive type	Electric
Load capacity	3,300 lb
Load center	24 in
Lift height	216 in
Free lift	68 in
Lowered mast height	97.3 in
Reach distance	19.7 in
Overall length	111.6 in
Overall width	41 in
Turning radius	67 in
Fork size (thickness / width)	1.4 / 4 in
Drive motor	24V / 2.5 kW (AC)
Lift motor	24V / 3,000 W
Steering motor (EPS)	24V / 200 W
Battery	24V / 270Ah (included)
Charger	24V / 50A
Service weight	4,915 lb
Wheels	Polyurethane
Warranty	3-year limited

Warranty

The EH15TH is backed by a 3-year limited warranty from EKKO.

FAQ

How high does the EH15TH lift, and how much can it carry?

The triple mast raises to a maximum height of 216 inches (18 ft), and the truck is rated for 3,300 lb at a 24-inch load center.

How is it operated?

It is a walkie (pedestrian) truck — the operator walks behind and steers with a tiller handle, with electronic power steering to ease turns.

How far does the mast reach forward?

The moving mast reaches the forks 19.7 inches forward, enough to set or retrieve a pallet single-deep in racking.

Does it come with a battery and charger?

Yes. A 24V / 270Ah battery and a 24V / 50A charger are included.

What warranty is included?

EKKO covers the EH15TH with a 3-year limited warranty.

Documents

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
