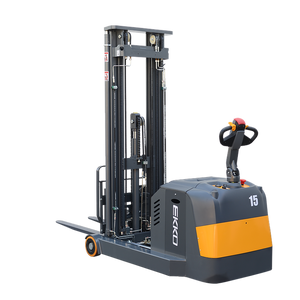

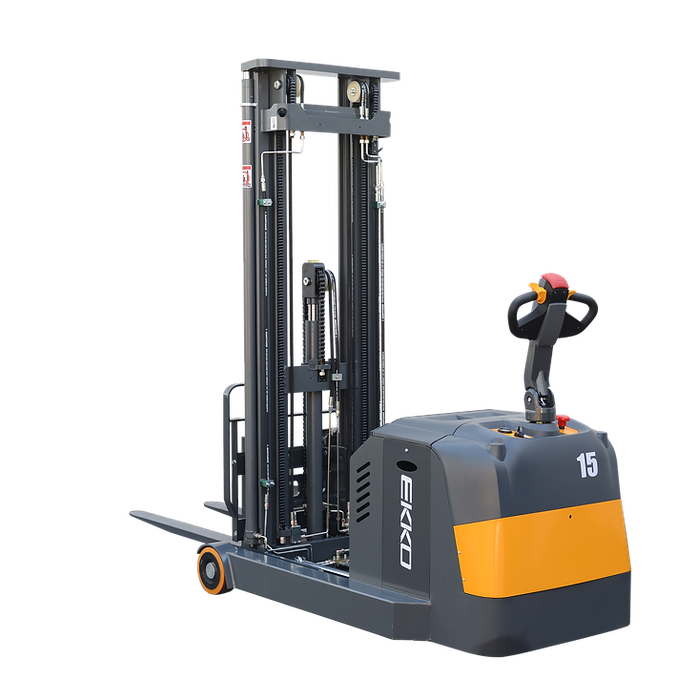

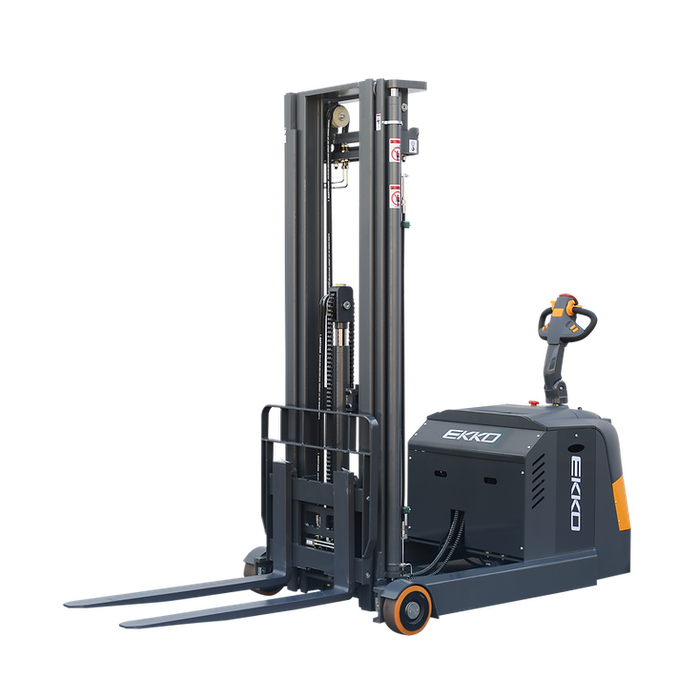

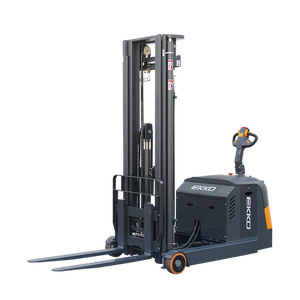

EKKO EH15T Moving Mast Walkie Reach Truck 3300lbs. Cap., 138" Height

Name: EKKO EH15T Moving Mast Walkie Reach Truck 3300lbs. Cap., 138" Height
Brand: EKKO Lifts
SKU: EH15T
Price: 23999.0 USD
Availability: InStock

SKU EH15T

In Stock

$23,999.00 - $23,999.00

$23,999.00

$23,999.00 - $23,999.00

$23,999.00

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

The EKKO EH15T is a moving-mast walkie reach truck that lifts 3,300 lb to a raised height of 138 inches at a 24-inch load center. The operator walks behind on an ergonomic tiller rather than riding, which keeps the truck compact and well suited to loading and unloading trucks, working loading docks, and moving stock through stock rooms, manufacturing floors, and warehouse racking.

The mast travels forward to reach 19.7 inches into racking, so the operator can place and retrieve pallets from the aisle without repositioning the whole truck. At 41 inches of overall width with a 67-inch turning radius, it works in tighter spaces than a sit-down or stand-up counterbalance truck needs, and the 93.3-inch lowered mast height clears standard doorways and trailer openings.

Power comes from a 24V electric system — a 24V / 2.5 kW AC drive motor and a 24V / 3 kW lifting motor, managed by a Curtis controller, with electronic power steering (EPS) for low-effort tiller control. The 24V / 270Ah battery and a matching charger are both included, so the truck arrives ready to put into service. EKKO Lifts builds material handling equipment across electric, LPG, and diesel lines, and this walkie reach truck sits in its electric range.

Features

Moving-mast reach mechanism with 19.7 inches of forward travel for racking work from the aisle
Lifts to a 138-inch raised height at a 24-inch load center
Walk-behind ergonomic tiller handle and controls
24V / 2.5 kW AC drive motor and 24V / 3 kW lifting motor
Curtis controller
Electronic power steering (EPS) for low-effort steering in tight aisles
24V / 270Ah battery with charger included
Polyurethane wheels for smooth indoor floors
Steel construction with robotic welding

What's Included

24V / 270Ah battery, installed
Matching charger — 24V / 40A

Specifications

EKKO EH15T Walkie Reach Truck Specifications
Model	EH15T
Lift	Electric
Drive	Electric
Load capacity	3,300 lb
Load center distance	24 in
Lifting height	138 in
Lowered mast height	93.3 in
Overall length	111.6 in
Overall width	41 in
Reach distance	19.7 in
Turning radius	67 in
Fork thickness	1.4 in
Fork width	4 in
Driving motor	24V / 2.5 kW AC
Lifting motor	24V / 3 kW
Steering motor	24V / 0.2 kW
Electronic power steering (EPS)	Yes
Controller	Curtis
Battery	24V / 270Ah
Charger	24V / 40A
Wheels	Polyurethane
Service weight	4,200 lb

Warranty

The EH15T carries a 3-year limited warranty.

FAQ

How much can it lift, and how high?

3,300 lb at a 24-inch load center, to a raised height of 138 inches.

Is it ride-on or walk-behind?

Walk-behind. The operator steers from an ergonomic tiller handle and walks with the truck — there is no riding platform.

Are the battery and charger included?

Yes. The truck ships with a 24V / 270Ah battery and a matching 24V / 40A charger.

How tight a space does it work in?

Overall width is 41 inches with a 67-inch turning radius, and the lowered mast height is 93.3 inches for door and trailer clearance. For a right-angle stacking aisle figure specific to your layout, contact us before ordering.

What does it weigh?

Service weight is 4,200 lb. Confirm your floor and dock ratings support that load before delivery.

Documents

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
