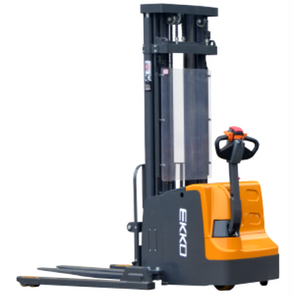

EKKO EB20E Full Powered Straddle Stacker 4400 lb Cap., 177" Height

The EKKO EB20E is a powered electric walkie straddle stacker built for 4,400 lb material handling work at loading docks, in stock rooms, on manufacturing floors, and across general warehousing. EKKO designed the truck to bring together the load-handling envelope of a small forklift, the lift height of a reach truck, and the walk-behind format of a stacker — one chassis covers truck loading and unloading, rack put-aways up to 177 inches, and short-distance pallet moves across the floor.

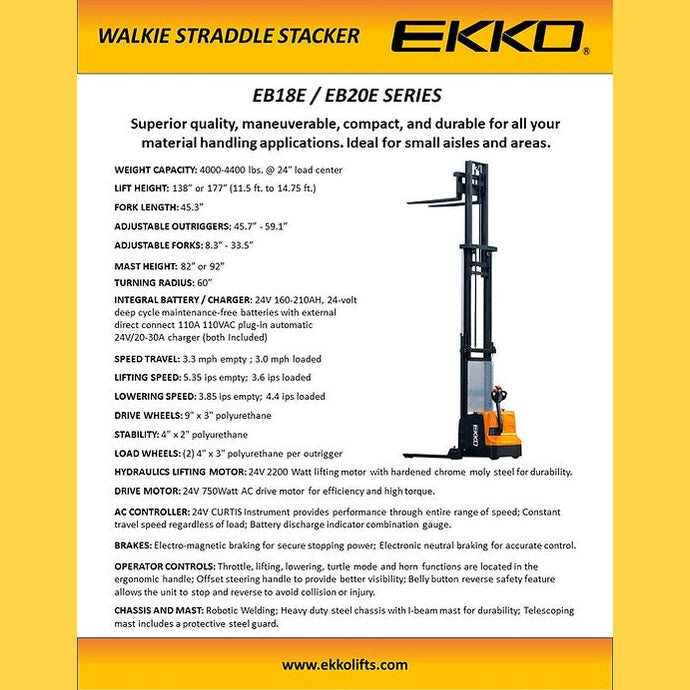

Capacity is 4,400 lb at a 24-inch load center, lifted by a 3,000-watt lifting motor on a triple-stage telescoping mast to a maximum fork height of 177 inches (14.75 feet). A 24V AC drive motor handles travel, paired with a Curtis Instruments AC controller that holds constant travel speed regardless of load and provides battery-discharge indication on the combination gauge. The 24V/210Ah deep-cycle maintenance-free battery and the 24V/30A automatic plug-in charger are both included — the truck arrives ready to work with no separate battery or charger to source.

Straddle legs adjust from 45.5 to 59.1 inches to accept different pallet footprints, and the fork carriage adjusts from 9.8 to 31.5 inches. Robotic welding builds the I-beam mast and heavy-duty steel chassis; the telescoping mast carries a protective steel guard. Polyurethane drive, stability, and outrigger load wheels are sized for smooth indoor concrete — clean warehouse aisles, distribution stock rooms, and manufacturing floors. The truck is not built for gravel, broken pavement, or outdoor yard surfaces; verify your floor before specifying.

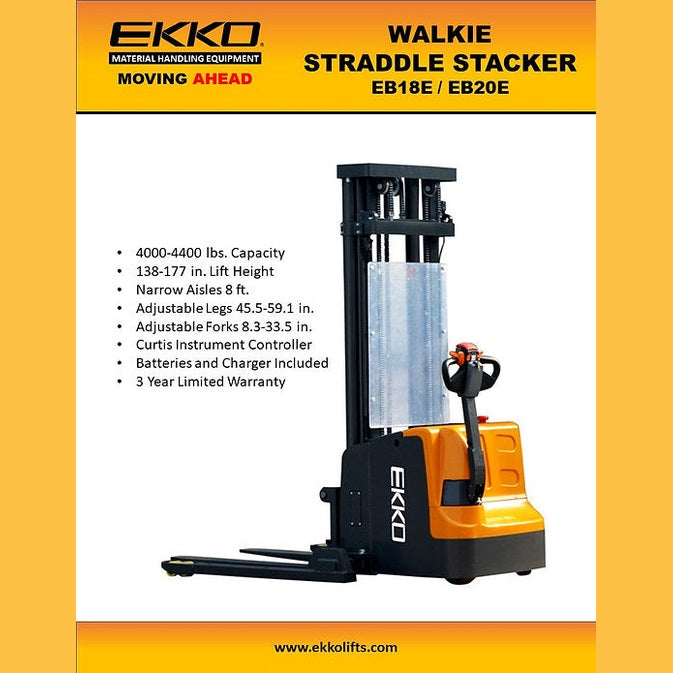

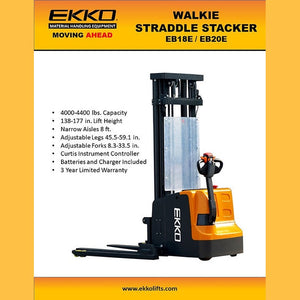

• 4,400 lb load capacity at a 24-inch load center
• 177-inch maximum fork height (14.75 ft.) on a triple-stage telescoping mast
• 24V AC drive motor (1,500 W) paired with a 3,000 W lifting motor
• Curtis Instruments AC controller — constant travel speed regardless of load, with a combination battery-discharge indicator gauge
• 24V/210Ah deep-cycle maintenance-free battery, included
• 24V/30A automatic plug-in charger, included (110 V AC direct-connect)
• Adjustable straddle legs (45.5–59.1″) and adjustable fork width (9.8–31.5″)
• Lifting motor with hardened chrome-moly steel cylinder rod for durability
• Electro-magnetic braking with electronic neutral braking for accurate stopping control
• Belly-button reverse safety feature on the tiller handle — stops and reverses the unit to avoid pinning the operator
• Throttle, lift, lower, turtle (slow-speed) mode, and horn integrated into the offset ergonomic steering handle
• Polyurethane drive wheels (9″ × 3″), stability wheels (4″ × 2″), and two load wheels (4″ × 3″) per outrigger
• Robotic-welded heavy-duty steel chassis with I-beam mast and protective telescoping mast guard
• Designed for narrow-aisle operation down to 8 ft

The EB20E is built for indoor and flat-surface use — warehouses, distribution stock rooms, manufacturing floors, and loading docks. The 198-inch extended mast height and 85-inch lowered mast height set the vertical envelope: confirm doorway and dock clearance against the 85-inch lowered height, and confirm overhead clearance under racking and roller doors against the 198-inch extended height before delivery. Service weight is 2,800 lb — verify your floor rating, mezzanine, or dock plate against that figure. Operating aisle width is 8 ft for narrow-aisle work; turning radius is 60 inches.

• EKKO EB20E walkie straddle stacker
• 24V / 210 Ah deep-cycle maintenance-free battery
• 24V / 30 A 110 V AC automatic plug-in charger

The EB20E is backed by a 3-year limited warranty from EKKO.

What is the rated capacity, and at what load center?

4,400 pounds at a 24-inch load center.

How high will the forks lift?

177 inches (14.75 feet) maximum fork height on a triple-stage telescoping mast. The fully extended mast reaches 198 inches — confirm overhead clearance in your work area before delivery.

Are the battery and charger included?

Yes — both are included. The truck ships with a 24V / 210 Ah deep-cycle maintenance-free battery and a 24V / 30 A automatic plug-in charger that runs on standard 110 V AC. No separate battery or charging station to source.

How narrow an aisle can it operate in?

Down to 8 feet for narrow-aisle work, with a 60-inch turning radius. Maximum overall width is 61 inches; measure your tightest aisle and dock approach against those numbers.

What pallet sizes does it handle?

Straddle legs adjust from 45.5 to 59.1 inches and fork width adjusts from 9.8 to 31.5 inches, accepting a range of pallet footprints. Fork length is 45.3 inches.

Is the drive AC or DC?

AC — a 24V 1,500 W AC drive motor controlled by a Curtis Instruments AC controller, which holds constant travel speed regardless of load.

What safety features are on the operator handle?

A belly-button reverse on the tiller handle stops and reverses the unit if the operator is pinned against it. Electro-magnetic braking holds the truck at rest and brakes during travel; electronic neutral braking modulates the stop. Throttle, lift, lower, turtle-mode (slow speed), and horn controls are integrated into the offset ergonomic handle for visibility around the load.

What surfaces and environments is it built for?

Polyurethane drive, stability, and outrigger load wheels are sized for smooth indoor flooring — loading docks, stock rooms, manufacturing floors, and warehouse aisles. Not intended for gravel, broken concrete, or uneven outdoor terrain.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
