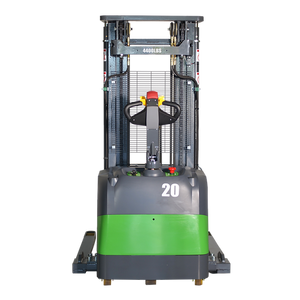

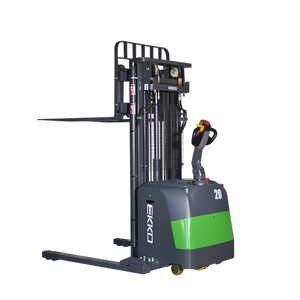

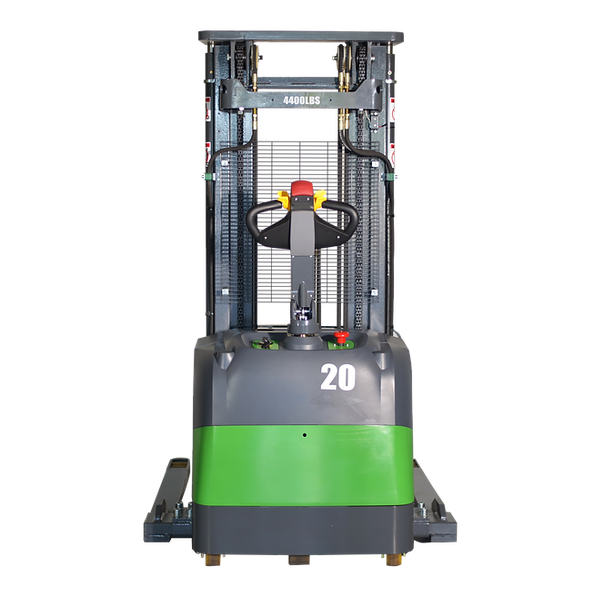

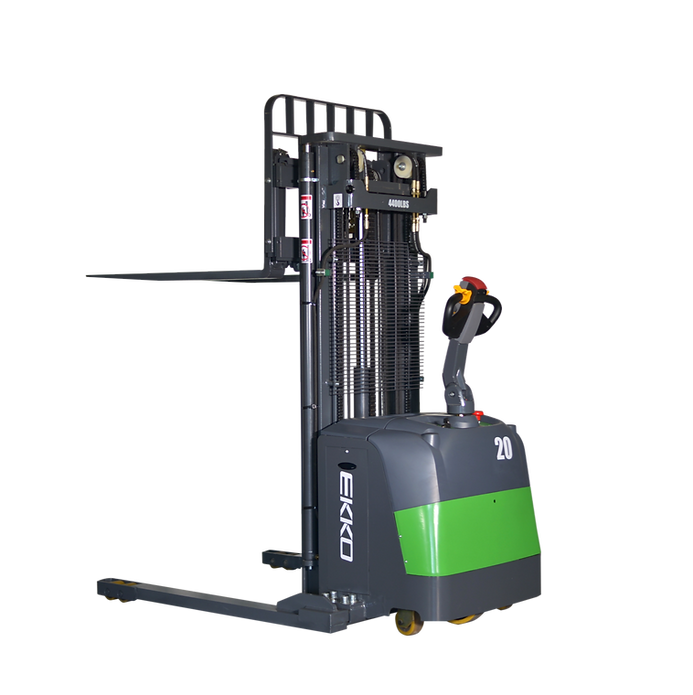

EKKO EB20CS-216Li Lithium Electric Straddle Stacker 4400 lb Cap., 216" Height

The EKKO EB20CS-216Li is a lithium-electric straddle stacker built to handle 4,400 lb loads up to a 216-inch (18 ft) lift height on a triple mast. It combines the reach of a counterbalanced forklift, the maneuverability of a reach truck, and the operator footprint of a walkie stacker — sized for loading and unloading trucks, working loading docks, moving pallets through stock rooms, feeding manufacturing floors, and putting goods away into high warehouse racking.

Side shift, an adjustable fork carriage (8.7–32.1 inches overall), and adjustable straddle legs (39.8–55.5 inches) keep one truck working across pallet sizes and load placements without swapping equipment. Steel chassis with robotic welding, polyurethane wheels, and a Curtis controller driving a 24V AC drive motor anchor the chassis hardware. The 24V/150Ah lithium battery and matched 24V/50A charger ship with the truck.

• 4,400 lb rated capacity at a 24-inch load center — sized for full-pallet handling in distribution, manufacturing, and warehouse operations.

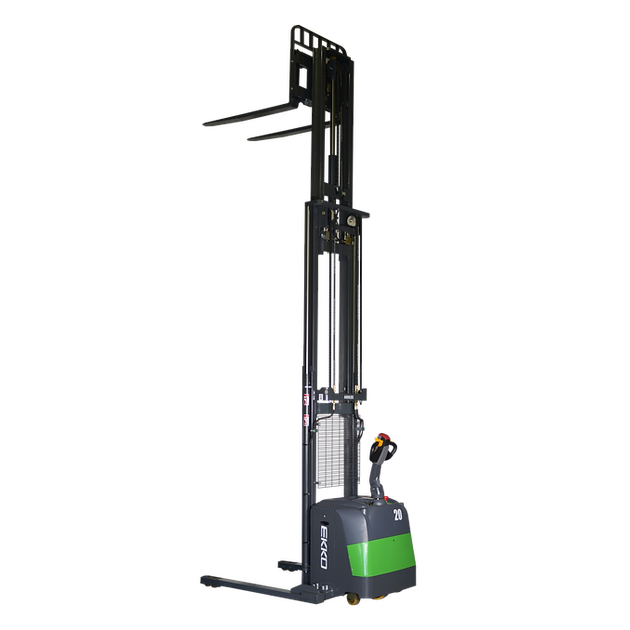

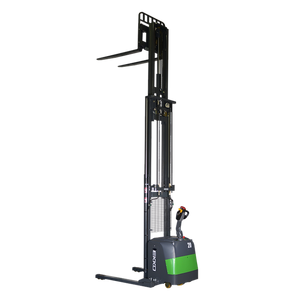

• 216-inch (18 ft) lift height on a triple mast — reaches upper rack levels that double-mast stackers can’t.
• Side shift — fine pallet placement without re-positioning the whole truck.
• Adjustable fork carriage (8.7–32.1 in overall) — handles narrow specialty pallets through wide GMA pallets on the same truck.
• Adjustable straddle legs (39.8–55.5 in) — straddle outside the load to accommodate pallet footprints a reach truck can’t take.
• 24V / 150Ah lithium-ion battery, included — opportunity-charge friendly, no watering, no equalization cycle, and runs flat across the charge curve.
• Curtis controller and 24V AC drive motor — AC drive delivers smoother low-speed control and tighter regenerative behavior than brushed DC.
• 3,000 W lift motor / 1,500 W drive motor — matched to the 4,400 lb capacity and 216-inch lift height.
• Polyurethane wheels — non-marking on smooth concrete floors; low rolling resistance.
• Robotic-welded steel construction — consistent weld geometry across the chassis.

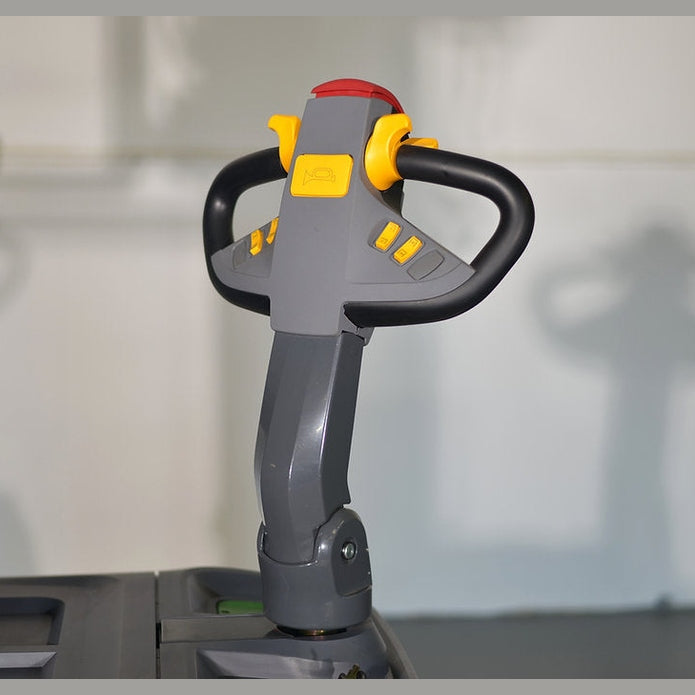

• Ergonomic tiller head — red emergency reverse on top, twin butterfly throttles, horn button, and a compact button cluster within thumb reach.

The EB20CS-216Li is built for indoor material-handling environments where a sit-down counterbalanced forklift is more truck than the aisle allows and a walkie stacker doesn’t reach high enough:

• Loading and unloading trucks at the dock
• Loading dock staging and pallet positioning
• Stock rooms and back-of-house storage
• Manufacturing floors feeding production lines
• Warehouse putaway and rack work up to 216 inches (18 ft) of lift

Mast lowered height is 92.9 inches, so the truck transits between zones with the mast down without unstacking. Turning radius is 65 inches and the truck sits on polyurethane wheels with 1.2-inch minimum ground clearance — built for flat, smooth indoor concrete.

• EKKO EB20CS-216Li straddle stacker
• 24V / 150Ah lithium-ion battery
• 24V / 50A charger

What is the rated lift capacity?

4,400 lb at a 24-inch load center.

How high does it lift?

216 inches (18 ft) on a triple mast. Mast lowered height is 92.9 inches for transit.

Does it include a battery and charger?

Yes. A 24V / 150Ah lithium-ion battery and a matched 24V / 50A charger ship with the truck.

Does it have side shift?

Yes — side shift is standard on this model.

What is the fork adjustment range?

The overall fork carriage adjusts between 8.7 and 32.1 inches; each fork is 45.3 inches long and 3.9 inches wide.

What is the straddle leg adjustment range?

39.8 to 55.5 inches — covers GMA pallets, oversized skids, and odd-footprint loads on the same truck.

What controller and drive motor does it use?

A Curtis controller drives a 24V AC drive motor (1,500 W) and a 3,000 W lift motor.

What are the wheels made of?

Polyurethane — non-marking on smooth concrete and lower rolling resistance than rubber.

What is the turning radius and ground clearance?

65-inch turning radius and 1.2-inch minimum ground clearance. The truck is engineered for flat, smooth indoor floors.

How much does it weigh?

Service weight is 3,130 lb — factor this into floor-load and freight planning.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
