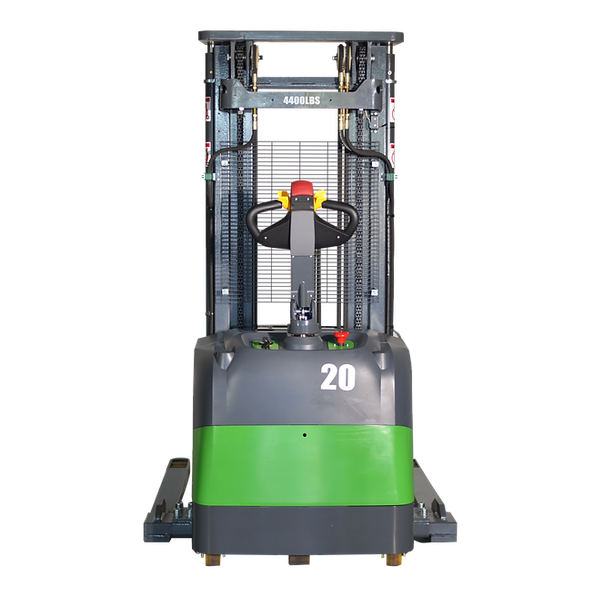

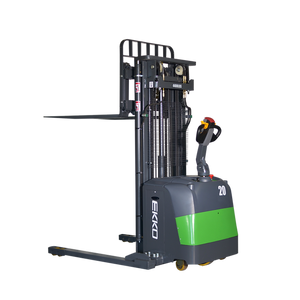

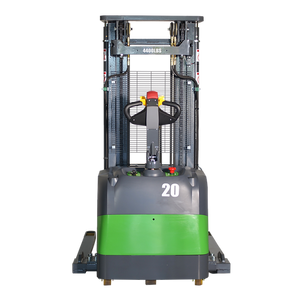

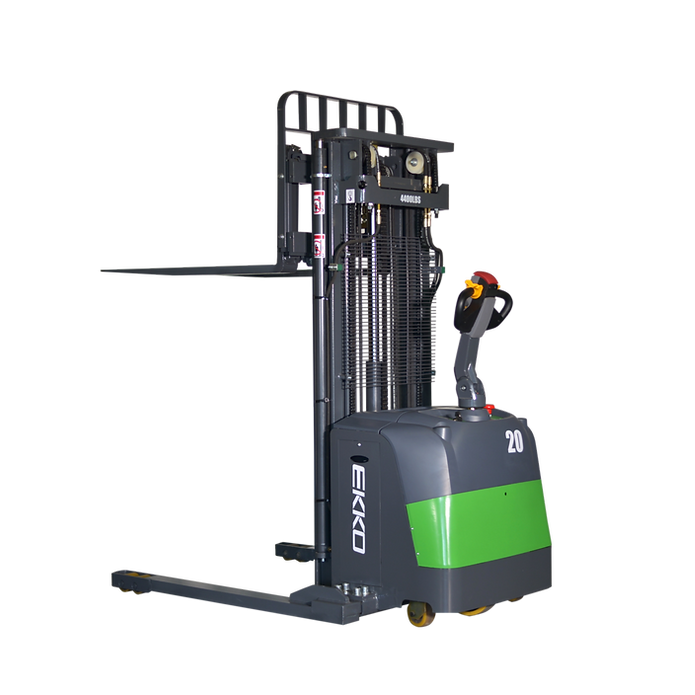

EKKO EB20CS-177LI Full Powered Straddle Stacker 4400 lb Cap., 177" Height

The EKKO EB20CS-177LI is a fully electric, lithium-powered straddle stacker rated for 4,400 lb at a 24-inch load center, with a triple-mast design that lifts up to 177 inches (14.75 ft). It is built for loading and unloading trucks, working loading docks, moving pallets between stock rooms and manufacturing floors, and stacking inventory in warehouse racking — the working envelope where a counterbalanced forklift is more truck than the aisle allows and a walkie pallet jack can't reach.

Steel-frame construction with robotic welding handles directional changes, impacts, and the daily abuse of mixed-shift operation. A Curtis Controller manages the 24-volt drive system; the 24V AC drive motor (1,500 W) and 24V lift motor (3,000 W) operate from a 24V / 150Ah lithium battery, with polyurethane wheels for smooth-floor traction and an ergonomic operator handle for full-shift use.

• 4,400 lb load capacity at a 24-inch load center

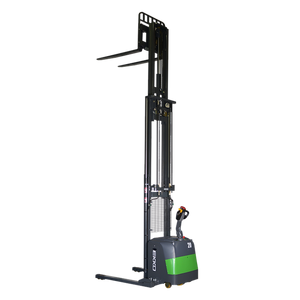

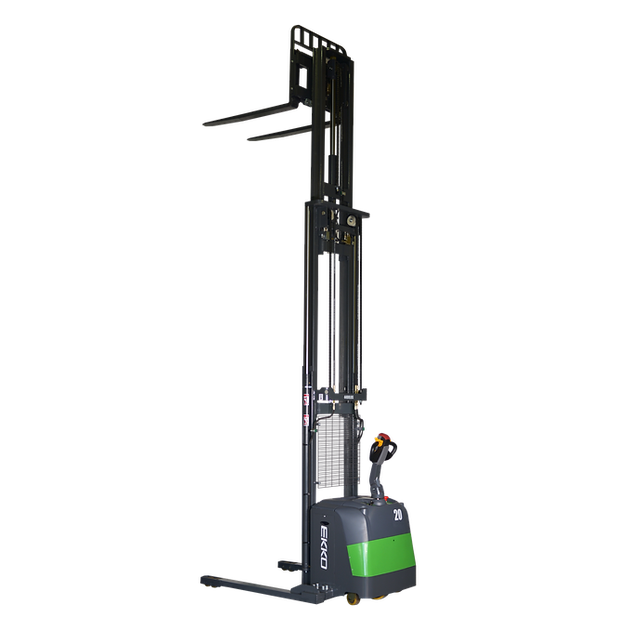

• 177-inch maximum lift height (14.75 ft) with a triple-mast design
• Side-shift functionality on the mast carriage
• Adjustable forks from 8.7 to 32.1 inches in spread
• Adjustable straddle base from 39.8 to 55.5 inches between outrigger legs
• 45.3-inch fork length
• Curtis Controller for drive and lift management
• 24-volt AC drive motor (1,500 W)
• 24-volt lift motor (3,000 W)
• 24V / 150Ah lithium battery, with charger included
• Polyurethane wheels for smooth-floor traction

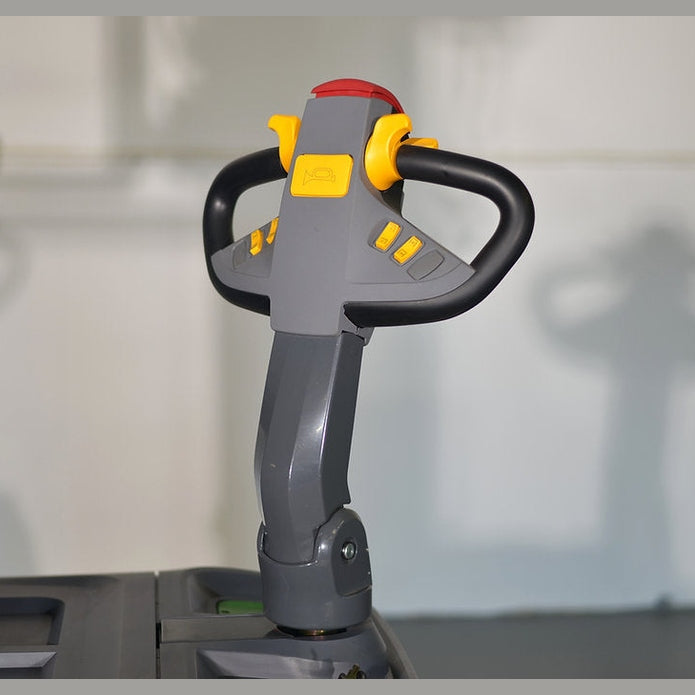

• Ergonomic operator handle and controls
• Steel construction with robotic welding

The forks adjust from 8.7 to 32.1 inches in spread, the straddle base adjusts from 39.8 to 55.5 inches between outriggers, and the mast carriage side-shifts — so the same truck handles standard 40-inch GMA pallets, narrower euro pallets, and wider non-standard loads without changing forks. A 65-inch turning radius and an 81.9-inch overall length let it work in tighter aisles than a counterbalanced forklift while reaching racking that walkie stackers can't. Polyurethane wheels are sized for smooth indoor concrete — loading docks, stock rooms, manufacturing floors, and warehousing.

• 24V / 150Ah lithium battery, installed
• 24V / 50A charger

What is the rated load capacity?

4,400 lb at a 24-inch load center.

How high will the forks lift?

177 inches (14.75 ft) at maximum extension. The triple mast lowers to 79.3 inches for transport and overhead clearance.

Does it side-shift?

Yes, the mast carriage has side-shift functionality. EKKO's published source for this model does not state a specific travel distance — ask Forklift King for clarification before purchase if the exact side-shift travel matters for the application.

What pallet widths will it handle?

The forks adjust from 8.7 to 32.1 inches and the straddle base adjusts from 39.8 to 55.5 inches between outriggers. Standard 40-inch GMA pallets, narrower euro pallets, and wider non-standard loads all fit without changing forks.

What is the turning radius?

65 inches. Overall length is 81.9 inches.

What ships with the unit?

The 24V / 150Ah lithium battery is installed and a 24V / 50A charger is included.
