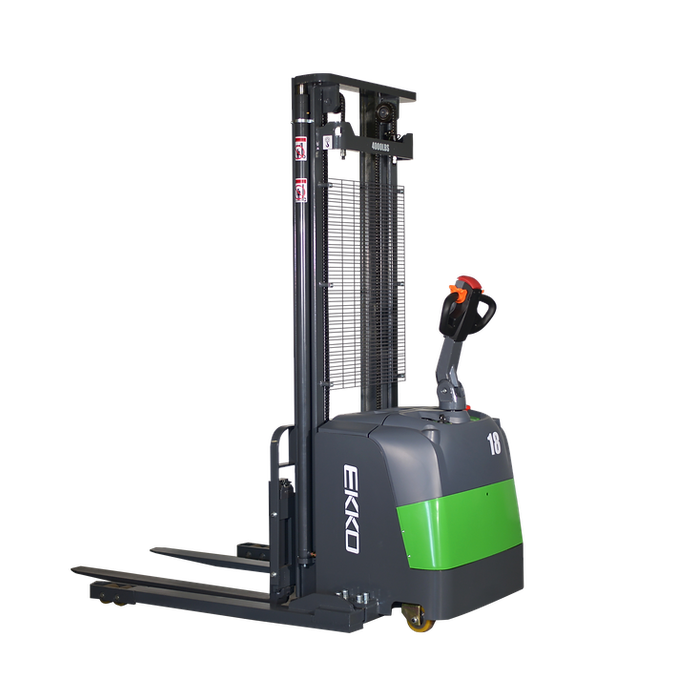

EKKO EB18C-145Li Lithium Straddle Stacker 4000 lb Cap., 145"Lift

The EKKO EB18C-145Li is a 24-volt lithium-ion electric straddle stacker built for 4,000 lb material handling work in loading docks, stock rooms, manufacturing floors, and general warehousing. The design combines the maneuverability of a forklift, the lift height of a reach truck, and the compact footprint of a walkie stacker — a single walk-behind operator can stage pallets up to 145 inches without committing to a larger ride-on truck.

The straddle outrigger legs adjust from 39.76 to 55.55 inches to fit a range of pallet widths and load profiles. A 24V / 90Ah lithium-ion battery, a 24V / 30A charger, a 3,000 W lifting motor, and a 750 W drive motor make up the powertrain. Steel chassis and mast construction carry the working envelope.

• Heavy-duty 4,000 lb capacity at a 24-inch load center for demanding warehouse tasks

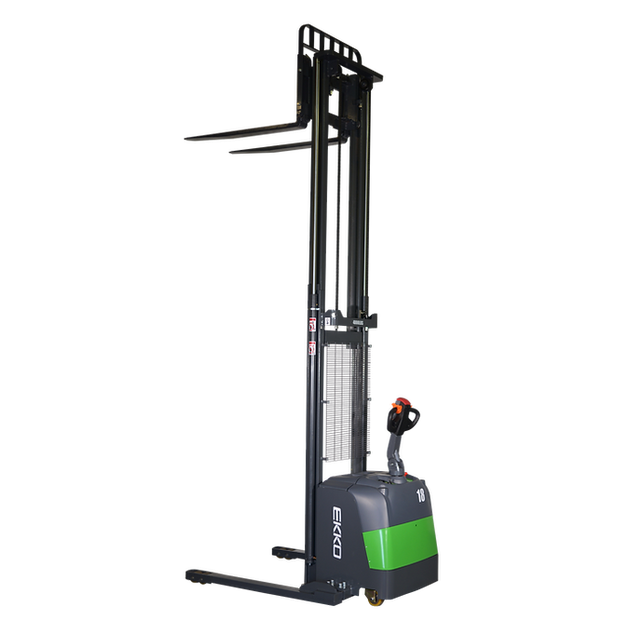

• 145-inch lift height for upper-rack pallet placement
• 24V / 90Ah lithium-ion battery with a 24V / 30A charger — supplier positions the lithium pack for long runtime, fast charging, and zero maintenance versus lead-acid

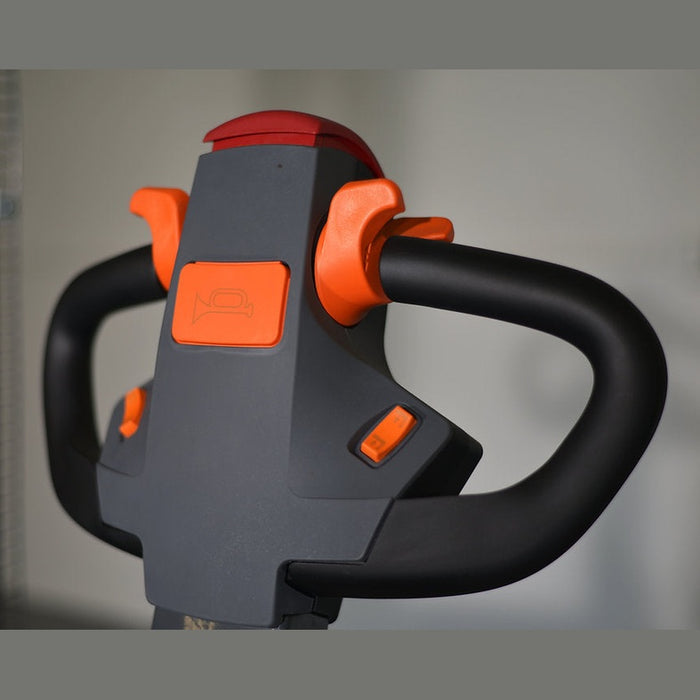

• Smart control handle with ergonomic operator interface for precise low-effort operation
• 3,000 W lifting motor
• 750 W drive motor
• Steel chassis and mast construction
• Straddle outrigger legs, 39.76–55.55 in, adjustable to load profile
• Adjustable fork spread, 8.7–32 in, for standard and irregular pallet widths
• 2.56-inch lowered fork height for floor-level pallet entry
• 62.83-inch turning radius for stockroom and tight-aisle work
• 93.19-inch lowered mast height for low-clearance doorway and overhead transit

Supplier content positions the EB18C-145Li for:

• Loading and unloading trucks
• Loading docks
• Stock rooms
• Manufacturing floors
• General warehousing

Before specifying, confirm aisle widths against the 62.83-inch turning radius and 61-inch maximum overall width, confirm doorway and overhead clearances against the 93.19-inch lowered mast height, and confirm the working pallet width fits the 8.7–32-inch fork spread and 39.76–55.55-inch outrigger-leg adjustment range.

What is the rated capacity and load center?

4,000 lb at a 24-inch load center.

How high will the EB18C-145Li lift a pallet?

Maximum raised height is 145 inches. Extended mast height is 174.8 inches; lowered mast height is 93.19 inches.

What battery does it run on, and what charger does it ship with?

The EB18C-145Li runs on a 24V / 90Ah lithium-ion battery. Supplier specifies a 24V / 30A charger.

What are the overall footprint and turning radius for aisle planning?

Overall length is 76.18 inches, maximum overall width is 61 inches, and the turning radius is 62.83 inches. Outrigger legs adjust from 39.76 to 55.55 inches, so the working footprint depends on the pallet width the legs are set to.

What is the lowered mast height for doorway and overhead clearance?

93.19 inches lowered. Confirm against the lowest doorway, mezzanine, or overhead obstruction on the operator path between work zones.

What does the truck weigh for floor-load planning?

Service weight is 2,380 lb. Confirm against mezzanine, lift, dock plate, or trailer-floor load ratings on the operator path.

What lifting and driving motor power does it carry?

3,000 W lifting motor and 750 W drive motor.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
