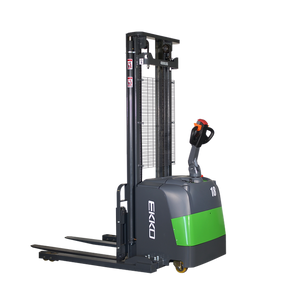

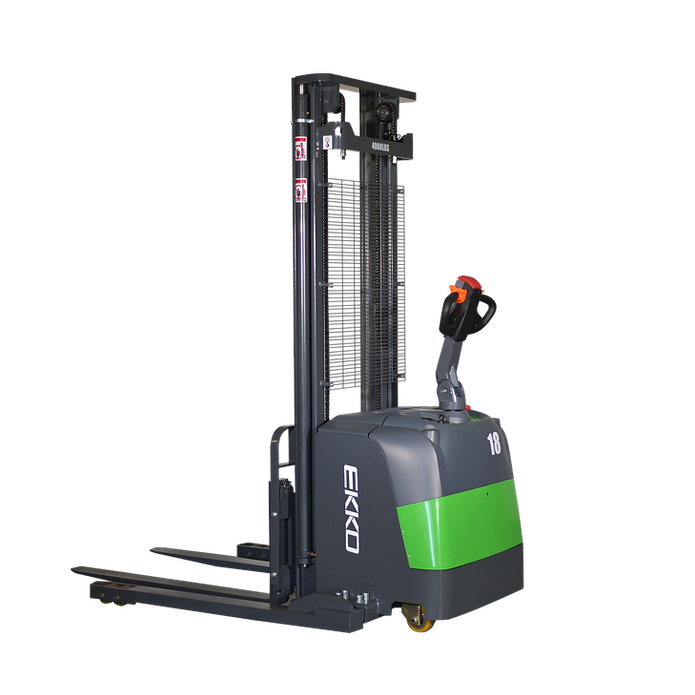

EKKO EB18C-138Li Lithium Straddle Stacker 4000 lb Cap., 138" lift

Name: EKKO EB18C-138Li Lithium Straddle Stacker 4000 lb Cap., 138" lift
Brand: EKKO Lifts
SKU: EB18C-138Li
Price: 12478.0 USD
Availability: InStock

SKU EB18C-138Li

In Stock

$12,478.00 - $12,478.00

$12,478.00

$12,478.00 - $12,478.00

$12,478.00

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

The EKKO EB18C-138Li is a 4,000 lb capacity lithium-powered straddle stacker built for loading and unloading trucks, stocking shelves, moving pallets through manufacturing aisles, and placing loads at warehouse rack heights. The straddle-leg chassis keeps the load forward of the operator on adjustable outriggers, which clear most pallet and skid footprints without an attachment swap — outer leg width adjusts from 39.76 to 55.55 inches and fork spread from 8.7 to 32 inches.

Power comes from a 24V/90Ah lithium-ion battery paired with a 24V/30A charger, with the maintenance-free runtime profile lithium-ion equipment is selected for in mixed-shift warehouse environments. A 3,000 W lifting motor and 750 W drive motor handle the lifting and travel; the chassis is built from steel for stability through directional changes, impact, and the repeated dock-to-aisle transitions typical of straddle-stacker work.

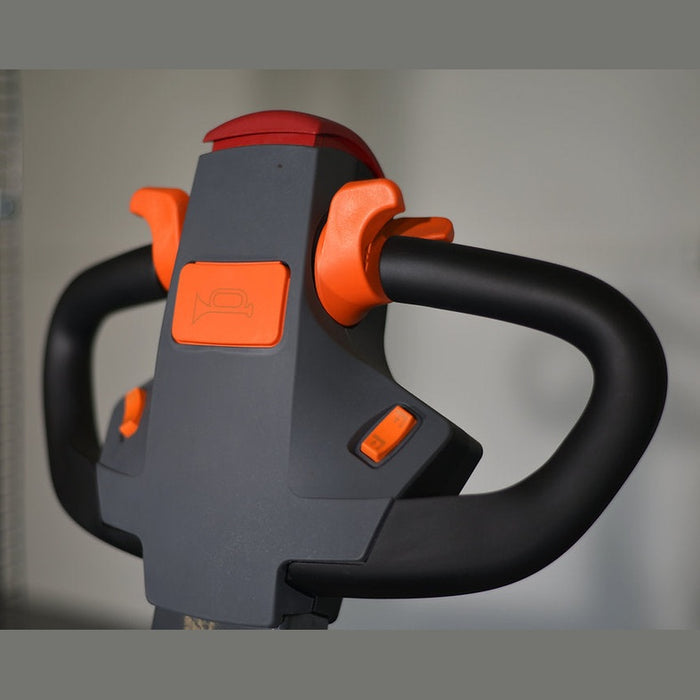

Operator tiller head close-up with orange thumb throttle paddles, horn button, and red top emergency stop — Smart control handle with thumb-actuated travel and a top-mounted emergency stop.

Features

4,000 lb load capacity at a 24-inch load center for pallet, skid, and unit-load handling
138-inch (11.5 ft) maximum lift height from a 2.56-inch lowered fork height — reaches second and third rack levels in most warehouse configurations
Adjustable forks (8.7"–32") and adjustable straddle legs (39.76"–55.55") handle a mix of pallet sizes without changing equipment
24V/90Ah lithium-ion battery with a 24V/30A charger — maintenance-free pack with no watering, equalizing, or dedicated battery room
3,000 W lifting motor and 750 W drive motor
Smart control handle — ergonomic tiller-style head with thumb-actuated travel and lift controls
Premium steel construction for straddle stability under load

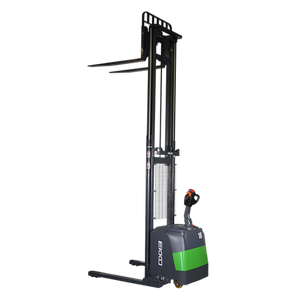

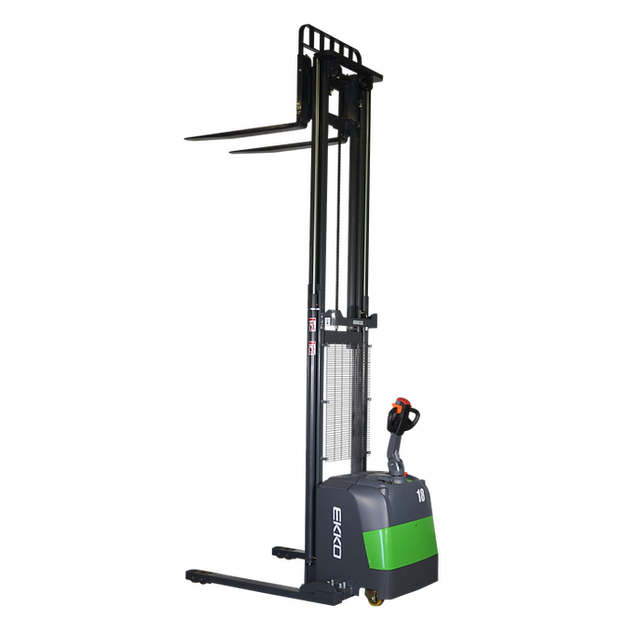

EKKO EB18C-138Li straddle stacker with mast fully extended, side view — Mast extended to its 166.93-inch service height for the 138-inch fork lift.

Compatibility

The EB18C-138Li is sized for indoor and dock work — loading and unloading trucks at the dock, moving pallets through stock rooms and manufacturing aisles, and placing loads into rack at heights up to 138 inches. For aisle planning: turning radius is 62.83 inches, overall length is 76.18 inches, and maximum overall width is 61 inches with the straddle legs at their widest setting. Lowered mast height is 89.17 inches, which clears most overhead doors and mezzanine entries in standard-height facilities.

Specifications

EKKO EB18C-138Li Specifications
Model	EB18C-138Li
Load capacity	4,000 lb
Maximum lift height	138" (11.5 ft)
Load center distance	24"
Fork length	45.3"
Single fork width	3.94"
Overall fork width	8.7"–32"
Lowered fork height	2.56"
Overall length	76.18"
Adjustable straddle legs	39.76"–55.55"
Turning radius	62.83"
Maximum width	61"
Extended mast height	166.93"
Lowered mast height	89.17"
Battery	24V / 90Ah lithium-ion
Charger	24V / 30A
Lifting motor	3,000 W
Driving motor	750 W
Service weight	2,360 lb

Documents

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
