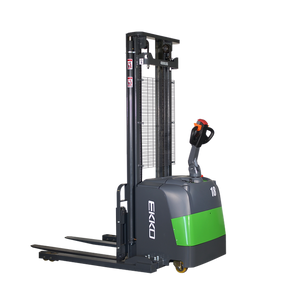

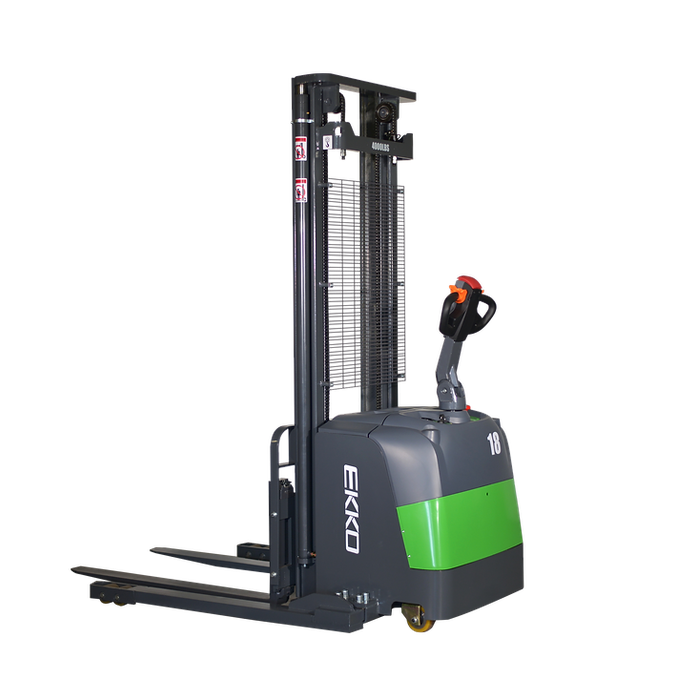

EKKO EB18C-118Li Full Powered Lithium Straddle Stacker 4000 lb Cap., 118" Height

The EKKO EB18C-118Li is a full-powered lithium straddle stacker built to handle 4,000 lb loads up to a 118-inch lift height. It combines the reach of a counterbalanced forklift, the maneuverability of a reach truck, and the operator footprint of a walkie stacker — sized for loading and unloading trucks, working loading docks, moving pallets through stock rooms, feeding manufacturing floors, and putting goods away in warehouse racking.

The straddle legs adjust from 39.76 to 55.55 inches, so the same truck moves standard GMA pallets, oversized skids, and odd footprints without swapping equipment. With a 62.83-inch turning radius and 61-inch maximum width, it works in narrower aisles than a sit-down counterbalanced forklift of the same capacity. Steel chassis and drives are built for repeated impact and directional changes through the shift.

• 4,000 lb rated capacity at a 24-inch load center — sized for full-pallet handling in distribution, manufacturing, and warehouse operations.
• 24V / 90Ah lithium-ion battery — opportunity-charge friendly, no watering, no equalization cycle, and runs flat across the charge curve.
• 3,000 W lifting motor and 750 W drive motor — power matched to the 4,000 lb capacity and the 118-inch lift height.
• Adjustable straddle legs (39.76–55.55 in) — straddle outside the load to handle pallets that a reach truck can’t accommodate without forks fully on top.
• Integrated 24V / 30A charger spec — the truck is engineered around this charger output for predictable charge time and battery life.

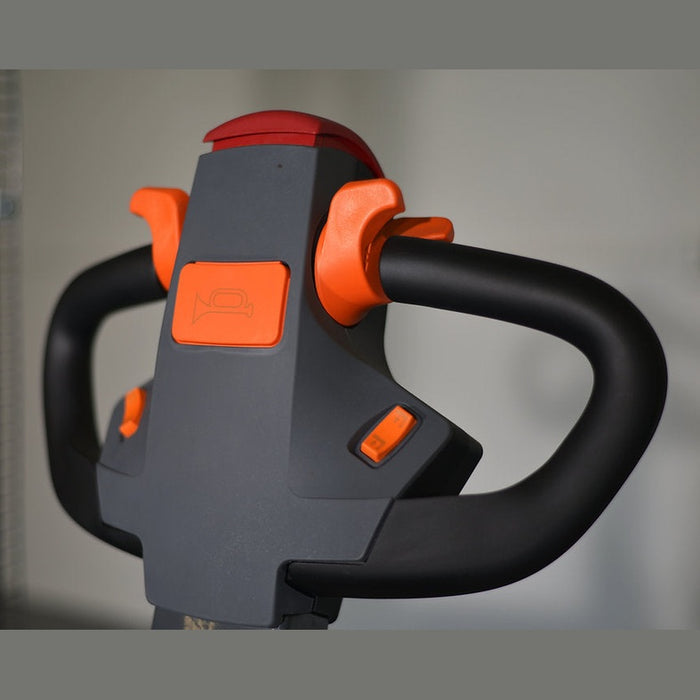

• Ergonomic tiller head — twin butterfly throttles, horn button, and belly-reverse switch on a molded grip housing.

The EB18C-118Li is built for indoor material-handling environments where a sit-down counterbalanced forklift is more truck than the aisle allows and a walkie stacker doesn’t reach high enough:

• Loading and unloading trucks at the dock
• Loading dock staging and pallet positioning
• Stock rooms and back-of-house storage
• Manufacturing floors feeding production lines
• Warehouse putaway and rack work up to 118 inches of lift

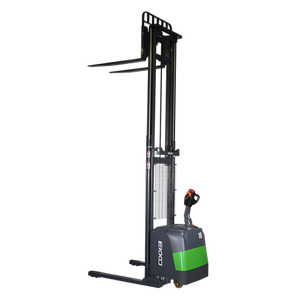

Mast lowered height is 79.33 inches, so the truck clears most standard interior doorways and roll-up door openings without unstacking the mast.

What is the rated lift capacity?

4,000 lb at a 24-inch load center.

How high does it lift?

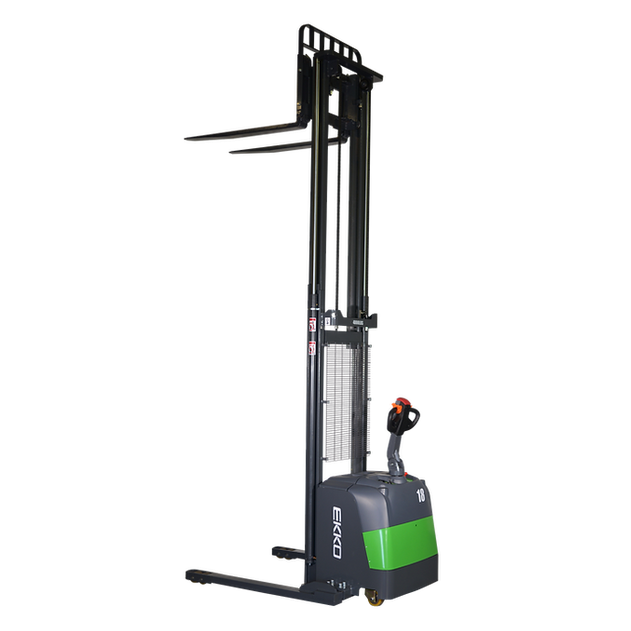

118 inches at maximum lift, with the mast lowered to 79.33 inches for transit and doorway clearance.

What battery does it use?

A 24V / 90Ah lithium-ion battery. Charger output is rated at 24V / 30A.

How wide does the truck operate, and what is the turning radius?

Maximum width is 61 inches and turning radius is 62.83 inches — narrower than a typical 4,000 lb counterbalanced forklift.

What does the adjustable straddle range cover?

The straddle legs adjust between 39.76 and 55.55 inches, accommodating GMA pallets, oversized skids, and odd-footprint loads on the same truck.

What are the fork dimensions?

Forks are 45.3 inches long, 3.94 inches wide per fork, and 8.66 inches overall fork width. Lowered fork height is 2.56 inches.

How much does it weigh?

Service weight is 2,270 lb — factor this into floor-load and freight planning.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
