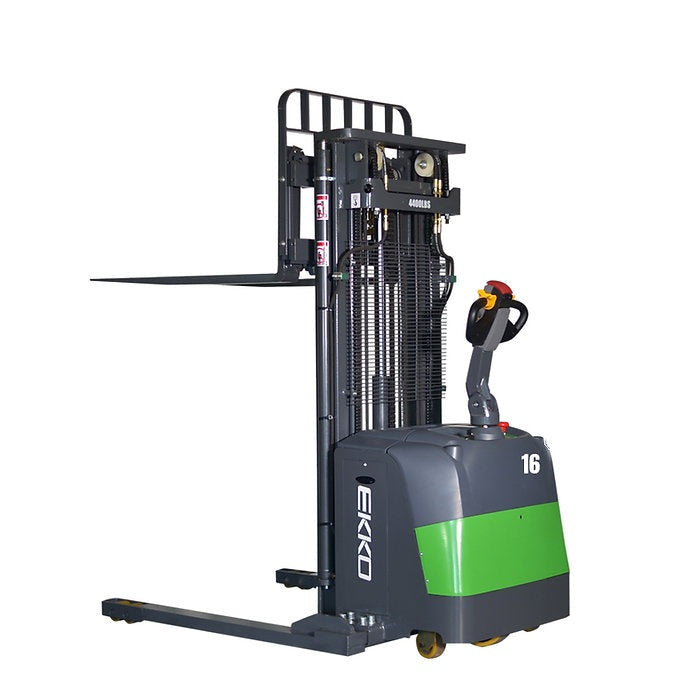

EKKO EB16EAS-189Li LithiumStraddle Stacker 4400 lb Cap., 189" Height, SIDE-SHIFT

The EKKO EB16EAS-189Li is a lithium-powered straddle stacker rated for 4,400 lb at a 24-inch load center, with a maximum lift height of 189 inches and 4.7 inches of side-shift travel built into the mast carriage. The triple-mast design combines the versatility of a forklift, the reach of a small reach truck, and the compact footprint of a walkie stacker — useful when loading and unloading trucks, working loading docks, moving pallets between stock rooms and manufacturing floors, or stacking inventory in warehouse racking.

Steel-frame construction with robotic welding handles directional changes, impacts, and the daily abuse of mixed-shift operation. A Curtis Instrument Controller manages the 24-volt drive system; the 24V AC center drive motor (1.5 kW) and the 24V lift motor (3 kW) operate from a 24-volt lithium battery, with Electric Power Steering (EPS) reducing operator fatigue across full shifts. Side-shifting forks let the operator align with pallet pockets without repositioning the truck — a real time-saver when working a row of mixed-width pallets.

• 4,400 lb load capacity at a 24-inch load center
• 189-inch maximum lift height with a triple-mast design
• 51.85 inches of free lift before the mast begins to extend
• 4.7 inches of integrated side-shift travel
• Adjustable forks reach a 32.1-inch maximum spread
• Adjustable straddle base from 39.8 to 55.5 inches between outrigger legs
• Curtis Instrument Controller for drive and lift management
• 24-volt AC center drive motor (1.5 kW) with Electric Power Steering
• 24-volt lift motor (3 kW)
• Steel construction with robotic welding
• Ergonomic handle and operator controls
• 3-year limited warranty

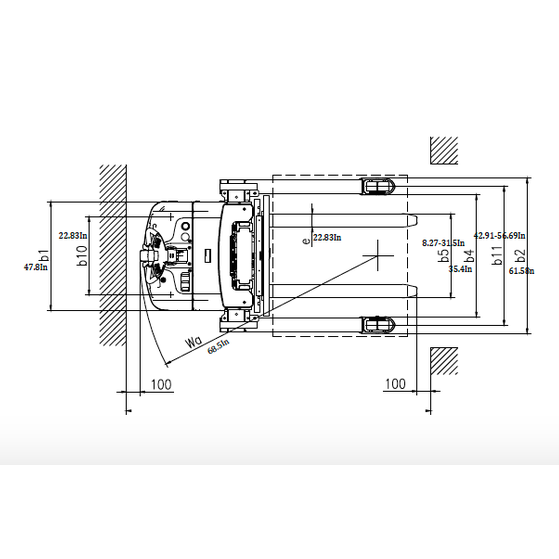

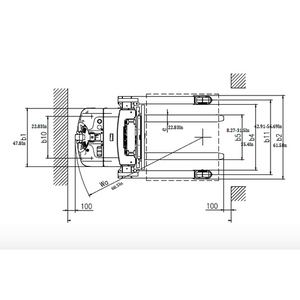

The straddle base adjusts from 39.8 to 55.5 inches between outriggers, the forks reach up to a 32.1-inch spread, and the mast carriage side-shifts 4.7 inches — so the same truck handles standard 40-inch GMA pallets, narrower euro pallets, and wider non-standard loads without swapping forks. A 65-inch turning radius and a maximum width that adjusts from 46.93 to 60.71 inches let it work in tighter aisles than a counterbalanced forklift, while reaching racking that walkie stackers can't.

The EB16EAS-189Li ships with a 3-year limited warranty from EKKO Lifts.

What is the rated load capacity?

4,400 lb at a 24-inch load center.

How high will the forks lift?

189 inches at maximum extension, with 51.85 inches of free lift before the mast begins to extend.

Does it side-shift?

Yes — 4.7 inches of side-shift travel, integrated into the mast carriage.

What pallet widths will it handle?

The forks adjust up to a 32.1-inch spread and the straddle base adjusts from 39.8 to 55.5 inches between outriggers, so standard 40-inch GMA pallets, narrower euro pallets, and wider non-standard loads all fit without changing forks.

What is the turning radius?

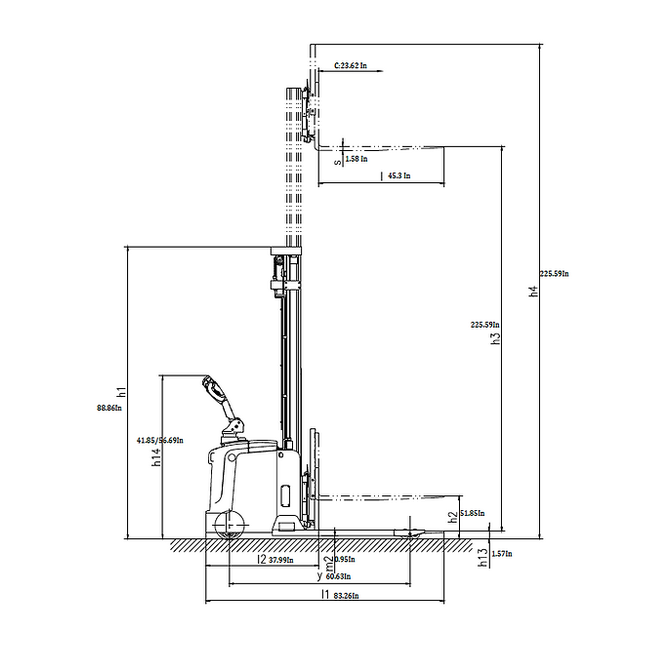

65 inches. Overall length is 83.26 inches and the maximum width adjusts from 46.93 to 60.71 inches at the widest straddle setting.

What warranty is included?

A 3-year limited warranty from EKKO Lifts.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
