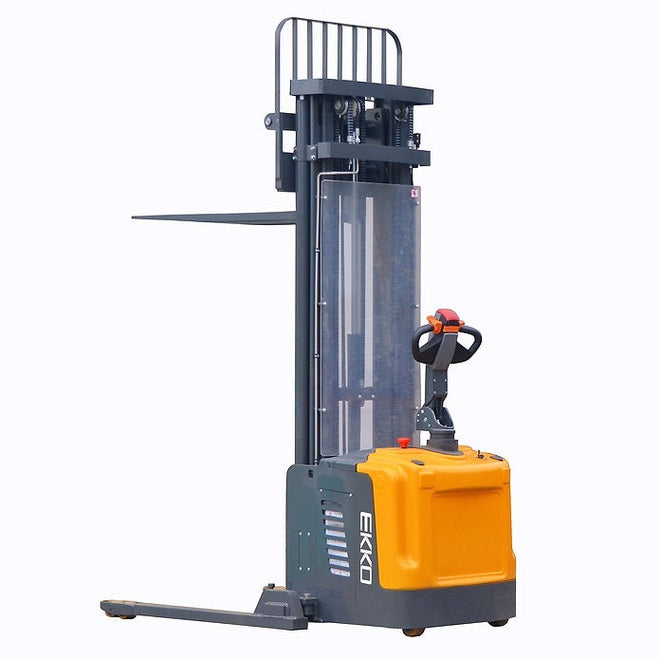

EKKO EB16EA Full Powered Straddle Stacker 4400 lb Cap., 216" Height

The EKKO EB16EA is a full-powered electric walkie straddle stacker rated to lift 4,400 lb to a raised height of 216 inches (18 feet) on a three-stage telescoping mast. It brings together the reach of a forklift, the height of a reach truck, and the walk-behind footprint of a walkie stacker — built for loading and unloading trucks, working loading docks, and moving stock through stock rooms, manufacturing floors, and warehouse racking.

Travel and lift are both powered, with a 24V AC center drive motor and electric power steering (EPS) for low-effort maneuvering in aisles as tight as 8 feet. A 24V Curtis instrument controller manages the drive and a 3,000-watt lift motor, while electro-magnetic and electronic neutral braking handle stopping. The 24V/210Ah deep-cycle maintenance-free battery and its automatic 24V/30A charger are both included, recharging from a standard 110V outlet. The chassis is robotic-welded heavy-duty steel with an I-beam mast, and polyurethane drive, stability, and load wheels suit smooth indoor warehouse floors. Backed by a 3-year limited warranty. Ships via LTL freight — reach out to arrange delivery scheduling.

• 4,400 lb capacity at a 24-inch load center

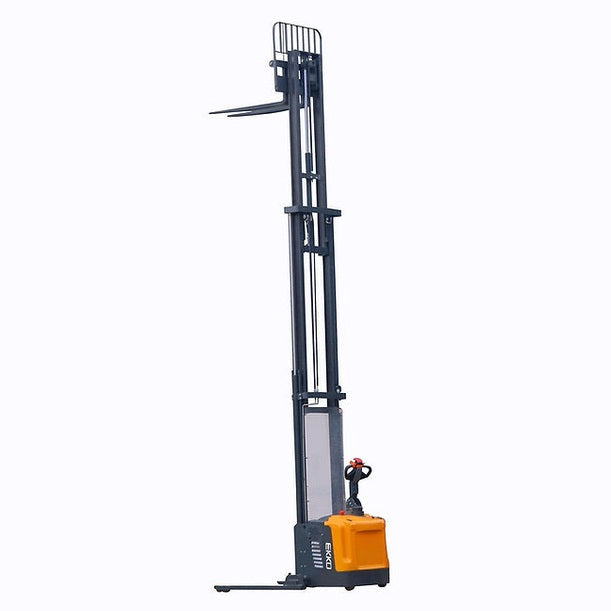

• Raised fork height of 216 inches (18 feet) on a triple (three-stage) telescoping mast, with 76.25 inches of free lift before the mast extends

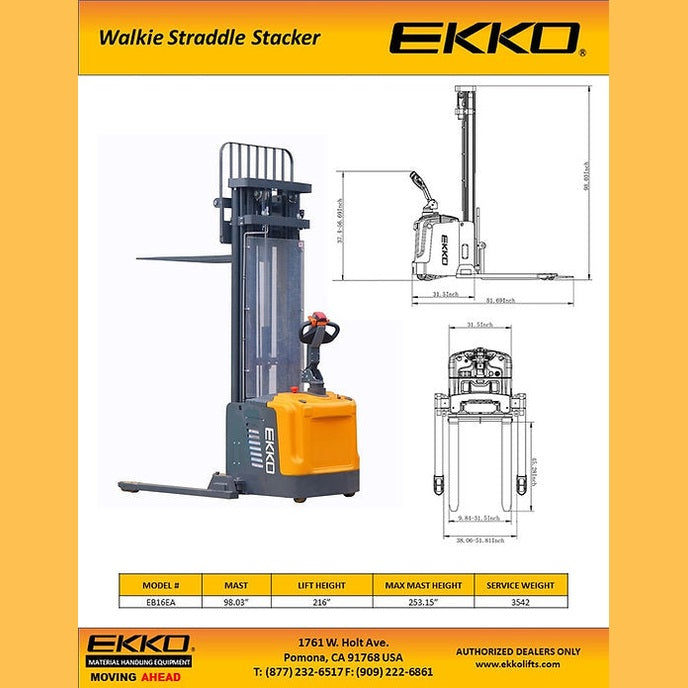

• Mast extends to 253.15 inches and retracts to 98.03 inches for travel and low-clearance storage
• 24V AC center drive motor with electric power steering (EPS) for low-effort steering and tight maneuvering
• 24V Curtis instrument controller and a 3,000-watt hydraulic lift motor with hardened chrome-moly steel components
• Electro-magnetic braking with electronic neutral braking
• 24V/210Ah deep-cycle maintenance-free battery with an automatic 24V/30A charger, both included, recharging from a standard 110V outlet

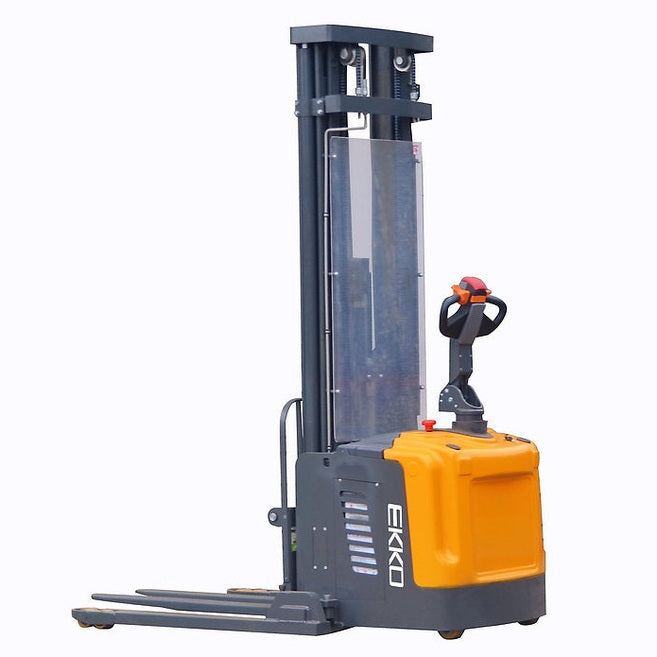

• Adjustable straddle outriggers (38.06–51.81 inches) and adjustable forks (9.8–31.5 inches) for a range of pallet footprints
• Forks 45.28 inches long and 4.7 inches wide, lowering to 1.58 inches
• Ergonomic tiller with throttle, lift, lower, turtle (creep) mode, and horn controls, plus a belly-button reverse safety switch
• Polyurethane drive (9" × 3"), stability (4" × 2"), and load (4" × 3") wheels
• Robotic-welded heavy-duty steel chassis with an I-beam mast and protective steel mast guard

As a straddle stacker, the EB16EA carries its load on forks set between two outer outriggers that straddle the pallet at floor level. Both the outriggers (38.06–51.81 inches) and the forks (9.8–31.5 inches) adjust, so the stacker takes a range of pallet widths and fork-entry spacings rather than a single fixed size. Overall width adjusts from 46.93 to 60.71 inches, and EKKO rates the stacker for aisles as narrow as 8 feet. With a 69.09-inch turning radius and an 81.69-inch overall length, confirm the stacker fits your aisle, dock, and pallet layout before ordering.

The EB16EA is covered by a 3-year limited warranty.

Are the battery and charger included?

Yes. The EB16EA includes a 24V/210Ah deep-cycle maintenance-free battery and an automatic 24V/30A charger that recharges from a standard 110V outlet.

What is free lift, and how much does this stacker have?

Free lift is how high the forks rise before the mast begins to telescope upward — useful for stacking under low ceilings or beams. The EB16EA provides 76.25 inches of free lift.

How narrow an aisle can it work in?

EKKO rates the EB16EA for aisles as narrow as 8 feet. Overall width adjusts between 46.93 and 60.71 inches and the turning radius is 69.09 inches — confirm against your aisle layout before ordering.

Can the forks and outriggers adjust to different pallet sizes?

Yes. The straddle outriggers adjust from 38.06 to 51.81 inches and the forks adjust from 9.8 to 31.5 inches, fitting a range of pallet widths and entry spacings.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
