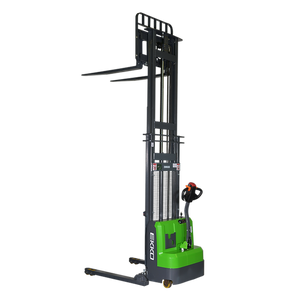

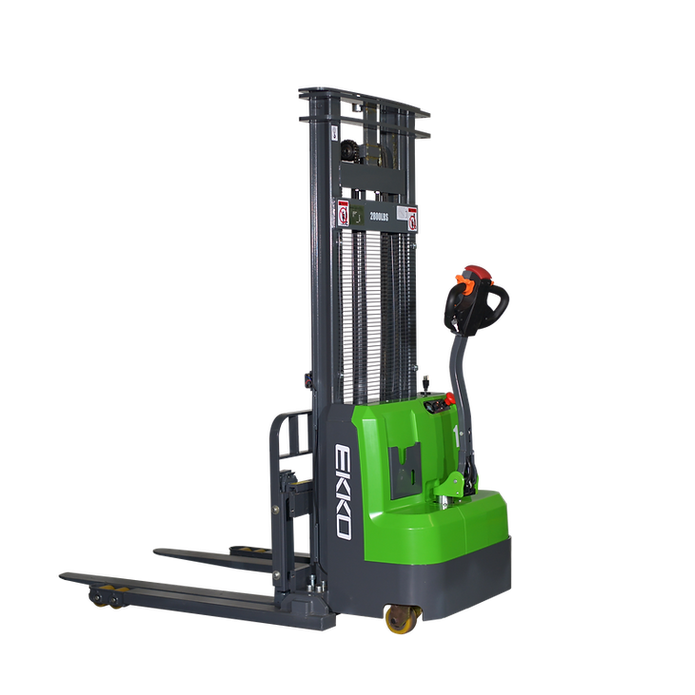

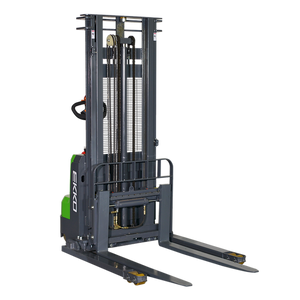

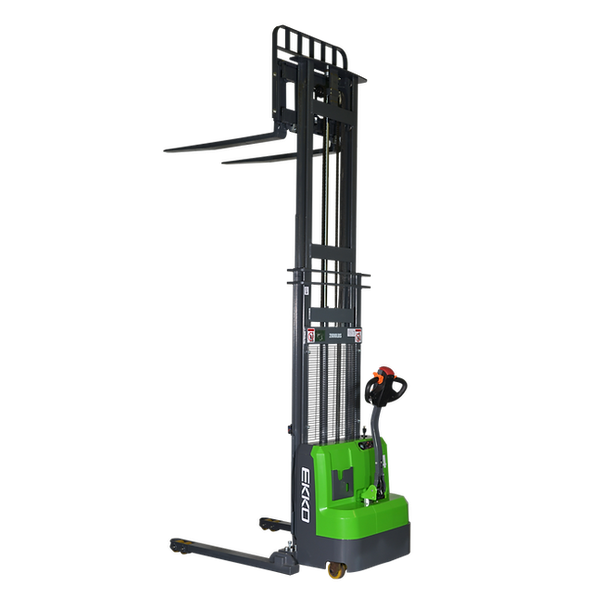

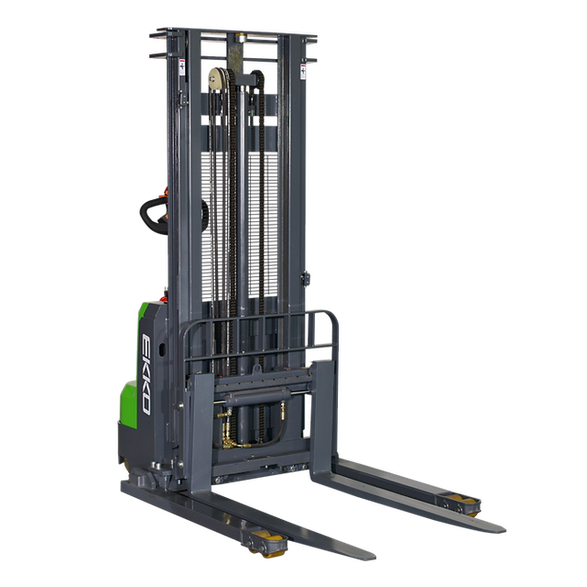

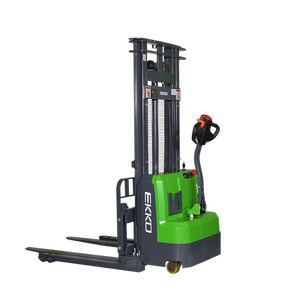

EKKO EB14CS-145Li Lithium Straddle Stacker 3000 lb. Cap, 145" Height, Side Shift

The EKKO EB14CS-145Li is a lithium-powered electric straddle stacker built for 3,000 lb material handling work at loading docks, in stock rooms, on manufacturing floors, and across general warehousing. EKKO designed the truck to bring together the load-handling envelope of a small forklift, the lift height of a reach truck, and the walk-behind format of a stacker — one chassis covers truck loading and unloading, rack put-aways up to 145 inches, and short-distance pallet moves across the floor.

Capacity is 3,000 lb at a 24-inch load center, lifted by a 2.2 kW lift motor to a maximum fork height of 145 inches (12.08 feet). The 24V/50Ah lithium-ion battery powers a DC drive motor through a Curtis Instruments controller, with an internal 24V/20A charger built into the truck — plug it into a standard outlet, no separate charging station to source or stage. Straddle legs adjust from 35.4 to 51.2 inches to accept different pallet footprints, and the fork carriage adjusts from 8.7 to 32.1 inches with integrated side shift for precise pallet placement at the rack.

Polyurethane wheels and a steel chassis are sized for smooth indoor flooring — clean concrete in warehouses, distribution centers, and manufacturing aisles. The truck is not built for gravel, broken pavement, or outdoor yard surfaces; verify your floor before specifying.

• 3,000 lb load capacity at a 24-inch load center
• 145-inch maximum fork height (12.08 ft.)
• Side shift on the carriage for in-rack pallet alignment without repositioning the truck
• Curtis Instruments controller
• DC drive motor sized for indoor warehouse duty cycles
• 24V/50Ah lithium-ion battery with on-board 24V/20A internal charger
• Polyurethane wheels for smooth indoor flooring
• Adjustable straddle legs (35.4–51.2″) and adjustable fork width (8.7–32.1″)
• Ergonomic handle and controls

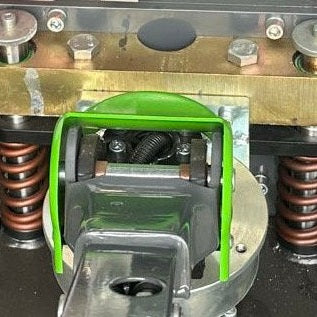

• Dual damping drive system for handling performance and operator comfort
• Steel construction throughout

The EB14CS-145Li is built for indoor and flat-surface use — warehouses, distribution stock rooms, manufacturing floors, and loading docks. The 174.8-inch extended mast height and 95.5-inch lowered mast height set the vertical envelope: confirm doorway and dock clearance against the 95.5-inch lowered height, and confirm overhead clearance under racking and roller doors against the 174.8-inch extended height before delivery. Service weight is 1,800 lb — verify your floor rating, mezzanine, or dock plate against that figure.

What is the rated capacity, and at what load center?

3,000 pounds at a 24-inch load center.

How high will the forks lift?

145 inches (12.08 feet) maximum fork height. The fully extended mast reaches 174.8 inches, so confirm overhead clearance in your work area before delivery.

Is the charger included?

Yes. The EB14CS-145Li has a 24V/20A charger built into the truck — it plugs directly into a standard outlet, with no separate charging station to source or stage.

What pallet sizes does it handle?

Straddle legs adjust from 35.4 to 51.2 inches and fork width adjusts from 8.7 to 32.1 inches, accepting a range of pallet footprints. Fork length is 45.3 inches.

What surfaces and environments is it built for?

Polyurethane wheels are sized for smooth indoor flooring — loading docks, stock rooms, manufacturing floors, and warehouse aisles. Not intended for gravel, broken concrete, or uneven outdoor terrain.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
