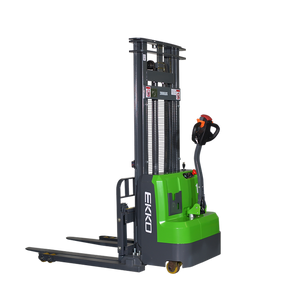

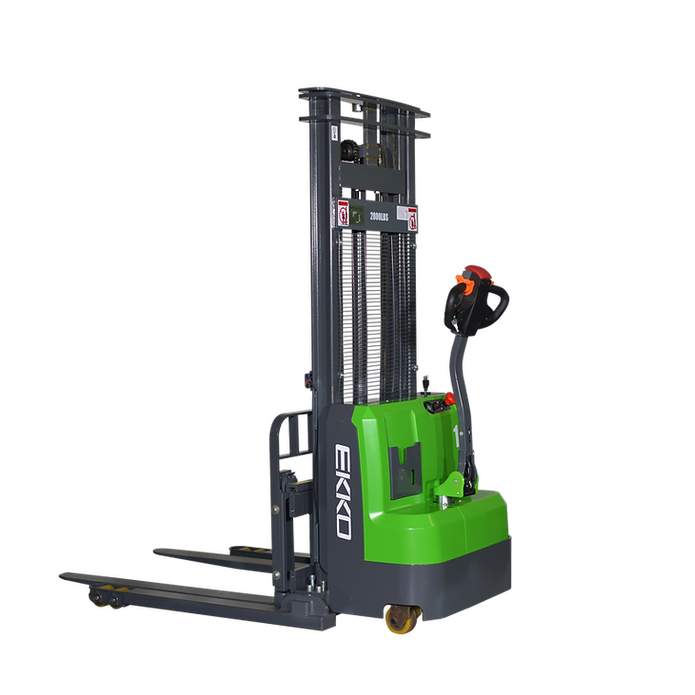

EKKO EB14CS-138Li Lithium Straddle Stacker 3000 lb. Cap, 138" Height, Side Shift

The EKKO EB14CS-138Li is a 24-volt lithium-ion electric straddle stacker built for 3,000 lb material handling work in loading docks, stock rooms, manufacturing floors, and general warehousing. The design combines the maneuverability of a forklift, the lift height of a reach truck, and the compact footprint of a walkie stacker — a single walk-behind operator can stage pallets up to 138 inches (11.5 ft) without committing to a larger ride-on truck.

Adjustable outrigger legs (35.4–51.2 in), adjustable forks (8.7–32.1 in), and an integrated side shift make the truck flexible across pallet widths, dock heights, and rack openings. Polyurethane wheels and a steel chassis suit indoor material-handling work, and a dual damping drive system supports steadier handling and operator comfort through directional changes under load.

• 3,000 lb load capacity at a 24-inch load center
• 138-inch (11.5 ft) raised lift height for upper-rack pallet placement

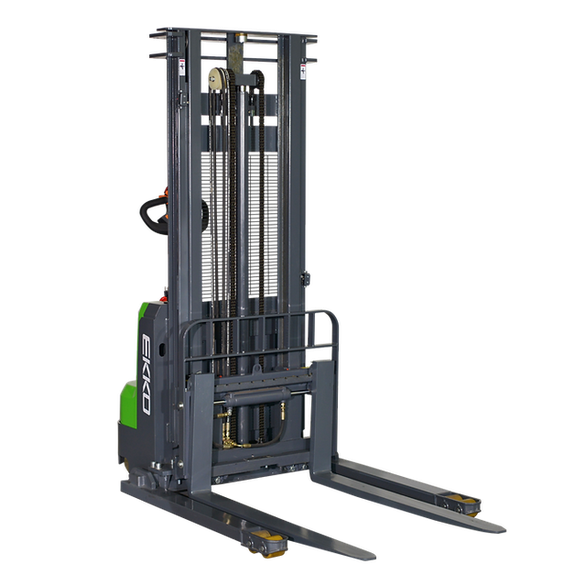

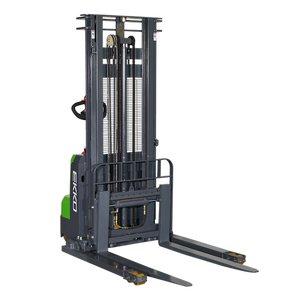

• Integrated side shift for fine pallet alignment without repositioning the truck
• Adjustable fork spread, 8.7–32.1 in, for standard and irregular pallet widths
• Adjustable outrigger legs, 35.4–51.2 in, for pallet-width and load-stability flexibility
• 24V / 50Ah lithium-ion battery with integrated 24V / 20A internal charger
• Curtis Instrument controller

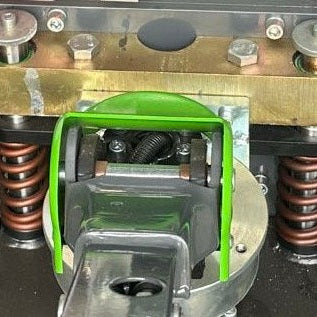

• DC drive motor with dual damping drive system
• 2.2 kW lifting motor
• Polyurethane wheels
• Steel chassis and mast construction
• Ergonomic walk-behind handle and operator controls
• 2.6-inch lowered fork height for floor-level pallet entry
• 60.8-inch turning radius for stockroom and tight-aisle work
• 91.5-inch lowered mast height for low-clearance doorway and overhead transit

Supplier content positions the EB14CS-138Li for:

• Loading and unloading trucks
• Loading docks
• Stock rooms
• Manufacturing floors
• General warehousing

Before specifying, confirm aisle widths against the 60.8-inch turning radius and 61-inch maximum overall width, confirm doorway and overhead clearances against the 91.5-inch lowered mast height, and confirm the working pallet width fits the 8.7–32.1-inch fork spread and 35.4–51.2-inch outrigger-leg adjustment.

What is the rated capacity and load center?

3,000 lb at a 24-inch load center.

How high will the EB14CS-138Li lift a pallet?

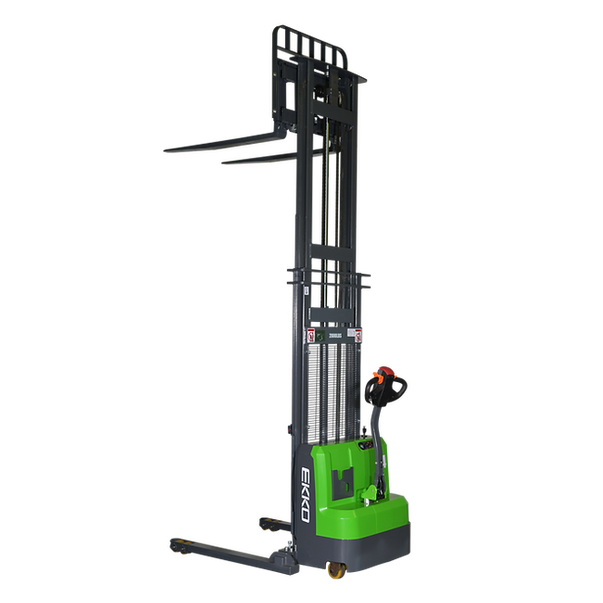

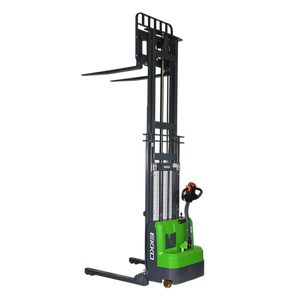

Maximum raised height is 138 inches (11.5 ft). Extended mast height is 166.9 inches; lowered mast height is 91.5 inches.

What battery does it run on, and is a charger included?

The EB14CS-138Li runs on a 24V / 50Ah lithium-ion battery with an integrated 24V / 20A internal charger — no external charging hardware is required to start using the truck.

What are the overall footprint and turning radius for aisle planning?

Overall length is 73.7 inches, maximum overall width is 61 inches, and the turning radius is 60.8 inches. Outrigger legs adjust from 35.4 to 51.2 inches, so the working footprint depends on the pallet width the legs are set to.

What is the lowered mast height for doorway and overhead clearance?

91.5 inches lowered. Confirm against the lowest doorway, mezzanine, or overhead obstruction on the operator path between work zones.

What does the truck weigh for floor-load planning?

Service weight is 1,780 lb. Confirm against mezzanine, lift, dock plate, or trailer-floor load ratings on the operator path.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
