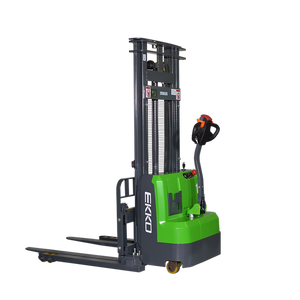

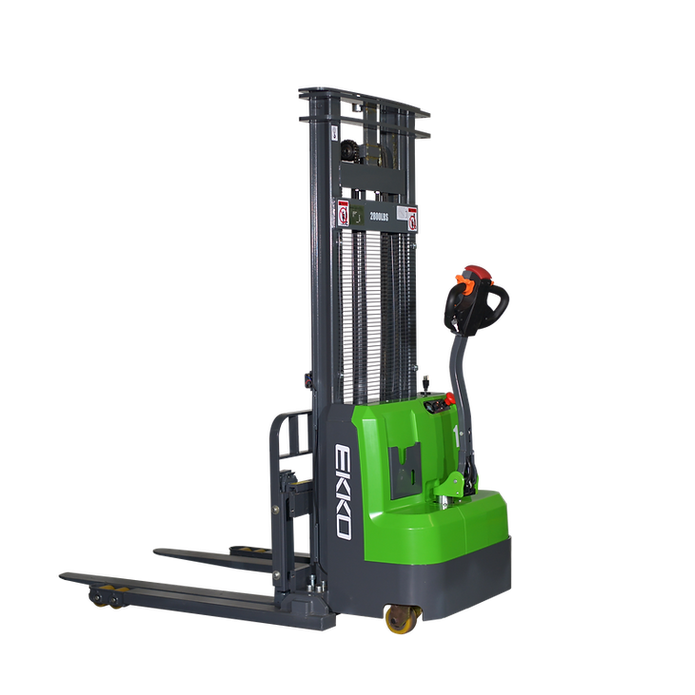

The EKKO EB14CS-118Li is a lithium-powered full-powered electric straddle stacker rated for 3,000 lb at a 24-inch load center, with a raised fork height of 118 inches (9.83 ft). Both lift and travel are motor-driven, so the operator walks behind on the tiller instead of pumping a hydraulic handle or pushing the load by hand. It is built for loading and unloading trucks, working loading docks, and moving stock across stock rooms, manufacturing floors, and warehouse aisles.

An integrated side shift moves the forks laterally so the operator can line up with a pallet without repositioning the whole truck — useful for squaring loads into racking and tight bays. The straddle design carries the load between two adjustable legs rather than a counterweight, keeping the overall length to 73.7 inches and the turning radius to 60.8 inches. Adjustable legs span 35.4 to 51.2 inches and the forks adjust from 8.7 to 32.1 inches, so the stacker straddles a range of load and pallet footprints. Forks lower to 2.6 inches to slide under low loads, and the mast extends to 147.6 inches and collapses to 81.7 inches for travel and doorway clearance.

Power comes from a 24V/50Ah lithium battery driving a 2.2 kW lift motor and a DC travel motor, managed by a Curtis Instruments controller. A built-in 24V/20A charger is integrated into the unit, so it recharges on board without separate charging equipment. A dual damping drive system sits under the drive end; EKKO states it improves handling, efficiency, and operator comfort. The chassis is steel, the load wheels are polyurethane for smooth indoor floors, and the drive and lift controls are consolidated in one ergonomic tiller head.

• 24V/50Ah lithium battery with a built-in 24V/20A onboard charger — recharges on the unit, no separate charger to source or store.

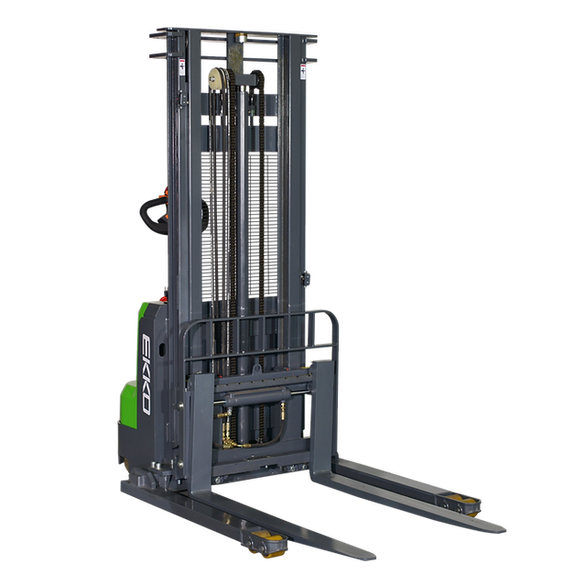

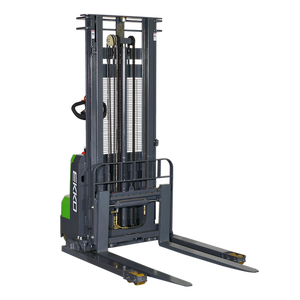

• Integrated side shift — moves the forks laterally to align with a load without repositioning the truck.
• Full-powered lift and travel — 2.2 kW lift motor and a DC drive motor; the operator steers from the tiller without manual pumping or pushing.

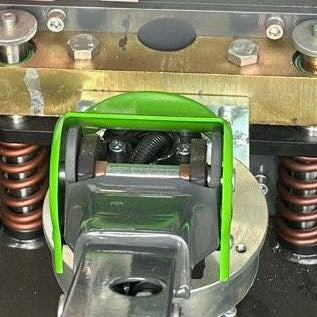

• Dual damping drive system — EKKO states it improves handling, efficiency, and operator comfort.
• Curtis Instruments controller managing both lift and drive.
• Adjustable straddle legs (35.4–51.2 in) and adjustable forks (8.7–32.1 in) to fit different load and pallet widths.

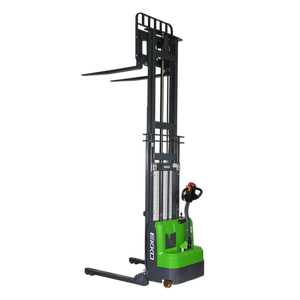

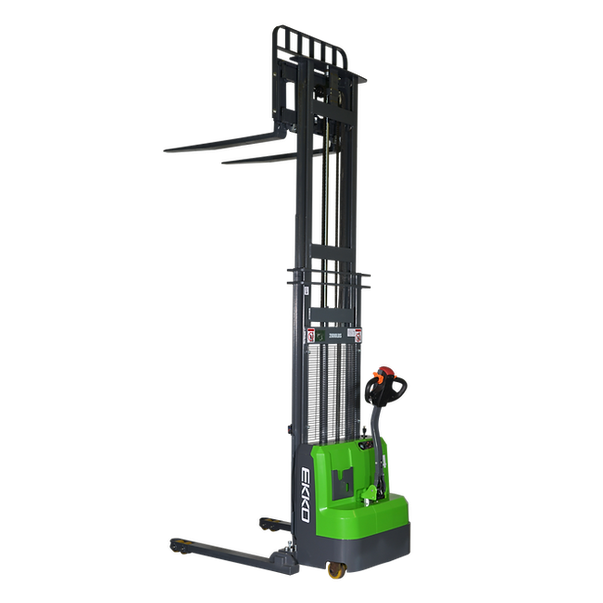

• 118-inch raised fork height with the mast extending to 147.6 inches overall and collapsing to 81.7 inches for clearance.
• Polyurethane load wheels sized for smooth concrete and finished warehouse floors, with steel construction throughout.

Is the battery lithium, and is a charger included?

Yes. It runs a 24V/50Ah lithium battery, and a 24V/20A charger is built into the unit, so it recharges on board without a separate external charger.

What does the side shift do?

The side shift moves the forks left and right so the operator can align with a pallet or rack opening without repositioning the whole truck — useful for squaring loads in tight bays.

What does "full-powered" mean on this stacker?

Both functions are motor-driven: a 2.2 kW motor raises the forks and a DC motor drives travel. The operator walks behind and steers from the tiller — there is no manual hydraulic pump and no pushing the loaded truck by hand.

How far do the legs and forks adjust?

The straddle legs adjust from 35.4 to 51.2 inches and the forks adjust from 8.7 to 32.1 inches, so the stacker can be set to straddle and lift a range of load and pallet widths.

Can it be used outdoors or on rough ground?

It is designed for smooth indoor surfaces — finished warehouse floors, loading docks, stock rooms, and manufacturing floors. The polyurethane load wheels are intended for level concrete, not uneven or outdoor terrain.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
