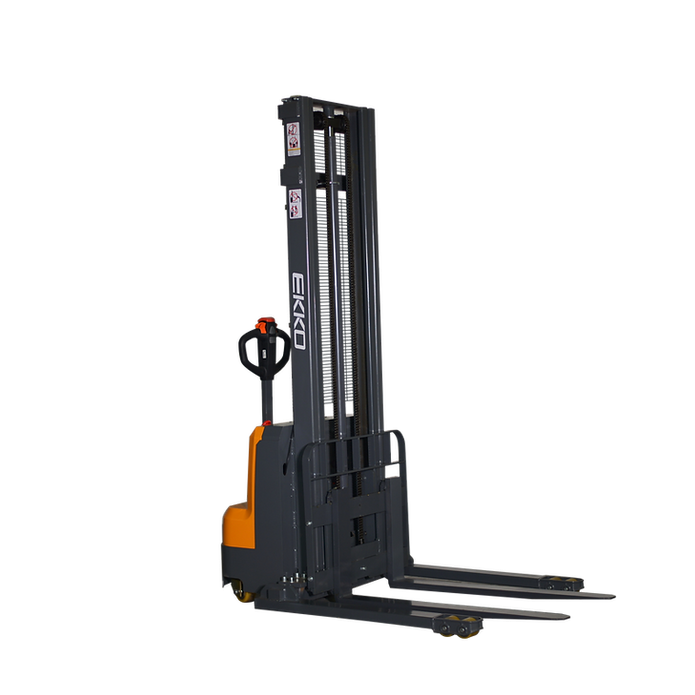

EKKO EB14C-145 Full Powered Straddle Stacker 3000 lb. Cap., 145" Height

Name: EKKO EB14C-145 Full Powered Straddle Stacker 3000 lb. Cap., 145" Height
Brand: EKKO Lifts
SKU: EB14C-145
Price: 6818.0 USD
Availability: InStock

SKU EB14C-145

In Stock

$6,818.00 - $6,818.00

$6,818.00

$6,818.00 - $6,818.00

$6,818.00

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

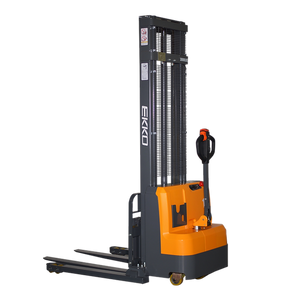

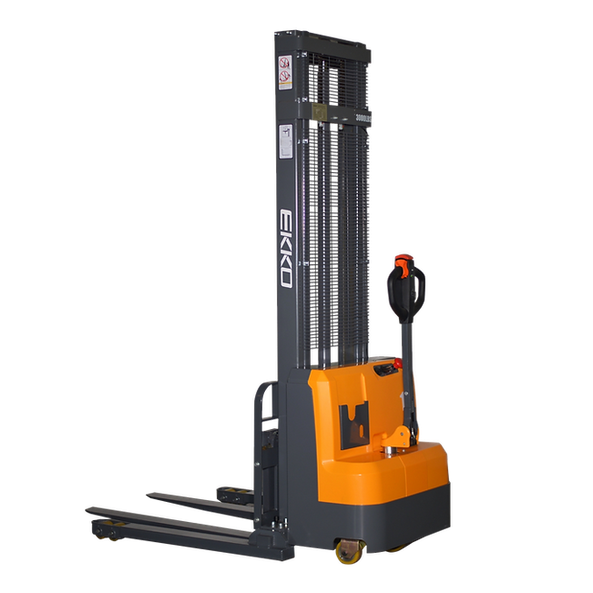

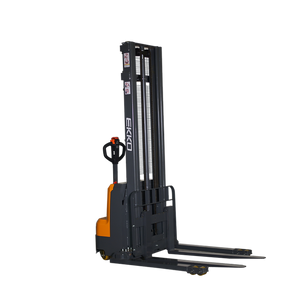

The EKKO EB14C-145 is a fully powered straddle stacker that handles loads up to 3,000 lb and lifts them to a raised fork height of 145" (about 12 ft). Its straddle-leg design lets the forks reach over and around pallet loads, pairing the lift of a stacker with a compact, walk-behind footprint for loading and unloading trucks, working loading docks, and moving stock through stock rooms, manufacturing floors, and warehouses.

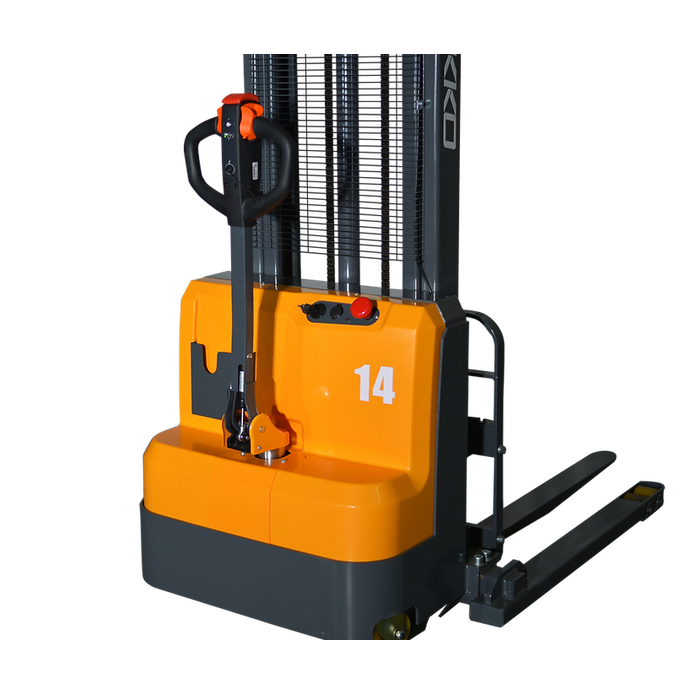

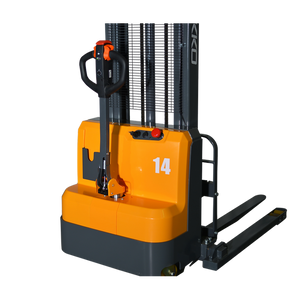

Both travel and lift are powered: a DC drive motor moves the stacker and a 2.2 kW lift motor raises the forks, managed by a Curtis Instruments controller. A dual damping drive system cushions the drive unit, which EKKO states improves handling, operating efficiency, and operator comfort. Power comes from an onboard 24V / 85Ah battery with a built-in 24V / 10A charger, so the unit recharges on board without a separate charging station.

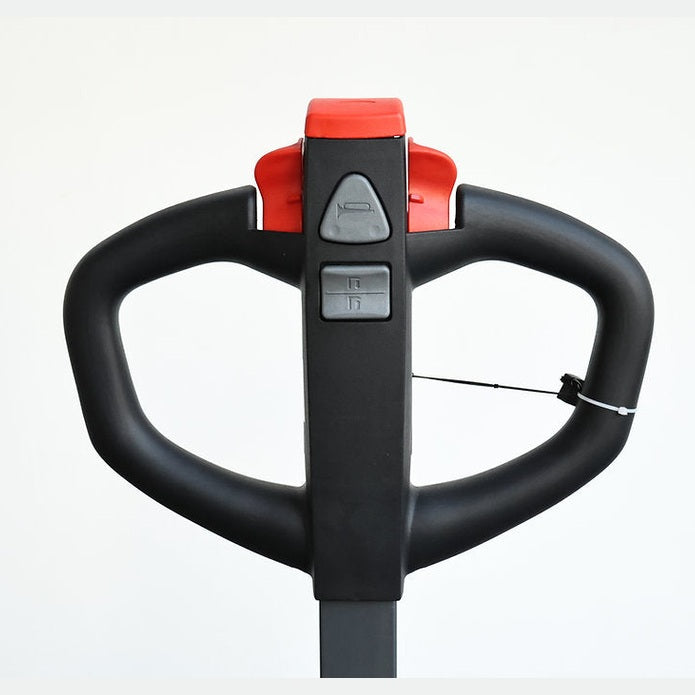

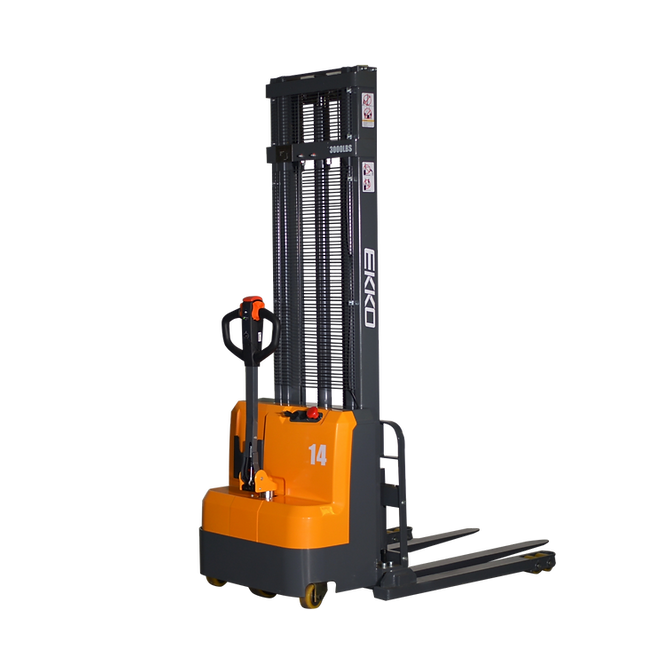

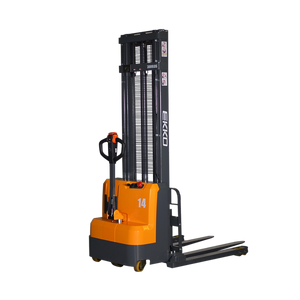

The mast raises from a lowered height of 98.8" to a fully extended 174.8", and the forks adjust across an 8.7"-32.1" overall width with straddle legs that set from 35.4" to 51.2" to match different pallet and load sizes. Polyurethane wheels suit smooth indoor floors, the chassis is steel, and an ergonomic tiller groups the drive, lift, and lowering controls within reach for walk-behind operation.

Features

Fully powered travel and lift — a DC drive motor powers travel and a 2.2 kW motor powers the lift, so there is no pushing or manual pumping.
3,000 lb capacity to 145" — moves palletized loads from floor level to a 145" raised fork height at a 20" load center.

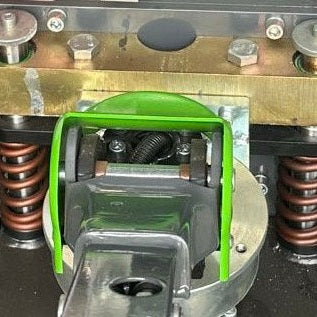

Dual damping drive system — cushions the drive unit for steadier handling and operator comfort.
Adjustable forks and straddle legs — the forks set across an 8.7"-32.1" overall width and the straddle legs across 35.4"-51.2" to fit different pallet and load footprints.
Curtis Instruments controller — manages the DC drive and lift motors.
Onboard battery and charger — a 24V / 85Ah battery and built-in 24V / 10A charger recharge the unit without a separate charging station.
Polyurethane wheels — matched to smooth indoor warehouse and dock floors.
Steel construction — a steel chassis and frame.

Specifications

EKKO EB14C-145 Specifications
Load capacity	3,000 lb
Load center	20"
Maximum fork lift height (raised)	145" (12.08 ft)
Lowered fork height	2.6"
Fork length	45.3"
Single fork width	4"
Overall fork width (adjustable)	8.7" - 32.1"
Adjustable straddle-leg width	35.4" - 51.2"
Turning radius	57.5"
Overall length	73.7"
Maximum overall width	61"
Extended mast height	174.8"
Lowered mast height	98.8"
Battery	24V / 85Ah
Internal charger	24V / 10A
Lift motor	2.2 kW
Drive motor	DC
Drive system	Dual damping
Service weight	1,520 lb
Controller	Curtis Instruments
Wheels	Polyurethane

FAQ

Is a charger included?

Yes. The stacker has a built-in 24V / 10A charger, so it recharges on board without a separate charging station.

How high does it lift, and how much can it carry?

It lifts to a 145" raised fork height (about 12 ft) and is rated for 3,000 lb at a 20" load center.

Is the travel powered, or do I push it?

Both are powered — a DC drive motor moves the stacker and a 2.2 kW motor raises the forks, so there is no pushing or manual pumping.

Can the forks and straddle legs be adjusted?

Yes. The forks adjust across an 8.7"-32.1" overall width and the straddle legs across 35.4"-51.2" to fit different loads. Each fork is 4" wide and 45.3" long.

What are the overall dimensions and weight?

The stacker is 73.7" long and up to 61" wide, with a lowered mast height of 98.8" and a service weight of 1,520 lb.

Documents

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
