EKKO EB14C-138Li Lithium Straddle Stacker 3000 lb. Cap., 138" Height

Name: EKKO EB14C-138Li Lithium Straddle Stacker 3000 lb. Cap., 138" Height
Brand: EKKO Lifts
SKU: EB14C-138Li
Price: 6663.0 USD
Availability: InStock

SKU EB14C-138Li

In Stock

$6,663.00 - $6,663.00

$6,663.00

$6,663.00 - $6,663.00

$6,663.00

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

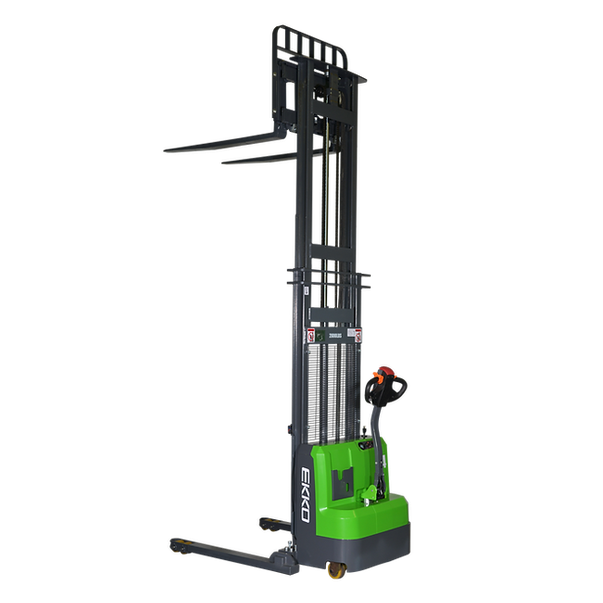

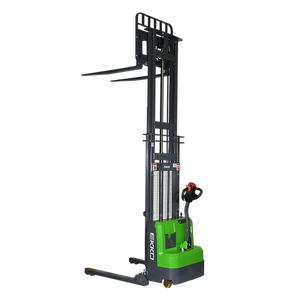

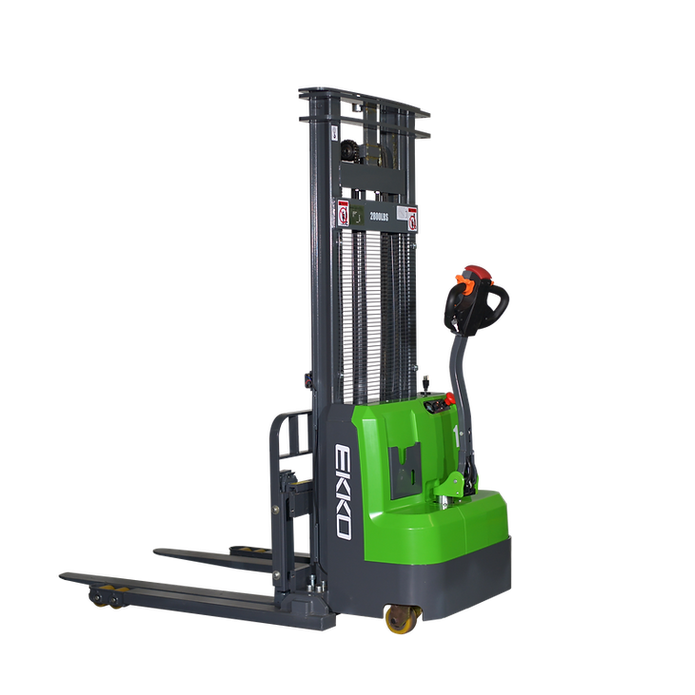

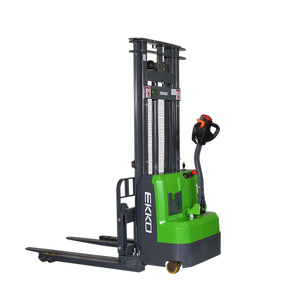

The EKKO EB14C-138Li is a lithium-powered electric straddle stacker that lifts 3,000 lb to a raised height of 138 inches (11.5 feet), combining the versatility of a forklift, a reach truck, and a walkie stacker in a single walk-behind unit. It is built for loading and unloading trucks, working loading docks, and moving stock through stock rooms, manufacturing floors, and general warehousing.

Power comes from a 24V/50Ah lithium-ion battery with a built-in 24V/20A charger, so it recharges on board without a separate charging station. A 2.2 kW lift motor and a DC drive motor handle the work, managed by a Curtis Instruments controller. The stacker rides on polyurethane wheels suited to smooth, finished warehouse floors, and the ergonomic tiller handle keeps travel, lift, and lowering controls under one hand.

A dual damping drive system improves handling performance, efficiency, and operator comfort through directional changes and repeated cycling. Steel construction and durable drive components back it up for sustained daily material handling work.

Features

3,000 lb load capacity at a 20-inch load center, raised to 138 inches (11.5 feet)
24V/50Ah lithium-ion battery with a built-in 24V/20A internal charger — onboard charging, no separate charging station

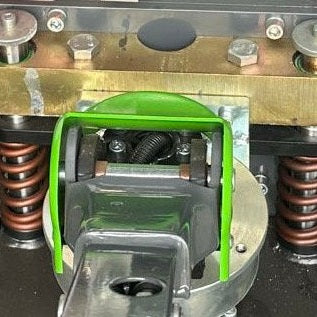

Dual damping drive system for stronger handling performance, efficiency, and operator comfort
Curtis Instruments controller for consistent travel and lift control
2.2 kW lift motor with a DC drive motor
Polyurethane wheels matched to smooth, finished indoor floors
Adjustable forks: 45.3-inch length, 4-inch single-fork width, 8.7 to 32.1-inch outer width range
Adjustable straddle legs from 35.4 to 51.2 inches to span varied pallet and load widths

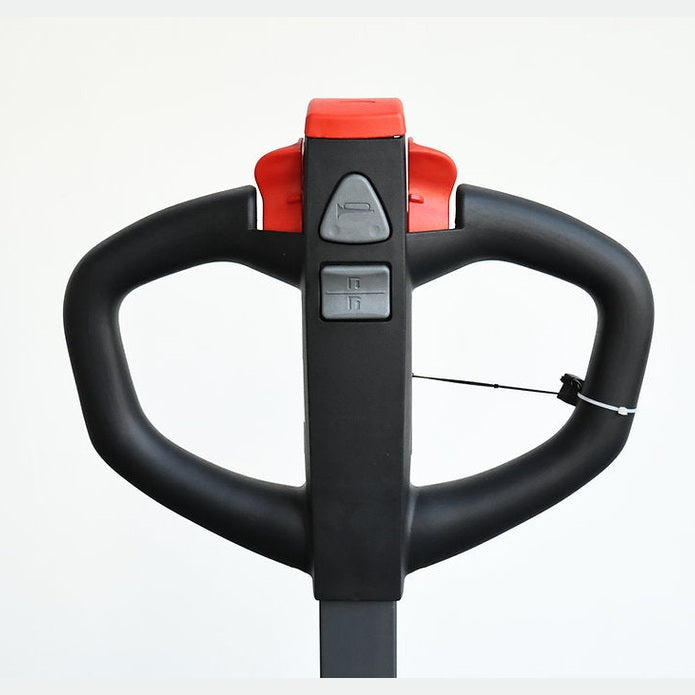

Ergonomic tiller handle with travel, lift, and lowering controls in one hand
Steel construction rated for repeated impact and directional changes

Specifications

EKKO EB14C-138Li Straddle Stacker Specifications
Model	EB14C-138Li
Load capacity	3,000 lb
Max lifting height	138" (11.5 ft)
Load center distance	20"
Fork length	45.3"
Single fork width	4"
Fork adjustment width	8.7" – 32.1"
Lowered fork height	2.6"
Adjustable leg width	35.4" – 51.2"
Turning radius	57.5"
Overall length	73.7"
Max overall width	61"
Extended mast height	166.9"
Lowered mast height	94.2"
Battery	24V / 50Ah lithium-ion
Internal charger	24V / 20A
Lift motor	2.2 kW
Drive motor	DC drive motor
Service weight	1,470 lb

FAQ

How much can the EB14C-138Li lift, and how high?

It carries up to 3,000 lb at a 20-inch load center and raises loads to 138 inches — 11.5 feet.

What kind of battery does it use?

A 24V/50Ah lithium-ion battery. A 24V/20A charger is built into the unit, so it recharges on board without a separate charging station.

What is the dual damping drive system?

It is a damping system built into the drive that improves handling performance, efficiency, and operator comfort — particularly through directional changes and repeated cycling.

What floors is it suited for?

The polyurethane wheels are matched to smooth, finished indoor floors — warehouse aisles, stock rooms, loading docks, and manufacturing floors.

Will it fit my pallets and loads?

The straddle legs adjust from 35.4 to 51.2 inches and the forks adjust from 8.7 to 32.1 inches across, so the stacker can be set to a range of pallet and load widths. Forks lower to 2.6 inches to enter standard pallets.

What space does it need to maneuver?

The stacker has a 57.5-inch turning radius, a 73.7-inch overall length, and a 61-inch maximum overall width. With the mast lowered to 94.2 inches, it moves between work areas without the full raised mast height.

Documents

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
