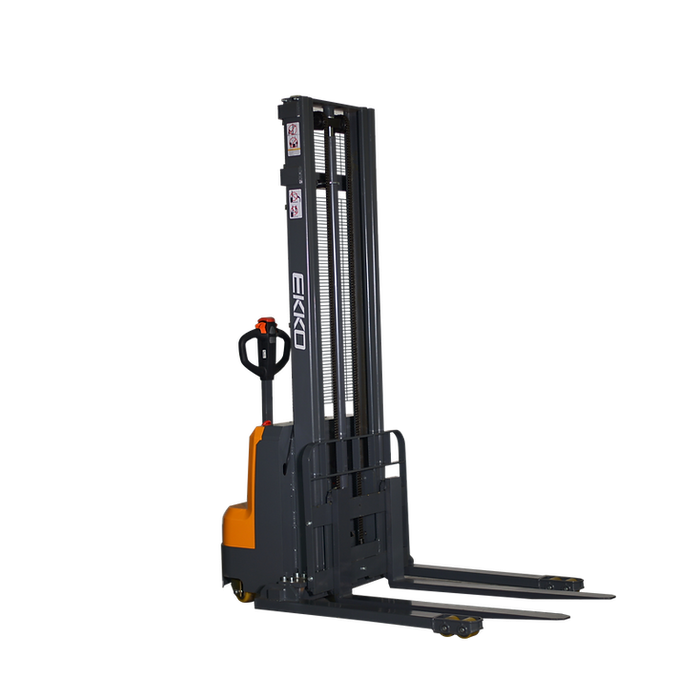

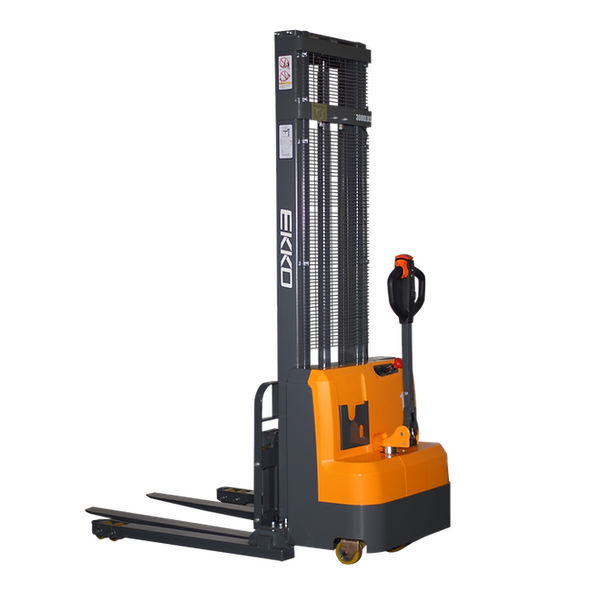

EKKO EB14C-138 Full Powered Straddle Stacker 3000 lb. Cap., 138" Height

Name: EKKO EB14C-138 Full Powered Straddle Stacker 3000 lb. Cap., 138" Height
Brand: EKKO Lifts
SKU: EB14C-138
Price: 5888.0 USD
Availability: InStock

SKU EB14C-138

In Stock

$5,888.00 - $5,888.00

$5,888.00

$5,888.00 - $5,888.00

$5,888.00

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

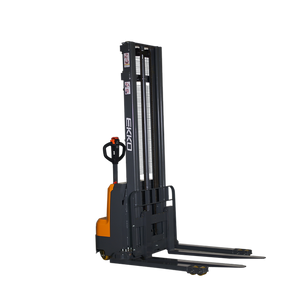

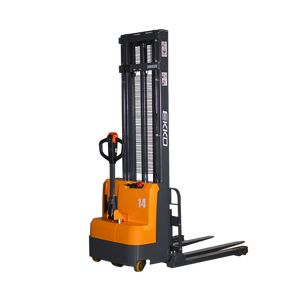

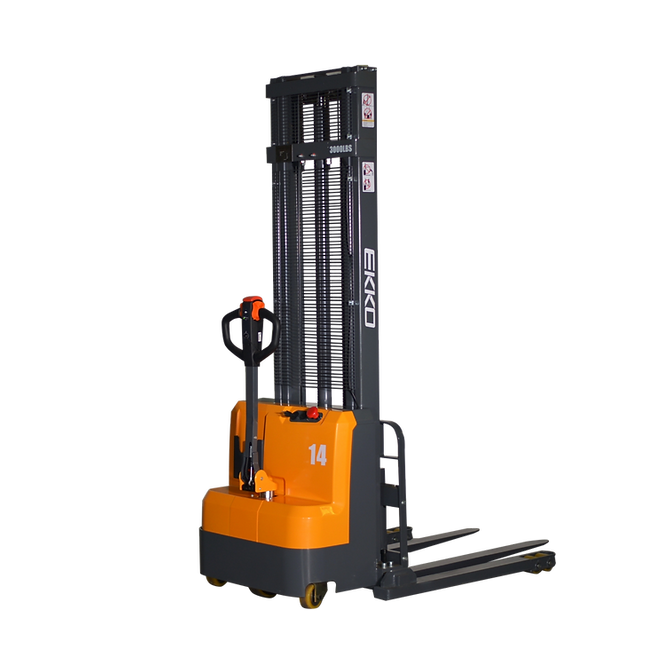

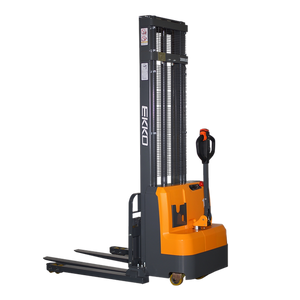

The EKKO EB14C-138 is a full-powered electric straddle stacker that lifts 3,000 lb to a raised height of 138 inches (11.5 feet), combining the versatility of a forklift, a reach truck, and a walkie stacker in a single walk-behind unit. It is built for loading and unloading trucks, working loading docks, and moving stock through stock rooms, manufacturing floors, and general warehousing.

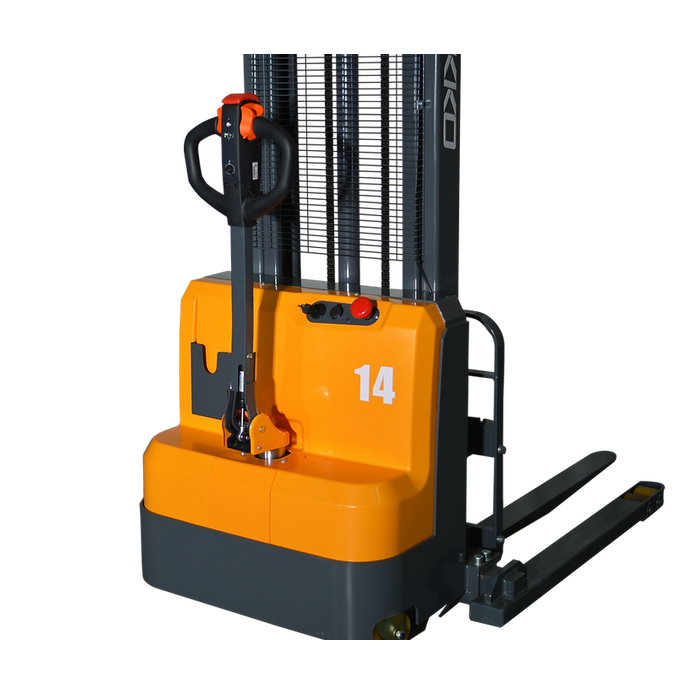

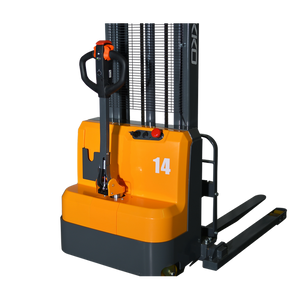

Power comes from a 24V/85Ah battery driving a DC travel motor and a 2.2 kW lift motor, managed by a Curtis Instruments controller. An internal 24V/10A charger is built into the unit, so it recharges on board without a separate charging station. The stacker rides on polyurethane wheels suited to smooth, finished warehouse floors, and the ergonomic tiller handle keeps travel, lift, and lowering controls under one hand.

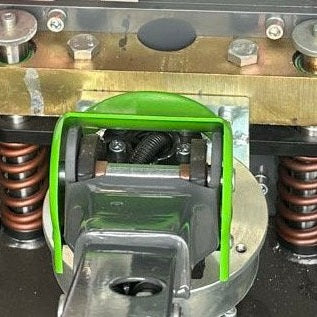

A dual damping drive system improves handling performance, operational efficiency, and operator comfort through directional changes and repeated cycling. Steel construction and durable drive components back it up for sustained daily material handling work.

Features

3,000 lb load capacity at a 20-inch load center, raised to 138 inches (11.5 feet)
Dual damping drive system for smoother handling, efficiency, and operator comfort
Curtis Instruments controller for consistent travel and lift control
2.2 kW lift motor with a DC drive motor
24V/85Ah battery with a built-in 24V/10A internal charger — onboard charging, no separate charging station
Polyurethane wheels matched to smooth, finished indoor floors
Adjustable forks: 45.3-inch length, 4-inch single-fork width, 8.7 to 32.1-inch outer width range
Adjustable straddle legs from 35.4 to 51.2 inches to span varied pallet and load widths

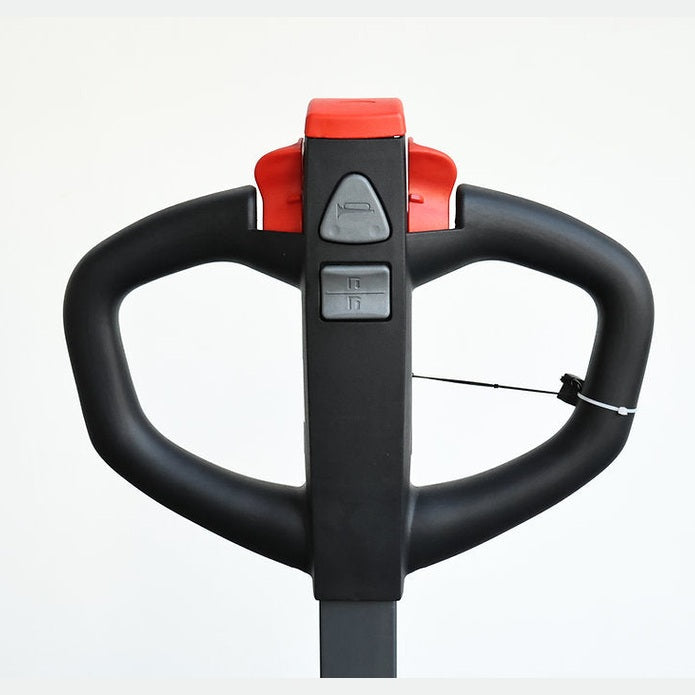

Ergonomic tiller handle with travel, lift, and lowering controls in one hand
Steel construction rated for repeated impact and directional changes

Specifications

EKKO EB14C-138 Straddle Stacker Specifications
Model	EB14C-138
Load capacity	3,000 lb
Max lifting height	138" (11.5 ft)
Load center distance	20"
Fork length	45.3"
Single fork width	4"
Fork adjustment width	8.7" – 32.1"
Lowered fork height	2.6"
Adjustable leg width	35.4" – 51.2"
Turning radius	57.5"
Overall length	73.7"
Max overall width	61"
Extended mast height	166.9"
Lowered mast height	94.2"
Battery	24V / 85Ah
Internal charger	24V / 10A
Lift motor	2.2 kW
Drive motor	DC drive motor
Service weight	1,470 lb

FAQ

How much can the EB14C-138 lift, and how high?

It carries up to 3,000 lb at a 20-inch load center and raises loads to 138 inches — 11.5 feet.

What is the dual damping drive system?

It is a damping system built into the drive that improves handling performance, operational efficiency, and operator comfort — particularly through directional changes and repeated cycling.

Is a charger included?

Yes. A 24V/10A charger is built into the unit, so it recharges the 24V/85Ah battery on board without a separate charging station.

What floors is it suited for?

The polyurethane wheels are matched to smooth, finished indoor floors — warehouse aisles, stock rooms, loading docks, and manufacturing floors.

Will it fit my pallets and loads?

The straddle legs adjust from 35.4 to 51.2 inches and the forks adjust from 8.7 to 32.1 inches across, so the stacker can be set to a range of pallet and load widths. Forks lower to 2.6 inches to enter standard pallets.

What space does it need to maneuver?

The stacker has a 57.5-inch turning radius, a 73.7-inch overall length, and a 61-inch maximum overall width. With the mast lowered to 94.2 inches, it moves between work areas without the full raised mast height.
