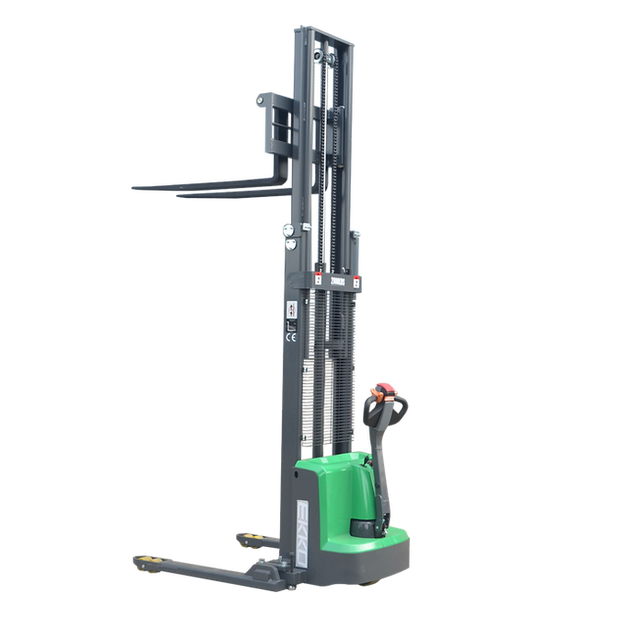

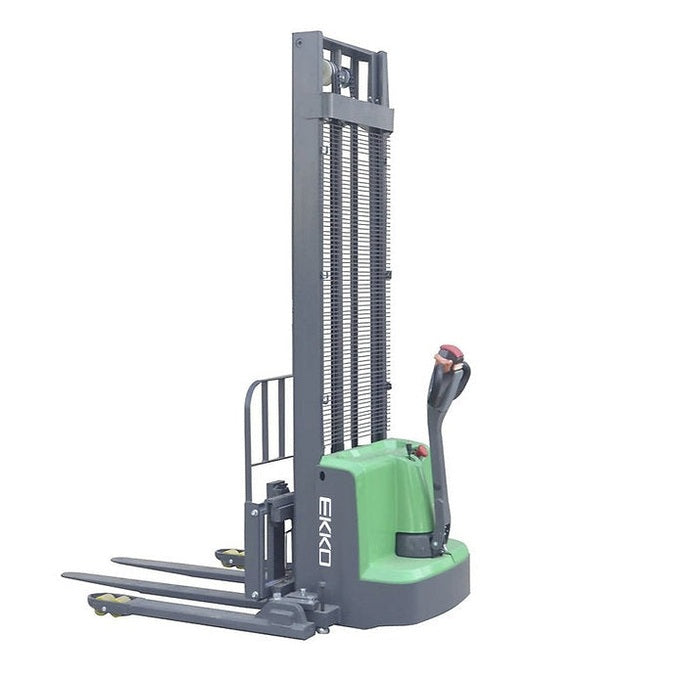

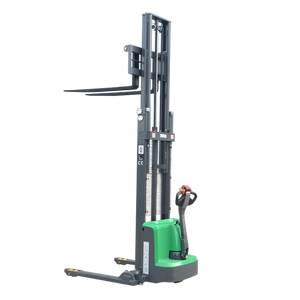

EKKO EB13ES-Li Lithium Straddle Stacker 2800 lb Cap., 119" Height, Side Shift

The EKKO EB13ES-Li is a lithium-powered walkie straddle stacker that lifts 2,800 lb at a 24-inch load center to a fork height of 119 in (about 9.9 ft). The operator walks behind it, and the straddle legs pass on either side of the load while the forks carry it — a compact footprint for loading and unloading trucks, working loading docks, and moving pallets through stock rooms, manufacturing floors, and general warehouse storage.

It carries an integrated side shift, so the forks move laterally to line up with a pallet without repositioning the whole truck — useful when squaring up to racking or a trailer. Power comes from a 24V / 50Ah lithium battery with a built-in 24V / 15A charger; the sealed lithium pack needs none of the watering or equalizing that flooded lead-acid batteries require and can be topped up between tasks rather than swapped. A 3-year limited warranty backs the unit.

It rides on polyurethane wheels and drives off a 24-volt center-drive motor, which suits smooth indoor concrete rather than broken outdoor ground.

• 2,800 lb capacity at a 24-inch load center, lifting to 119 in.
• Integrated side shift to align the forks with the load laterally.
• 24V / 50Ah lithium battery with a built-in 24V / 15A charger — sealed and maintenance-free.
• 24V center-drive motor rated 0.75 kW, paired with a 2.2 kW lift motor.
• Curtis instrument controller managing drive and lift functions.
• Adjustable forks that span from 8.3 in to 33.5 in to match different pallet and load widths, on 45.3-in forks.
• Adjustable straddle legs (outriggers) to fit varied load footprints.
• Polyurethane drive and load wheels for clean, low-marking travel on smooth indoor floors.
• Steel chassis and mast with robotic welding for repeatable, consistent construction.
• Ergonomic tiller handle with walk-behind controls.

The EB13ES-Li carries a 3-year limited warranty.

What does the side shift do?

The side shift lets the fork carriage move left and right so the operator can line the forks up with a pallet or a rack opening without repositioning the entire stacker — it saves repeated back-and-forth when squaring up to a load.

What battery does it use, and is the charger built in?

It runs on a 24V / 50Ah lithium battery with a built-in 24V / 15A charger. The sealed lithium pack does not need the watering or equalizing that flooded lead-acid batteries require.

How high does it lift, and how much can it carry?

The forks raise to 119 in (about 9.9 ft), and the unit is rated for 2,800 lb at a 24-inch load center. The mast stands 82 in collapsed and extends to 135 in.

Will the forks fit my pallets?

The forks are 45.3 in long and 4 in wide each, and the spread adjusts from 8.3 in to 33.5 in to match different pallet and load widths.

Is it for indoor or outdoor use?

It runs on polyurethane wheels and a 24-volt electric drive, which suits smooth indoor concrete — warehouses, docks, and stock rooms — rather than broken or uneven outdoor ground.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
