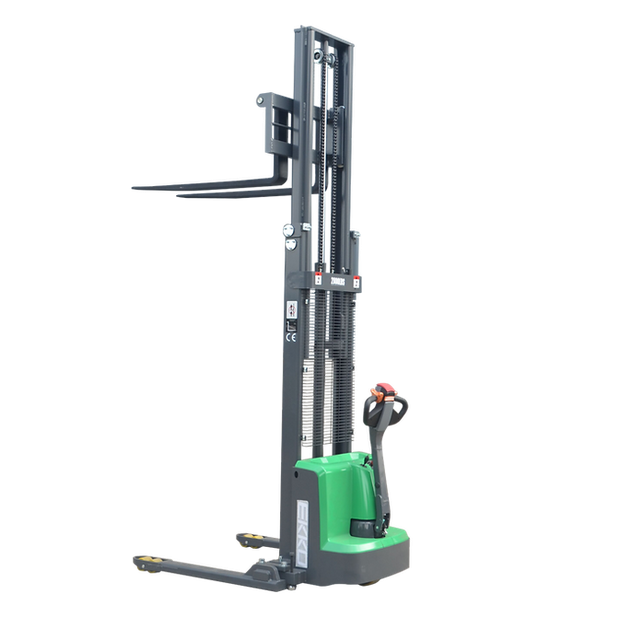

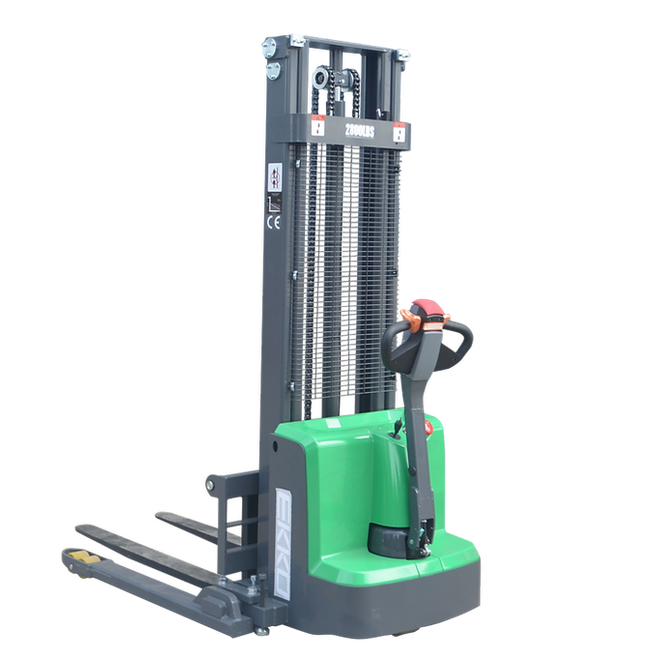

EKKO EB13E-Li Lithium Electric Straddle Stacker 2800 lb Cap., 119" Height

Name: EKKO EB13E-Li Lithium Electric Straddle Stacker 2800 lb Cap., 119" Height
Brand: EKKO Lifts
SKU: EB13E-Li
Price: 5888.0 USD
Availability: InStock

SKU EB13E-Li

In Stock

$5,888.00 - $5,888.00

$5,888.00

$5,888.00 - $5,888.00

$5,888.00

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

The EKKO EB13E-Li is a lithium-powered electric straddle stacker rated to lift 2,800 lbs to a raised height of 119 inches — just under 10 feet. Its straddle-leg design draws on the forklift, the reach truck, and the walkie stacker at once, putting powered lift and powered travel behind a pedestrian operator who walks the load into place. It is built for loading and unloading trucks, working loading docks, and moving palletized stock across stock rooms, manufacturing floors, and general warehousing.

The chassis is steel, joined with robotic welding for repeatable joint quality, and rolls on polyurethane wheels suited to smooth indoor floors. Power comes from a 24V / 50Ah lithium battery driving a 24V center-drive motor and a 24V lift motor, managed by a Curtis Instrument controller. An onboard 24V / 15A internal charger keeps the unit self-contained, and at a service weight of 1,325 lbs it stays light for its lift class.

The forks measure 45.3 inches long at a rated 24-inch load center. Overall fork width adjusts from 8.3 to 33.5 inches to match different pallet and load footprints, and the straddle legs adjust outward to fit over a range of load widths, with a fixed leg length of 36.5 inches.

Features

2,800 lb capacity at a 24-inch load center, lifting to 119 inches
24V / 50Ah lithium battery with an onboard 24V / 15A internal charger
Full-powered electric lift and electric drive — no manual pumping or pushing
24V center-drive motor and 24V lift motor managed by a Curtis Instrument controller
Adjustable forks (8.3–33.5 in overall width) and adjustable straddle legs to fit varied loads
Polyurethane wheels for smooth indoor floors
Steel construction with robotic welding
Ergonomic tiller handle and controls

Specifications

EKKO EB13E-Li Lithium Electric Straddle Stacker Specifications
Load capacity	2,800 lbs
Maximum lift height	119 in
Load center	24 in
Fork length	45.3 in
Single fork width	4 in
Overall fork width (adjustable)	8.3-33.5 in
Lowered fork height	2.35 in
Fixed leg length	36.5 in
Turning radius	52.6 in
Overall length	70 in
Maximum overall width	61 in
Extended mast height	135 in
Lowered mast height	82 in
Battery	24V / 50Ah lithium
Internal charger	24V / 15A
Lift motor	2.2 kW
Lift speed (laden / unladen)	92 / 136 mm/s
Lowering speed (laden / unladen)	112 / 98 mm/s
Drive motor	0.75 kW
Travel speed (laden / unladen)	4.0 / 4.2 km/h
Controller	Curtis Instrument
Wheels	Polyurethane
Service weight	1,325 lbs

Warranty

The EKKO EB13E-Li is covered by a 3-year limited warranty.

FAQ

What is the rated capacity?

2,800 lbs at a 24-inch load center.

How high does the EB13E-Li lift?

To a raised height of 119 inches — just under 10 feet.

What battery does it use?

A 24V / 50Ah lithium battery, with an onboard 24V / 15A internal charger.

Will the forks fit my pallets?

The forks are 45.3 inches long and adjust from 8.3 to 33.5 inches of overall width, and the straddle legs adjust to fit over a range of load widths.

Documents

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
