EKKO EB13E-145Li Lithium Straddle Stacker 2800 lb Cap., 145" Height

Name: EKKO EB13E-145Li Lithium Straddle Stacker 2800 lb Cap., 145" Height
Brand: EKKO Lifts
SKU: EB13E-145Li
Price: 7748.0 USD
Availability: InStock

SKU EB13E-145Li

In Stock

$7,748.00 - $7,748.00

$7,748.00

$7,748.00 - $7,748.00

$7,748.00

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

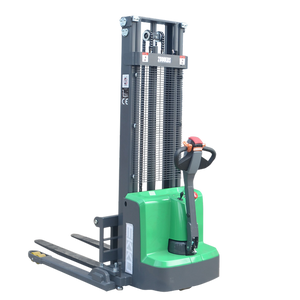

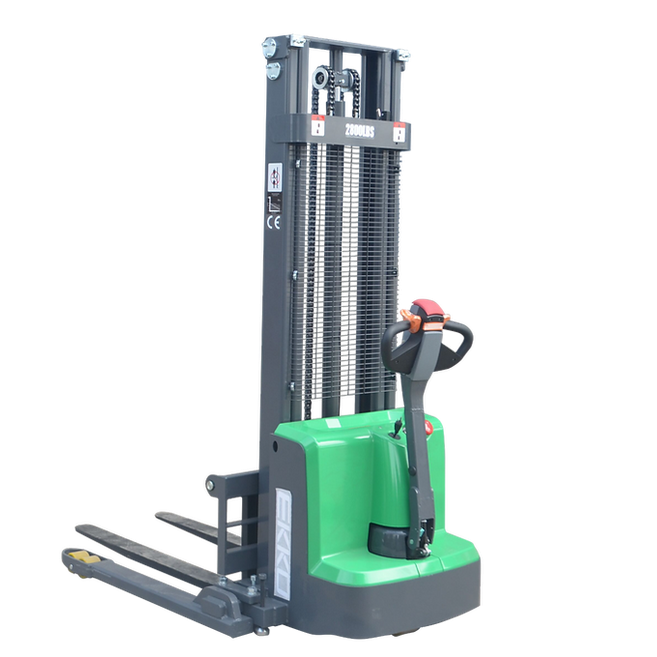

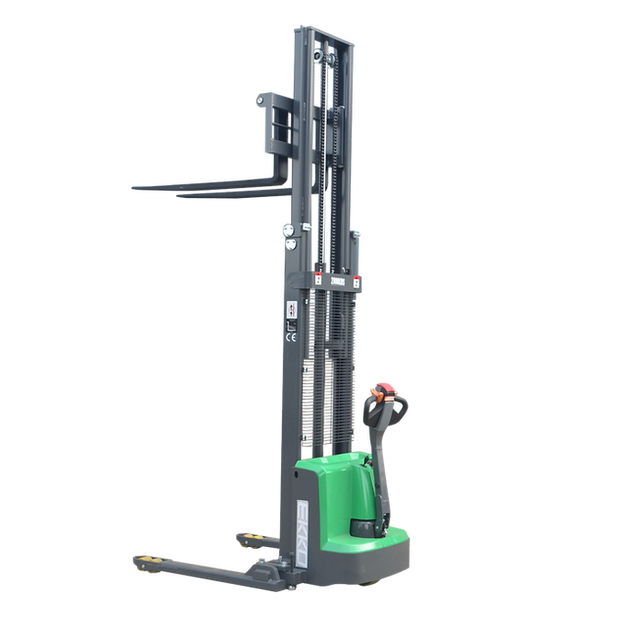

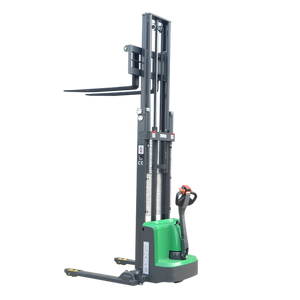

The EKKO EB13E-145Li is a lithium-powered straddle stacker built to lift 2,800 lb to a maximum height of 145 inches at a 24-inch load center. It pairs real stacking reach with a pedestrian-controlled walkie format, which suits it to loading and unloading trucks, working loading docks, and moving stock across stock rooms, manufacturing floors, and warehouse aisles.

The straddle layout sets two adjustable support legs on the floor outside the load while the forks lift from the center. With forks that adjust from 8.3 to 33.5 inches in overall width, the EB13E-145Li handles a range of pallet and load sizes instead of a single fixed footprint.

Power comes from a 24V/50Ah lithium-ion battery with a built-in 24V/15A charger, so there is no separate charging station to buy or store. A Curtis instrument controller runs the 2.2 kW lift motor and 0.75 kW center drive motor. The stacker rides on polyurethane wheels sized for smooth, finished indoor floors, the frame is steel joined with robotic welding, and the unit is backed by a 3-year limited warranty.

Features

2,800 lb capacity to a 145-inch maximum lift height at a 24-inch load center
24V/50Ah lithium-ion battery with an integrated 24V/15A charger — no external charging station required
Curtis instrument controller managing a 2.2 kW lift motor and a 0.75 kW center drive motor
Adjustable forks, 8.3 to 33.5 inches overall width, for varied pallet and load sizes
Straddle-leg base for stable lifting around the load footprint
Polyurethane wheels for smooth, finished indoor floors
Steel construction joined with robotic welding
Ergonomic tiller handle and controls for pedestrian operation

Specifications

EKKO EB13E-145Li Specifications
Load capacity	2,800 lb
Load center distance	24 in
Maximum lift height	145 in
Fork length	45.3 in
Single fork width	4 in
Overall fork width (adjustable)	8.3 to 33.5 in
Lowered fork height	2.35 in
Fixed leg length	36.5 in
Turning radius	52.6 in
Overall length	70 in
Overall width (max)	61 in
Extended mast height	167 in
Lowered mast height	95.66 in
Battery	24V / 50Ah lithium-ion
Integrated charger	24V / 15A
Lift motor	2.2 kW
Drive motor	0.75 kW
Lift speed (laden / unladen)	92 / 136 mm/s
Lowering speed (laden / unladen)	112 / 98 mm/s
Travel speed (laden / unladen)	4.0 / 4.2 km/h
Wheels	Polyurethane
Service weight	1,390 lb

Warranty

The EB13E-145Li is covered by a 3-year limited warranty. Full warranty terms are available on request.

FAQ

How much can the EB13E-145Li lift, and to what height?

It lifts up to 2,800 lb to a maximum height of 145 inches, rated at a 24-inch load center.

Does it need a separate charger?

No. The 24V/50Ah lithium-ion battery uses a built-in 24V/15A charger, so there is no external charging station to buy or store.

Will it maneuver in my space?

It is a pedestrian-controlled walkie with a 52.6-inch turning radius, a 70-inch overall length, and a maximum overall width of 61 inches.

What is the height when moving it around the facility?

The lowered mast height is 95.66 inches for moving through the facility, and the mast extends to 167 inches at full lift.

Is it suited to indoor or outdoor use?

The polyurethane wheels are intended for smooth, finished indoor floors — loading docks, stock rooms, manufacturing floors, and warehousing.

What warranty does it carry?

The stacker is backed by a 3-year limited warranty.

Documents

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
