EKKO EB13E-138Li Lithium Electric Straddle Stacker 2800 lb Cap., 138" Height

Name: EKKO EB13E-138Li Lithium Electric Straddle Stacker 2800 lb Cap., 138" Height
Brand: EKKO Lifts
SKU: EB13E-138Li
Price: 6198.0 USD
Availability: InStock

SKU EB13E-138Li

In Stock

$6,198.00 - $6,198.00

$6,198.00

$6,198.00 - $6,198.00

$6,198.00

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

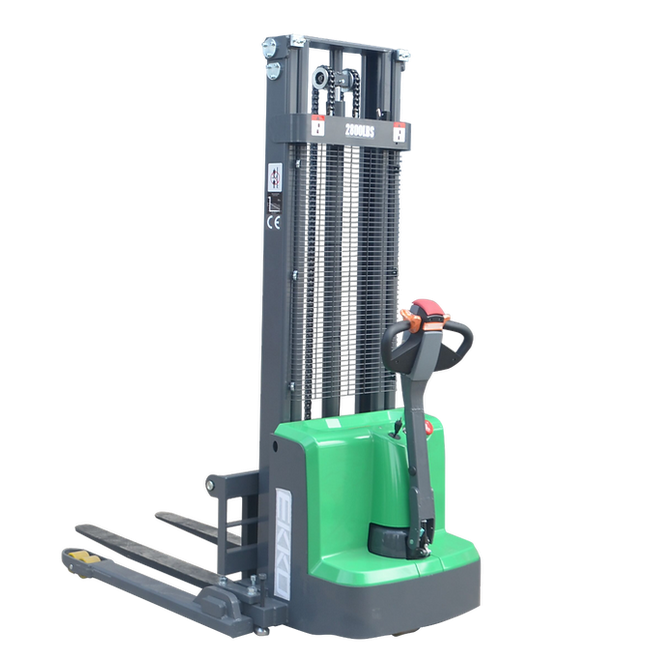

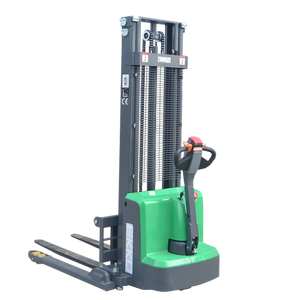

The EKKO EB13E-138Li is a lithium-electric straddle stacker that handles loads up to 2,800 lb and lifts them to a raised fork height of 138". Its straddle-leg design lets the forks reach over and around pallet loads, pairing the lift of a stacker with a compact, walk-behind footprint for loading and unloading trucks, working loading docks, and moving stock through stock rooms, manufacturing floors, and warehouses.

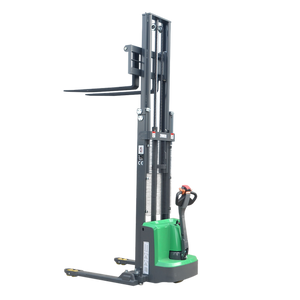

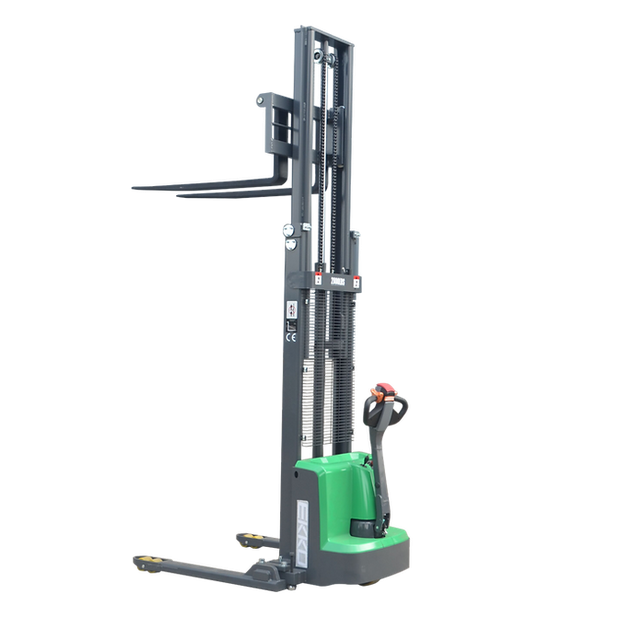

Power comes from an onboard 24V / 50Ah lithium-ion battery with a built-in 24V / 15A charger, so the unit recharges on board without a separate charging station and skips the watering and gassing of lead-acid cells. A Curtis Instruments controller manages the 24V drive and lift motors, and polyurethane wheels suit smooth indoor floors. The mast raises from a lowered height of 91.7" to a fully extended 159.4", and the forks adjust across an 8.3"-33.5" overall width to match different pallet and load sizes.

The chassis is steel, assembled with robotic welding, and an ergonomic tiller groups the drive, lift, and lowering controls within reach for walk-behind operation. The EB13E-138Li is covered by a 3-year limited warranty and joins EKKO's range of lithium-powered material handling equipment.

Features

Lithium-ion power with onboard charging — a 24V / 50Ah lithium battery and built-in 24V / 15A charger remove the need for a separate charging room and the upkeep of lead-acid cells.
2,800 lb capacity to 138" — moves palletized loads from floor level to a 138" raised fork height at a 24" load center.
Adjustable forks — the forks set across an 8.3"-33.5" overall width to fit different pallet and load footprints.
Curtis Instruments controller — manages the 24V drive and lift motors.
Polyurethane wheels — matched to smooth indoor warehouse and dock floors.
Robotic-welded steel construction — a steel chassis assembled with robotic welding.
Ergonomic walk-behind tiller — drive, lift, and lowering controls grouped on the handle for pedestrian operation.

Specifications

EKKO EB13E-138Li Specifications
Load capacity	2,800 lb
Load center	24"
Maximum fork lift height (raised)	138"
Lowered fork height	2.35"
Fork length	45.3"
Single fork width	4"
Overall fork width (adjustable)	8.3" - 33.5"
Fixed leg length	36.5"
Turning radius	52.6"
Overall length	70"
Maximum overall width	61"
Extended mast height	159.4"
Lowered mast height	91.7"
Battery	24V / 50Ah lithium-ion
Internal charger	24V / 15A
Lift motor	2.2 kW
Lift speed (laden / unladen)	92 / 136 mm/s
Lowering speed (laden / unladen)	112 / 98 mm/s
Drive motor	0.75 kW
Drive speed (laden / unladen)	4.0 / 4.2 km/h
Service weight	1,365 lb
Controller	Curtis Instruments
Wheels	Polyurethane
Warranty	3-year limited

Warranty

The EKKO EB13E-138Li is covered by a 3-year limited warranty.

FAQ

Is a charger included?

Yes. The stacker has a built-in 24V / 15A charger, so it recharges on board without a separate charging station.

What battery does it use?

A 24V / 50Ah lithium-ion battery.

How high does it lift, and how much can it carry?

It lifts to a 138" raised fork height and is rated for 2,800 lb at a 24" load center.

Can the forks be adjusted?

Yes. The forks adjust across an 8.3"-33.5" overall width to match different load sizes. Each fork is 4" wide and 45.3" long.

What are the overall dimensions and weight?

The stacker is 70" long and up to 61" wide, with a lowered mast height of 91.7" and a service weight of 1,365 lb.

Documents

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
