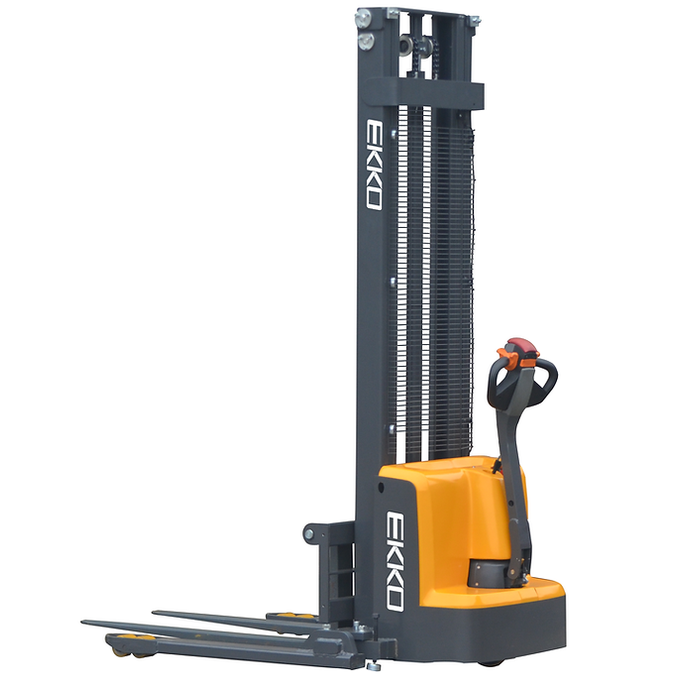

EKKO EB13E-138 Full Powered Straddle Stacker 2800 lb Cap., 138" Height

Name: EKKO EB13E-138 Full Powered Straddle Stacker 2800 lb Cap., 138" Height
Brand: EKKO Lifts
SKU: EB13E-138
Price: 6043.0 USD
Availability: InStock

SKU EB13E-138

In Stock

$6,043.00 - $6,043.00

$6,043.00

$6,043.00 - $6,043.00

$6,043.00

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

The EKKO EB13E-138 is a fully powered electric straddle stacker that brings together the reach of a forklift, the height of a reach truck, and the compact, walk-behind footprint of a walkie stacker. It carries 2,800 lbs at a 24-inch load center and raises forks to 138 inches, with straddle outrigger legs that support the load instead of a heavy rear counterweight. It suits loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and general warehousing.

Adjustable straddle legs and adjustable forks let the EB13E-138 work around a range of pallet and load sizes, and the unit turns within a 52.6-inch radius for tight aisles. Both drive and lift are 24-volt electric, and the stacker ships ready to charge and run with its battery and on-board charger.

Features

Straddle outrigger design — adjustable straddle legs carry the load on outrigger wheels rather than a counterweight, keeping the chassis compact and the service weight low.
Telescoping steel mast — lifts to 138 inches, extends to a 154-inch overall mast height, and lowers to 92 inches for travel and storage.
24V electric drivetrain — a 0.75 kW center-drive motor moves the unit and a separate 2.2 kW motor powers the hydraulic lift.
Curtis Instrument controller — handles drive and lift control across the speed range.
Adjustable forks — 45.3-inch forks adjust from 8.3 to 33.5 inches in overall width to fit varied pallet sizes.
Polyurethane wheels — for smooth indoor floors.
Robotic-welded steel construction — robotic welding and steel build for repeatable joint strength.

What's Included

2 x 12V / 100Ah battery (24V)
On-board 24V / 15A charger

The EB13E-138 has a built-in charger and runs on its 24-volt battery pack, so the stacker is ready to charge and run on delivery.

Specifications

EKKO EB13E-138 Straddle Stacker Specifications
Load capacity	2,800 lbs
Load center	24 in
Max lift height	138 in
Extended mast height	154 in
Lowered mast height	92 in
Overall length	70 in
Max overall width	61 in
Turning radius	52.6 in
Fork length	45.3 in
Single fork width	4 in
Overall fork width	8.3–33.5 in
Lowered fork height	2.35 in
Fixed leg length	36.5 in
Drive motor	24V center drive, 0.75 kW (750 W)
Travel speed	2.5 mph laden / 2.6 mph unladen
Lift motor	24V, 2.2 kW (2,200 W)
Lift speed	3.6 in/s laden / 5.4 in/s unladen
Lowering speed	4.4 in/s laden / 3.9 in/s unladen
Battery	2 x 12V / 100Ah (24V)
On-board charger	24V / 15A
Controller	Curtis Instrument
Wheels	Polyurethane
Service weight	1,450 lbs

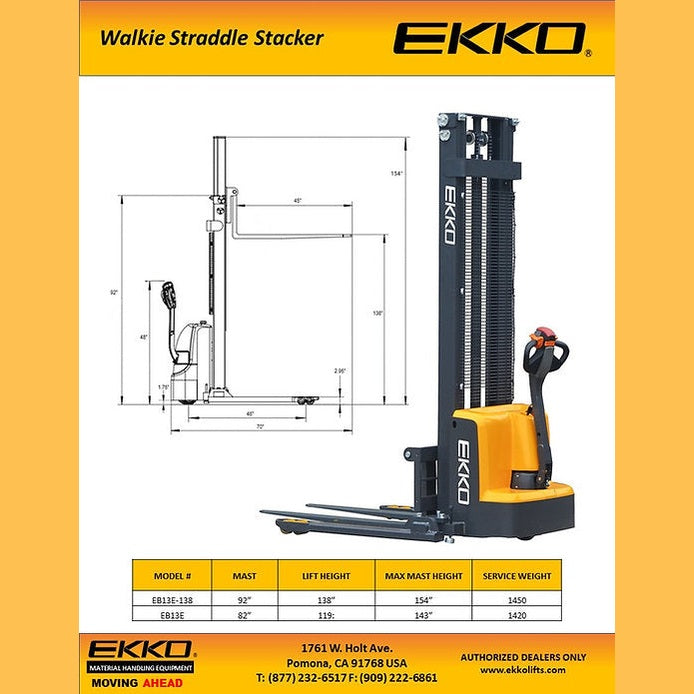

EKKO EB13E-138 dimension diagram showing 138 in lift, 154 in max mast, 70 in length — EB13E-138 dimensions: 138 in lift, 154 in extended mast, 92 in lowered, 70 in length.

Warranty

The EB13E-138 is covered by a 3-year limited warranty.

FAQ

How is a straddle stacker different from a counterbalance unit?

The EB13E-138 uses adjustable outrigger legs that extend forward beneath the load, so the legs and their wheels carry the weight instead of a rear counterweight. That keeps the chassis compact and the service weight low at 1,450 lbs while still lifting 2,800 lbs.

Does the operator ride on the stacker?

No. The EB13E-138 is a walk-behind unit — the operator walks with it and controls lifting, lowering, travel, and the horn from the ergonomic tiller handle.

What floor surfaces is it built for?

The EB13E-138 runs on polyurethane wheels, well suited to the smooth, flat concrete of warehouses, loading docks, and stock rooms.

Documents

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
