EKKO EB13CD Full Powered Fork Over Stacker 2800 lb Cap., 118" Height

The EKKO EB13CD is a full-powered electric fork-over stacker rated to lift 2,800 lb to a raised fork height of 118 inches. It combines the reach of a forklift, the height of a reach truck, and the footprint of a walk-behind stacker in one machine — sized for loading and unloading trucks, working loading docks, and moving stock through stock rooms, manufacturing floors, and warehouse racking.

Both travel and lift are powered: a 0.75 kW drive motor moves the stacker under its own power, and a 2.2 kW lift motor raises the forks, all on a 24-volt system. A 24V/15A charger is built into the unit, so it recharges from a standard outlet without a separate charging station. The frame is steel with a robotic-welded build, and polyurethane drive and load wheels suit the smooth concrete floors of indoor warehouse and dock work. Ships via LTL freight — reach out to arrange delivery scheduling.

• 2,800 lb capacity at a 24-inch load center
• Raised fork height of 118 inches; mast extends to 147.6 inches and retracts to 82.3 inches for travel and low-clearance storage
• Full-powered drive (0.75 kW) and lift (2.2 kW) on a 24-volt system
• Built-in 24V/15A charger recharges the 2×12V/85Ah battery from a standard outlet, with no external charging station required
• Fixed straddle legs with fork-over forks, 45.28 inches long (5.59-inch single fork width; 11.8 / 26.8-inch inner / outer spread)

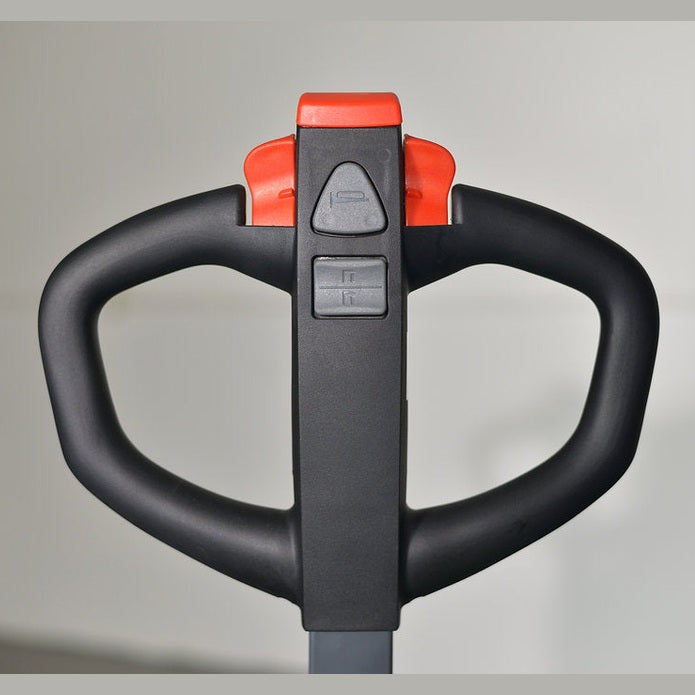

• Ergonomic tiller handle with thumb-operated lift, lower, and travel controls
• Polyurethane drive and load wheels for smooth indoor floors
• Steel construction with a robotic-welded frame

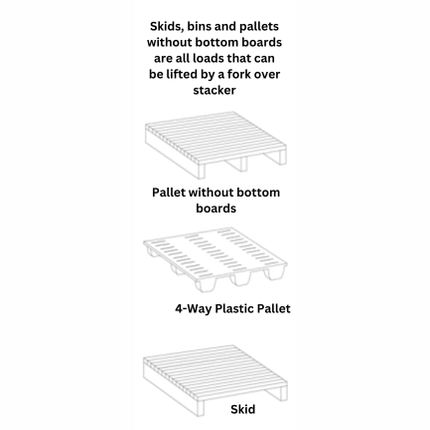

The fork-over design places the forks above a pair of fixed straddle legs, so the forks sit over the load rather than slotting between it. That lets the EB13CD handle loads a straddle stacker's legs can't fit under — skids, bins, and pallets without bottom boards, including 4-way plastic pallets and open skids. With a 55.1-inch turning radius and a 71.7-inch overall length, confirm the stacker fits your aisle and dock layout before ordering.

Is a charger included?

Yes. A 24V/15A charger is built into the stacker, so it recharges the 2×12V/85Ah battery from a standard outlet without a separate charging station.

What loads can a fork-over stacker handle?

Because the forks sit above fixed straddle legs, the EB13CD lifts skids, bins, and pallets without bottom boards — including 4-way plastic pallets and open skids — loads whose construction blocks a straddle stacker's legs.

How high does it lift?

The forks raise to 118 inches. The mast itself extends to 147.6 inches when raised and retracts to 82.3 inches for travel and low-clearance storage.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
