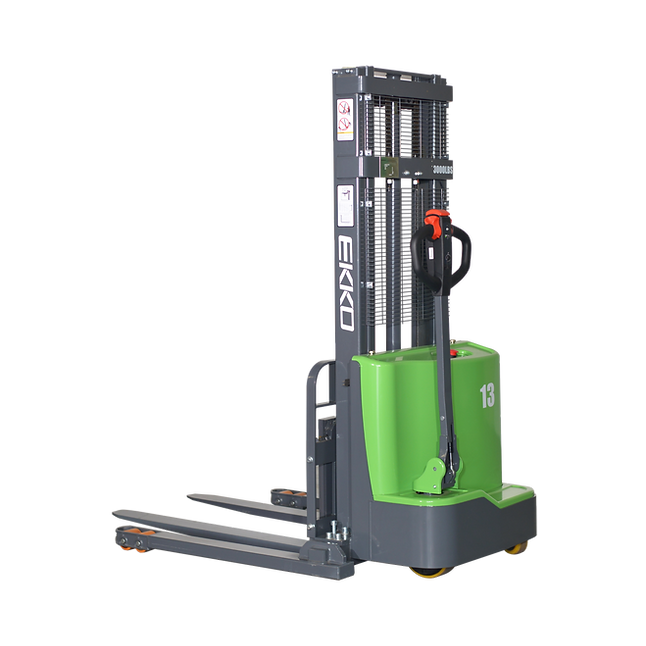

EKKO EB13C-98Li Lithium Straddle Stacker 2800 lb Cap., 98" Height

Name: EKKO EB13C-98Li Lithium Straddle Stacker 2800 lb Cap., 98" Height
Brand: EKKO Lifts
SKU: EB13C-98Li
Price: 5888.0 USD
Availability: InStock

SKU EB13C-98Li

In Stock

$5,888.00 - $5,888.00

$5,888.00

$5,888.00 - $5,888.00

$5,888.00

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

The EKKO EB13C-98Li is a lithium straddle stacker that handles loads up to 2,800 lb and lifts them to a raised fork height of 98". Its straddle-leg design lets the forks reach over and around pallet loads, pairing the lift of a stacker with a compact, walk-behind footprint for loading and unloading trucks, working loading docks, and moving stock through stock rooms, manufacturing floors, and warehouses.

Power comes from an onboard 24V / 50Ah lithium-ion battery with a built-in 24V / 20A charger, so the unit recharges on board without a separate charging station and skips the watering and gassing of lead-acid cells. A Curtis Instruments controller manages the DC drive and lift motors, and polyurethane wheels suit smooth indoor floors. The mast raises from a lowered height of 75.2" to a fully extended 127.6", and the forks adjust across an 8.6"-32.1" overall width to match different pallet and load sizes.

The chassis is steel, and an ergonomic tiller groups the drive, lift, and lowering controls within reach for walk-behind operation. The EB13C-98Li sits in EKKO's range of lithium-powered material handling equipment.

Features

Lithium-ion power with onboard charging — a 24V / 50Ah lithium battery and built-in 24V / 20A charger remove the need for a separate charging room and the upkeep of lead-acid cells.
2,800 lb capacity to 98" — moves palletized loads from floor level to a 98" raised fork height at a 24" load center.
Adjustable forks and straddle legs — the forks set across an 8.6"-32.1" overall width and the straddle legs across 35.4"-51.2" to fit different pallet and load footprints.
Curtis Instruments controller — manages the DC drive and lift motors.
Polyurethane wheels — matched to smooth indoor warehouse and dock floors.
Steel construction — a steel chassis and frame.
Ergonomic walk-behind tiller — drive, lift, and lowering controls grouped on the handle for pedestrian operation.

Specifications

EKKO EB13C-98Li Specifications
Load capacity	2,800 lb
Load center	24"
Maximum fork lift height (raised)	98"
Lowered fork height	2.56"
Fork length	45.3"
Single fork width	4"
Overall fork width (adjustable)	8.6" - 32.1"
Adjustable straddle-leg width	35.4" - 51.2"
Turning radius	56.1"
Overall length	73.4"
Maximum overall width	61"
Extended mast height	127.6"
Lowered mast height	75.2"
Battery	24V / 50Ah lithium-ion
Internal charger	24V / 20A
Lift motor	2.2 kW
Drive motor	0.75 kW
Service weight	1,360 lb
Controller	Curtis Instruments
Wheels	Polyurethane

FAQ

Is a charger included?

Yes. The stacker has a built-in 24V / 20A charger, so it recharges on board without a separate charging station.

What battery does it use?

A 24V / 50Ah lithium-ion battery.

How high does it lift, and how much can it carry?

It lifts to a 98" raised fork height and is rated for 2,800 lb at a 24" load center.

Can the forks and straddle legs be adjusted?

Yes. The forks adjust across an 8.6"-32.1" overall width and the straddle legs across 35.4"-51.2" to fit different loads. Each fork is 4" wide and 45.3" long.

What are the overall dimensions and weight?

The stacker is 73.4" long and up to 61" wide, with a lowered mast height of 75.2" and a service weight of 1,360 lb.
