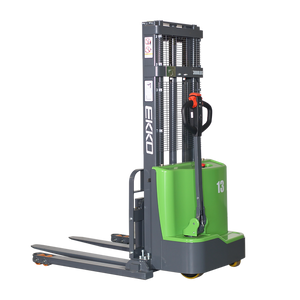

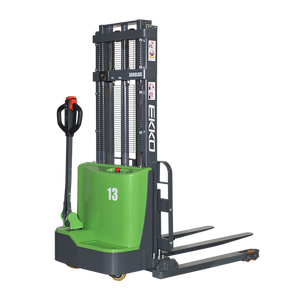

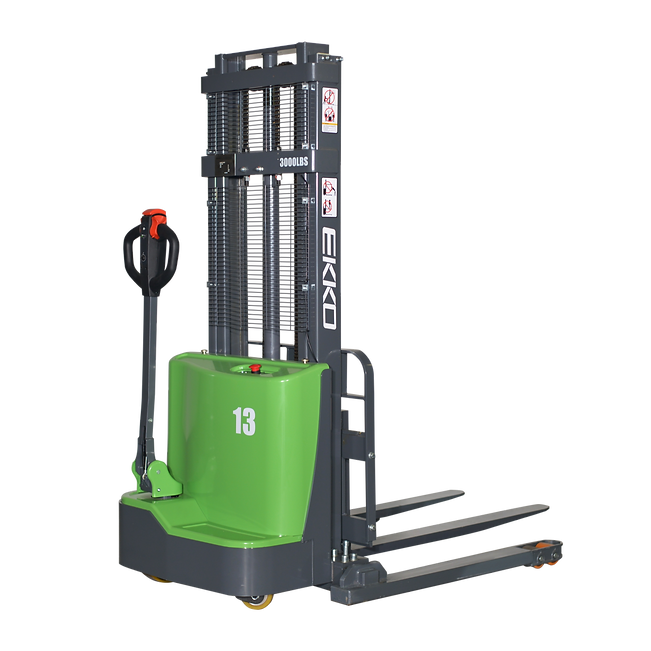

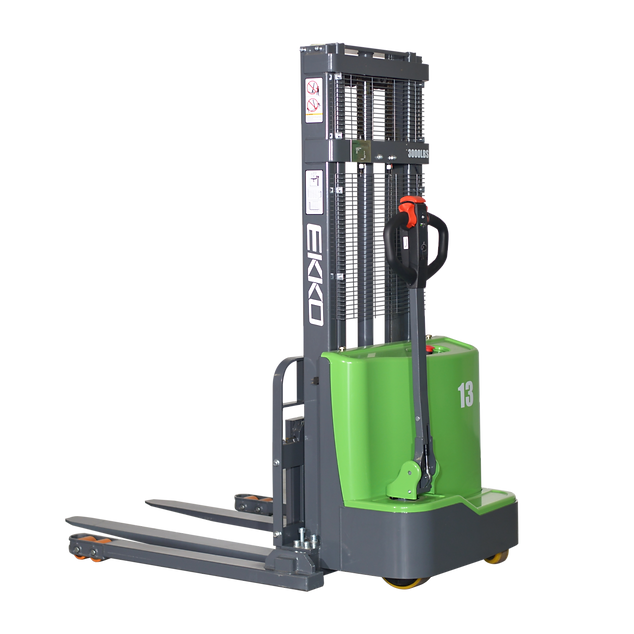

EKKO EB13C-145Li Lithium Straddle Stacker 2800 lb Cap., 145" Height

Name: EKKO EB13C-145Li Lithium Straddle Stacker 2800 lb Cap., 145" Height
Brand: EKKO Lifts
SKU: EB13C-145Li
Price: 7128.0 USD
Availability: InStock

SKU EB13C-145Li

In Stock

$7,128.00 - $7,128.00

$7,128.00

$7,128.00 - $7,128.00

$7,128.00

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

The EKKO EB13C-145Li is a lithium-powered electric straddle stacker rated to lift 2,800 lb to a raised height of 145 inches. It brings together the reach of a forklift, the height of a reach truck, and the walk-behind footprint of a walkie stacker — sized for loading and unloading trucks, working loading docks, and moving stock through stock rooms, manufacturing floors, and warehouse racking.

Travel and lift are both powered: a 0.75 kW DC drive motor moves the stacker under its own power and a 2.2 kW lift motor raises the forks, managed by a Curtis instrument controller on a 24-volt system. The 24V/50Ah lithium battery recharges through a built-in 24V/20A charger from a standard outlet, with no separate charging station. The frame is steel, and polyurethane drive and load wheels suit the smooth concrete floors of indoor warehouse and dock work. Ships via LTL freight — reach out to arrange delivery scheduling.

Features

2,800 lb capacity at a 20-inch load center

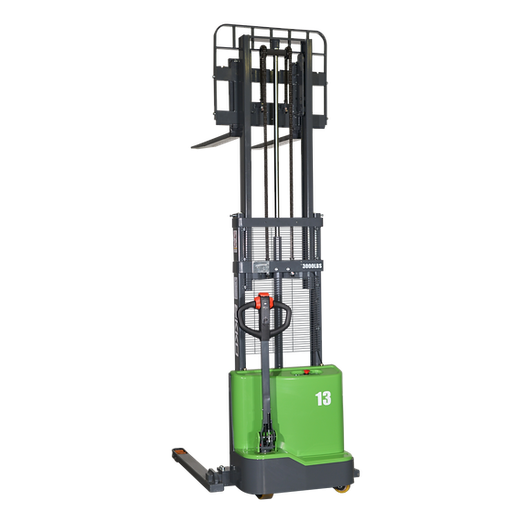

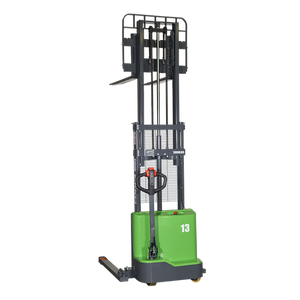

Raised fork height of 145 inches; mast extends to 174.8 inches and retracts to 98.8 inches for travel and low-clearance storage
Lithium 24V/50Ah battery with a built-in 24V/20A charger, recharging from a standard outlet with no external charging station
Curtis instrument controller managing a 0.75 kW DC drive motor and a 2.2 kW lift motor
Adjustable straddle legs (35.4–51.2 inches) and adjustable forks (8.6–32.1 inches) to fit a range of pallet footprints
Forks 45.3 inches long and 4 inches wide, lowering to 2.56 inches
Ergonomic tiller handle with thumb-operated lift, lower, and travel controls
Polyurethane drive and load wheels for smooth indoor floors
Steel construction

Compatibility

As a straddle stacker, the EB13C-145Li carries its load on forks set between two outer legs that straddle the pallet at floor level. Both the legs (35.4–51.2 inches) and the forks (8.6–32.1 inches) adjust, so the stacker can take a range of pallet widths and fork-entry spacings rather than a single fixed size. With a 56.1-inch turning radius, a 73.4-inch overall length, and a 61-inch maximum overall width, confirm the stacker fits your aisle, dock, and pallet layout before ordering.

Specifications

EKKO EB13C-145Li Lithium Straddle Stacker Specifications
Model	EB13C-145Li
Load capacity	2,800 lb
Load center distance	20"
Raised (max lifting) height	145"
Extended mast height	174.8"
Lowered mast height	98.8"
Fork length	45.3"
Single fork width	4"
Fork adjustment width	8.6"–32.1"
Lowered fork height	2.56"
Adjustable legs	35.4"–51.2"
Turning radius	56.1"
Overall length	73.4"
Max overall width	61"
Battery	24V / 50Ah lithium
Internal charger	24V / 20A
Lift motor	2.2 kW
Drive motor	0.75 kW DC
Controller	Curtis
Service weight	1,700 lb
Wheels	Polyurethane

FAQ

Is a charger included?

Yes. A 24V/20A charger is built into the stacker, so the 24V/50Ah lithium battery recharges from a standard outlet without a separate charging station.

Can the forks and legs adjust to different pallet sizes?

Yes. The straddle legs adjust from 35.4 to 51.2 inches and the forks adjust from 8.6 to 32.1 inches, so the stacker fits a range of pallet widths and fork-entry spacings.

How high does it lift?

The forks raise to 145 inches. The mast extends to 174.8 inches when raised and retracts to 98.8 inches for travel and low-clearance storage.

Documents

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
