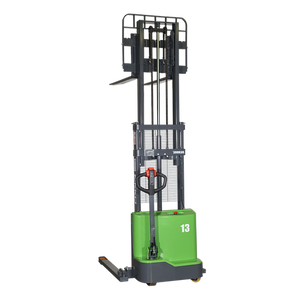

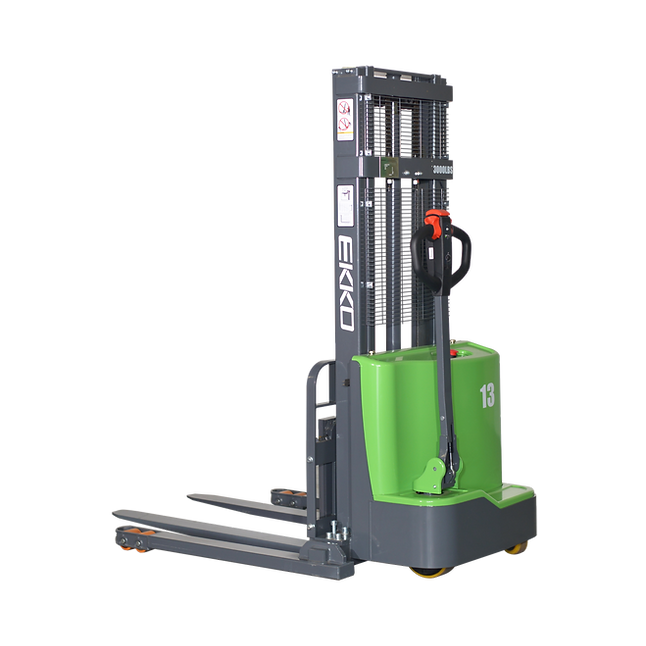

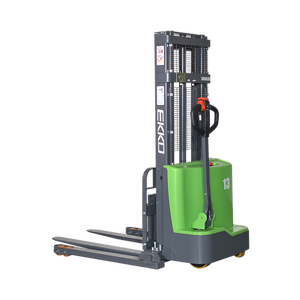

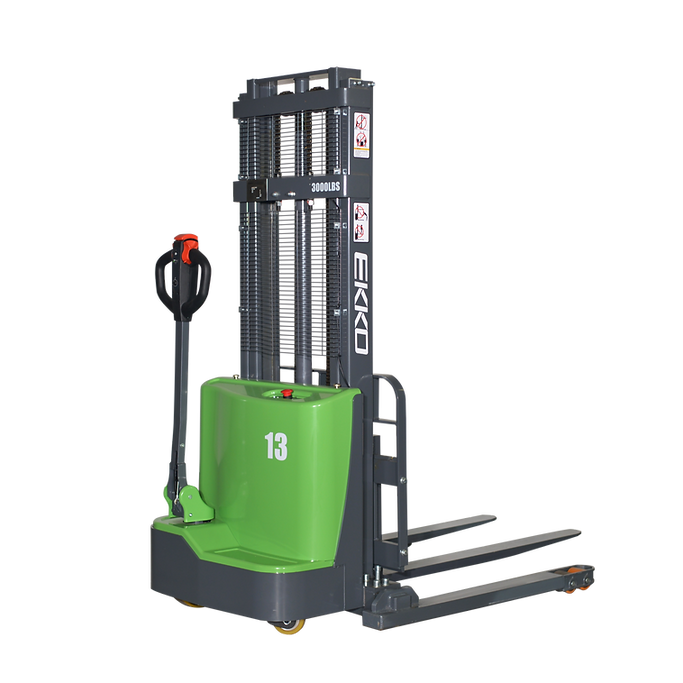

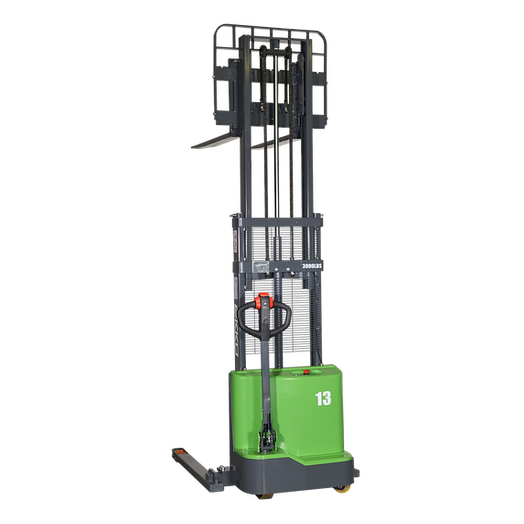

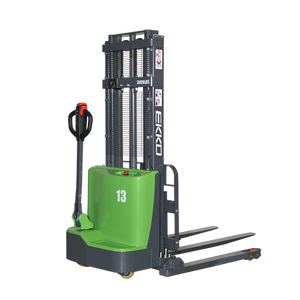

EKKO EB13C-138Li Lithium Straddle Stacker 2800 lb Cap., 138" Height

Name: EKKO EB13C-138Li Lithium Straddle Stacker 2800 lb Cap., 138" Height
Brand: EKKO Lifts
SKU: EB13C-138Li
Price: 6198.0 USD
Availability: InStock

SKU EB13C-138Li

In Stock

$6,198.00 - $6,198.00

$6,198.00

$6,198.00 - $6,198.00

$6,198.00

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

The EKKO EB13C-138Li is a lithium-powered straddle stacker that lifts 2,800 lb to 138 inches — about 11.5 feet — with the maneuverability of a pedestrian walkie and the reach of a much larger truck. Its straddle legs slide out to surround the load, so it handles closed-bottom and skid pallets that a standard stacker can't, while a pedestrian tiller keeps the operator footprint small enough for tight indoor work.

Adjustable forks (8.6 to 32.1 inches) and adjustable straddle legs (35.4 to 51.2 inches) let one machine match pallet widths and load footprints that would otherwise need several. A 24V/50Ah lithium battery and a built-in 24V/20A charger let it recharge from a standard outlet during breaks — no separate charging room, no acid watering or gassing. The drivetrain pairs a 0.75 kW DC drive motor with a 2.2 kW lift motor, both managed by a Curtis instrument controller.

It's built for indoor work — loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehouse put-away. Polyurethane wheels and a 56.1-inch turning radius suit narrow-aisle work, and a steel chassis keeps it square under repeated load cycles. The EB13C-138Li is part of the EKKO Lifts range of electric material handling equipment.

Features

Lithium power with a built-in charger — 24V/50Ah battery and an onboard 24V/20A charger for opportunity charging and no acid maintenance.
Adjustable forks and straddle legs — forks adjust 8.6–32.1 inches and the straddle legs adjust 35.4–51.2 inches to fit varied pallet and load sizes.
Straddle-leg design — legs surround the load for stability and for handling closed-bottom and skid pallets.
Curtis instrument controller — manages a 0.75 kW DC drive motor and a 2.2 kW lift motor.
Polyurethane drive wheels and an ergonomic tiller handle for smooth, level indoor floors.
Steel construction for repeated load cycles.

What's Included

EB13C-138Li straddle stacker
24V/50Ah lithium battery
Built-in 24V/20A charger

Specifications

EKKO EB13C-138Li Specifications
Model	EB13C-138Li
Load capacity	2,800 lb
Load center	24"
Maximum lift height	138"
Fork length	45.3"
Single fork width	4"
Fork adjustment width	8.6" – 32.1"
Lowered fork height	2.56"
Adjustable straddle legs	35.4" – 51.2"
Turning radius	56.1"
Overall length	73.4"
Maximum overall width	61"
Extended mast height	166.9"
Lowered mast height	94.9"
Battery	24V / 50Ah lithium
Onboard charger	24V / 20A
Lift motor	2.2 kW
Drive motor	0.75 kW (DC)
Controller	Curtis instrument controller
Drive wheels	Polyurethane
Service weight	1,400 lb

FAQ

How much can the EB13C-138Li lift, and at what height?

It's rated for 2,800 lb at a 24-inch load center and lifts to a maximum height of 138 inches — about 11.5 feet.

How tight a space can it work in?

It has a 56.1-inch turning radius, an overall length of 73.4 inches, and a maximum overall width of 61 inches.

What battery and charger does it use?

A 24V/50Ah lithium battery powers the stacker, and a 24V/20A charger is built in — recharge from a standard outlet without a dedicated charging room or acid maintenance.

Can the forks and legs adjust for different loads?

Forks adjust from 8.6 to 32.1 inches and the straddle legs adjust from 35.4 to 51.2 inches.

What surfaces is it built for?

It runs on polyurethane wheels for smooth, level indoor floors — loading docks, stock rooms, manufacturing floors, and warehouse put-away.

How is it shipped?

It ships via freight. Contact our team to schedule delivery and confirm freight details for your location.

Documents

Manual and technical documents are available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
