EKKO EB13C-138 Full Powered Straddle Stacker 2800 lb Cap., 138" Height

Name: EKKO EB13C-138 Full Powered Straddle Stacker 2800 lb Cap., 138" Height
Brand: EKKO Lifts
SKU: EB13C-138
Price: 5888.0 USD
Availability: InStock

SKU EB13C-138

In Stock

$5,888.00 - $5,888.00

$5,888.00

$5,888.00 - $5,888.00

$5,888.00

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

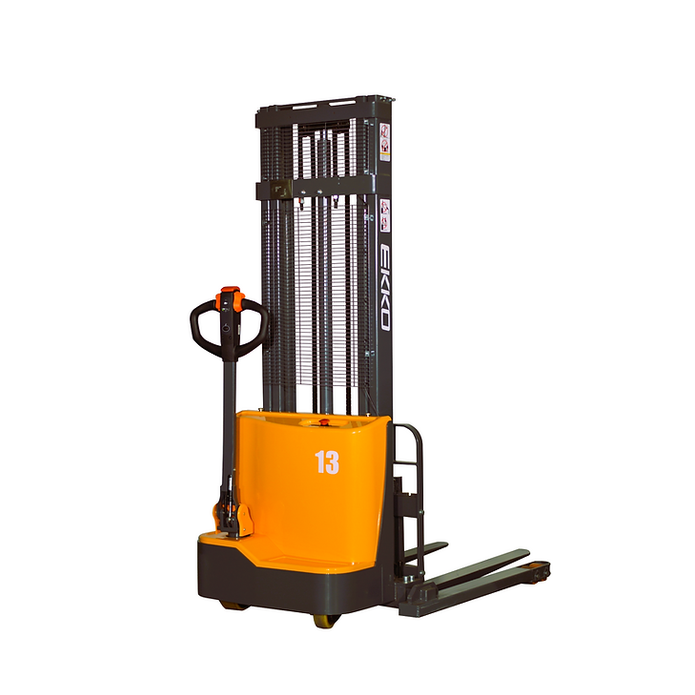

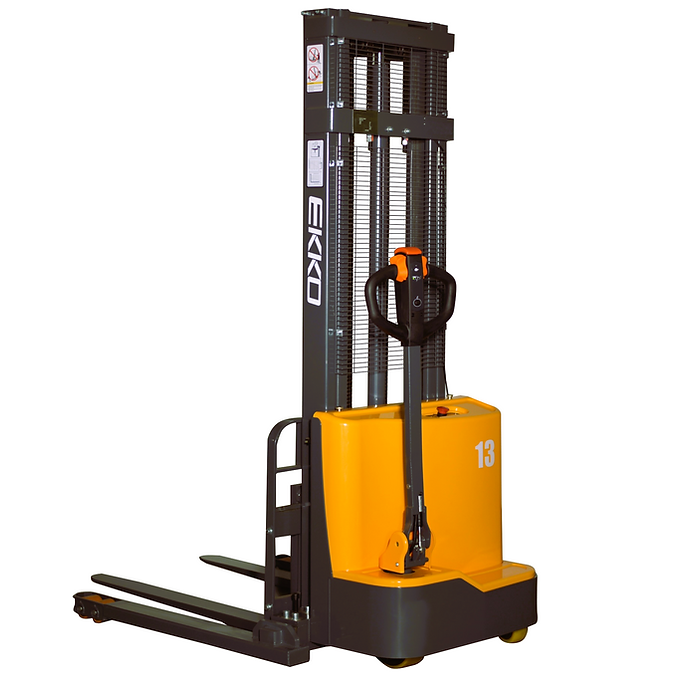

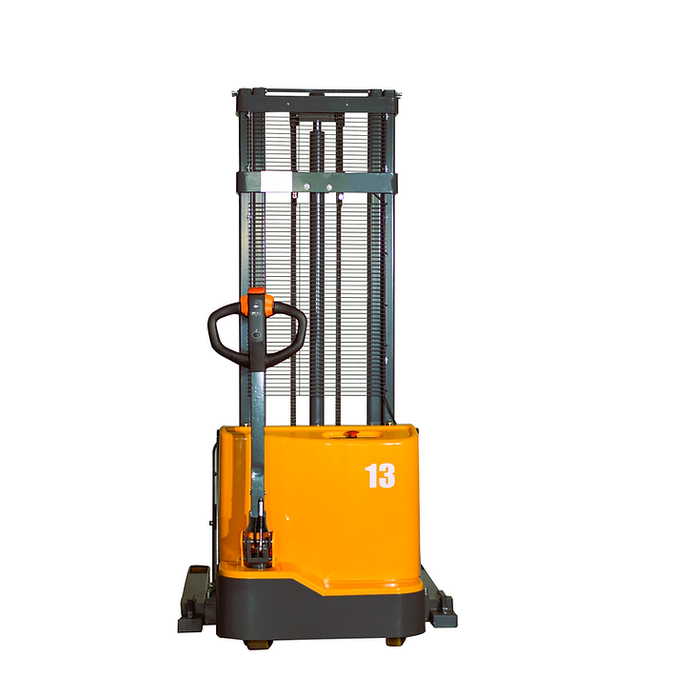

The EKKO EB13C-138 is a full-powered electric straddle stacker that lifts 2,800 lb to a raised height of 138 inches, combining the versatility of a forklift, a reach truck, and a walkie stacker in a single walk-behind unit. It is built for loading and unloading trucks, working loading docks, and moving stock through stock rooms, manufacturing floors, and general warehousing.

Power comes from a 24V/85Ah battery driving a 0.75 kW DC travel motor and a 2.2 kW lift motor, managed by a Curtis Instruments controller. An internal 24V/10A charger is built into the unit, so it recharges on board without a separate charging station. The stacker rides on polyurethane wheels suited to smooth, finished warehouse floors, and the ergonomic tiller handle keeps travel, lift, and lowering controls under one hand.

Steel construction and durable drive components are built to take the repeated directional changes, impacts, and sustained daily cycling of mixed material handling work.

Features

2,800 lb load capacity at a 24-inch load center, raised to 138 inches
Curtis Instruments controller for consistent travel and lift control
2.2 kW lift motor paired with a 0.75 kW DC drive motor
24V/85Ah battery with a built-in 24V/10A internal charger — onboard charging, no separate charging station
Polyurethane wheels matched to smooth, finished indoor floors
Adjustable forks: 45.3-inch length, 4-inch single-fork width, 8.6 to 32.1-inch outer width range
Adjustable straddle legs from 35.4 to 51.2 inches to span varied pallet and load widths
Ergonomic tiller handle with travel, lift, and lowering controls in one hand
Steel construction rated for repeated impact and directional changes

Specifications

EKKO EB13C-138 Straddle Stacker Specifications
Model	EB13C-138
Load capacity	2,800 lb
Max lifting height	138"
Load center distance	24"
Fork length	45.3"
Single fork width	4"
Fork adjustment width	8.6" – 32.1"
Lowered fork height	2.56"
Adjustable leg width	35.4" – 51.2"
Turning radius	56.1"
Overall length	73.4"
Max overall width	61"
Extended mast height	166.9"
Lowered mast height	75.2"
Battery	24V / 85Ah
Internal charger	24V / 10A
Lift motor	2.2 kW
Drive motor	0.75 kW
Service weight	1,390 lb

FAQ

How much can the EB13C-138 lift, and how high?

It carries up to 2,800 lb at a 24-inch load center and raises loads to a height of 138 inches.

Is a charger included?

Yes. A 24V/10A charger is built into the unit, so it recharges the 24V/85Ah battery on board without a separate charging station.

What floors is it suited for?

The polyurethane wheels are matched to smooth, finished indoor floors — warehouse aisles, stock rooms, loading docks, and manufacturing floors.

Will it fit my pallets and loads?

The straddle legs adjust from 35.4 to 51.2 inches and the forks adjust from 8.6 to 32.1 inches across, so the stacker can be set to a range of pallet and load widths. Forks lower to 2.56 inches to enter standard pallets.

What space does it need to maneuver?

The stacker has a 56.1-inch turning radius, a 73.4-inch overall length, and a 61-inch maximum overall width. With the mast lowered to 75.2 inches, it clears most standard doorways for transport between work areas.
