EKKO EB13C-118Li Lithium Straddle Stacker 2800 lb Cap., 118" Height

Name: EKKO EB13C-118Li Lithium Straddle Stacker 2800 lb Cap., 118" Height
Brand: EKKO Lifts
SKU: EB13C-118Li
Price: 6043.0 USD
Availability: InStock

SKU EB13C-118Li

In Stock

$6,043.00 - $6,043.00

$6,043.00

$6,043.00 - $6,043.00

$6,043.00

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

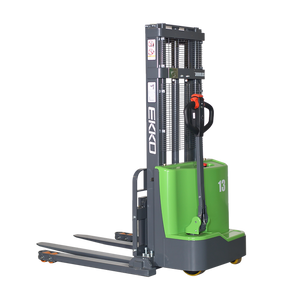

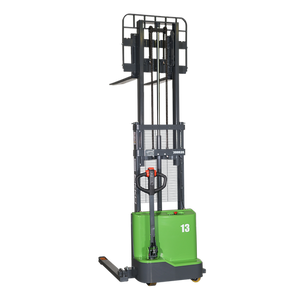

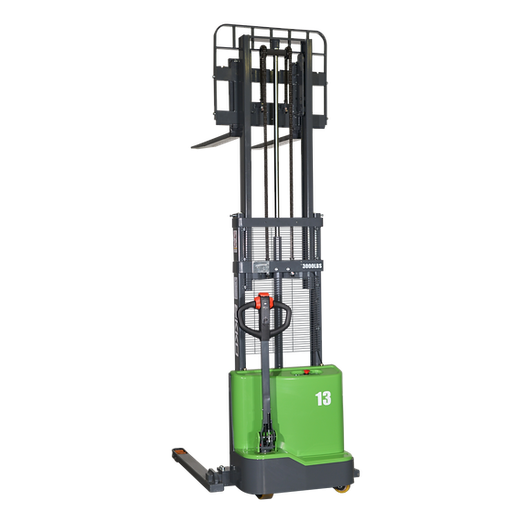

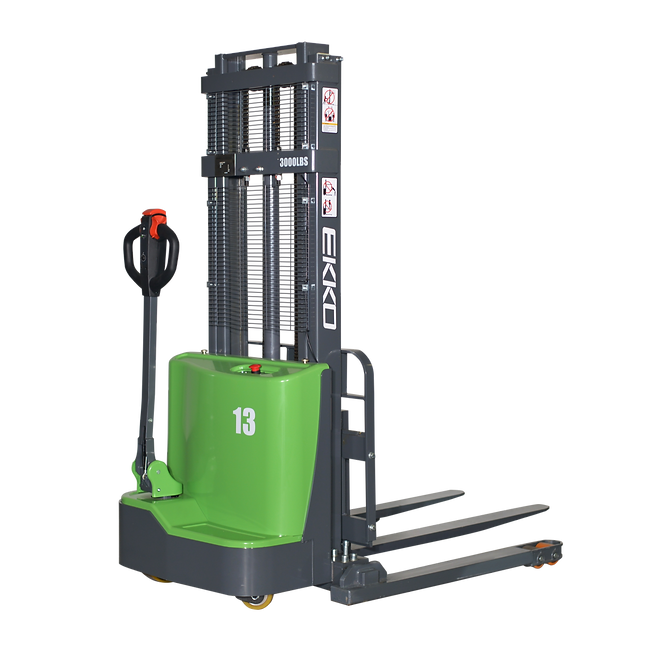

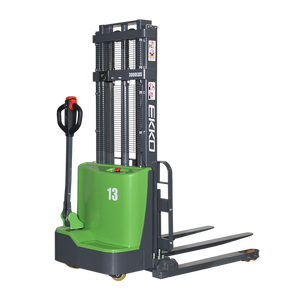

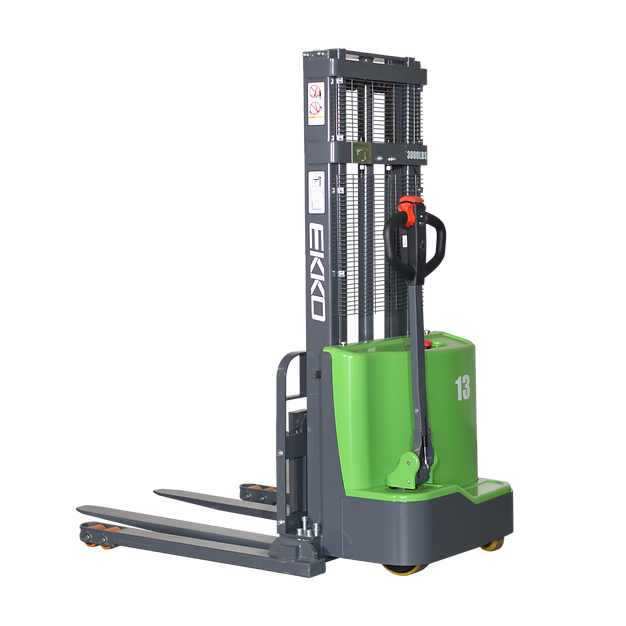

The EKKO EB13C-118Li is a lithium-powered straddle stacker built to lift 2,800 lb to a maximum height of 118 inches at a 24-inch load center. It pairs real stacking reach with a pedestrian-controlled walkie format, which suits it to loading and unloading trucks, working loading docks, and moving stock across stock rooms, manufacturing floors, and warehouse aisles.

The straddle layout sets two adjustable support legs on the floor outside the load while the forks lift from the center. The legs adjust from 35.4 to 51.2 inches and the forks from 8.6 to 32.1 inches in width, so the EB13C-118Li handles a range of pallet and load sizes instead of a single fixed footprint.

Power comes from a 24V/50Ah lithium-ion battery with a built-in 24V/20A charger, so there is no separate charging station to buy or store. A Curtis instrument controller runs the 2.2 kW lift motor and the 0.75 kW DC drive motor. The stacker rides on polyurethane wheels sized for smooth, finished indoor floors, and the frame is steel.

Features

2,800 lb capacity to a 118-inch maximum lift height at a 24-inch load center
24V/50Ah lithium-ion battery with an integrated 24V/20A charger — no external charging station required
Curtis instrument controller driving a 2.2 kW lift motor and a 0.75 kW DC drive motor
Adjustable forks, 8.6 to 32.1 inches wide, for varied pallet and load sizes
Adjustable straddle legs, 35.4 to 51.2 inches, for stable lifting around the load footprint
Polyurethane wheels for smooth, finished indoor floors
Steel construction
Ergonomic tiller handle and controls for pedestrian operation

Specifications

EKKO EB13C-118Li Specifications
Load capacity	2,800 lb
Load center distance	24 in
Maximum lift height	118 in
Fork length	45.3 in
Single fork width	4 in
Fork adjustment width	8.6 to 32.1 in
Lowered fork height	2.56 in
Adjustable legs	35.4 to 51.2 in
Turning radius	56.1 in
Overall length	73.4 in
Overall width (max)	61 in
Extended mast height	147.6 in
Lowered mast height	85 in
Battery	24V / 50Ah lithium-ion
Integrated charger	24V / 20A
Lift motor	2.2 kW
Drive motor	0.75 kW DC
Service weight	1,380 lb

FAQ

How much can the EB13C-118Li lift, and to what height?

It lifts up to 2,800 lb to a maximum height of 118 inches, rated at a 24-inch load center.

Does it need a separate charger?

No. The 24V/50Ah lithium-ion battery uses a built-in 24V/20A charger, so there is no external charging station to buy or store.

Will it maneuver in my space?

It is a pedestrian-controlled walkie with a 56.1-inch turning radius, a 73.4-inch overall length, and a maximum overall width of 61 inches.

What is the height when moving it around the facility?

The lowered mast height is 85 inches for moving through the facility, and the mast extends to 147.6 inches at full lift.

Is it suited to indoor or outdoor use?

The polyurethane wheels are intended for smooth, finished indoor floors — loading docks, stock rooms, manufacturing floors, and warehousing.

Documents

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
