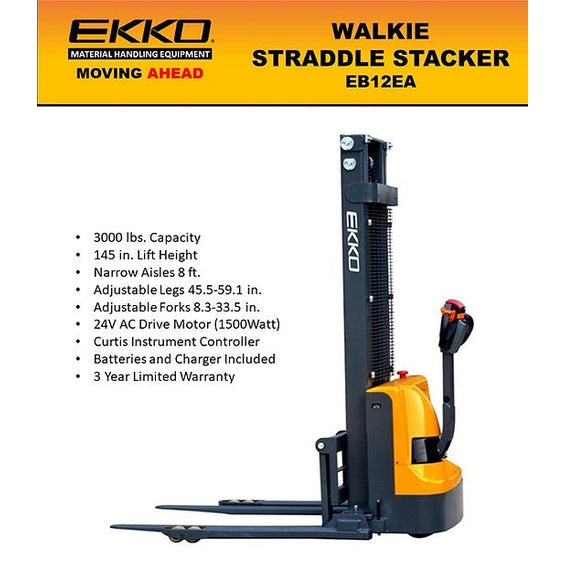

EKKO EB12EA Full Powered Straddle Stacker 3000 lb Cap., 145.67" Height

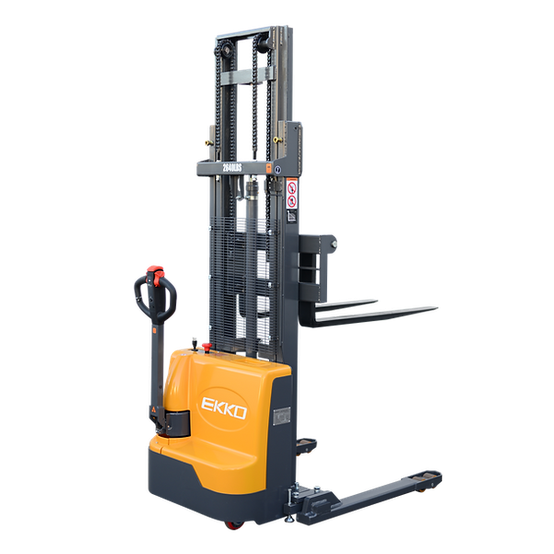

The EKKO EB12EA is a full-powered walkie straddle stacker that lifts 3,000 lb at a 24-inch load center to a fork height of 145.67 in (about 12.1 ft). The operator walks behind it, so there is no cab and no seat to maneuver around tight spaces — the straddle legs pass on either side of the load while the forks carry it, which keeps the footprint compact for loading and unloading trucks, working loading docks, and moving pallets through stock rooms, manufacturing floors, and general warehouse storage.

It rides on polyurethane wheels and drives off a 24-volt AC motor, so it is built for smooth indoor concrete rather than broken outdoor ground. A 3-year limited warranty backs the unit, and both the batteries and the charger are included, so it arrives ready to put to work without a separate power purchase.

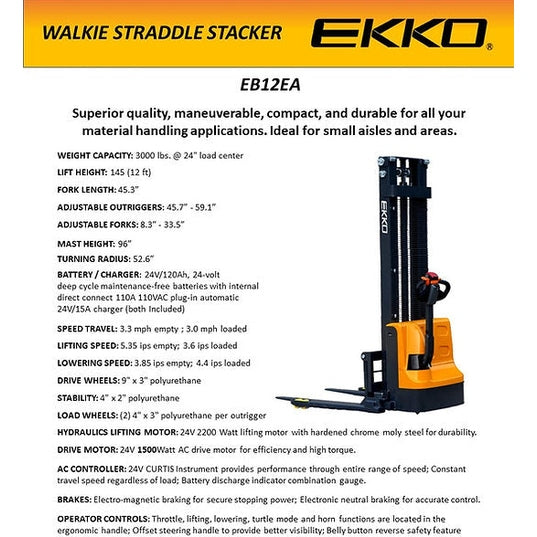

• 3,000 lb capacity at a 24-inch load center, lifting to 145.67 in.
• 24V AC drive motor rated 1,500 W, paired with a 2,200 W hydraulic lift motor.
• Curtis controller managing drive and lift functions, with a battery-discharge indicator gauge.
• Adjustable forks that span from 8.3 in to 33.5 in to match different pallet and load widths, on 45.3-in forks.
• Adjustable straddle legs (outriggers) to fit varied load footprints.
• Two 12V / 120Ah maintenance-free batteries with a built-in 24V / 15A automatic charger that plugs into a standard 110V outlet.
• Polyurethane drive and load wheels for clean, low-marking travel on smooth indoor floors.
• Steel chassis and mast with robotic welding for repeatable, consistent construction.

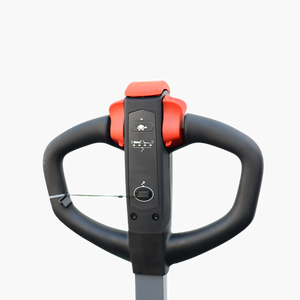

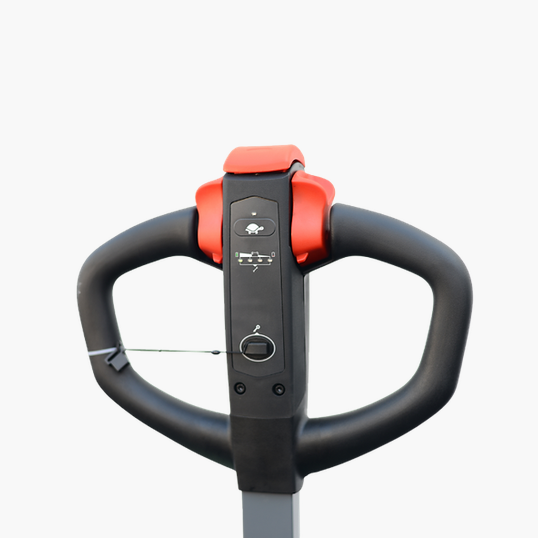

• Ergonomic tiller handle with twist throttle, a creep (turtle) speed mode, horn, and lift/lower controls, plus electro-magnetic braking and a belly-button reverse safety feature.

• Two 12V / 120Ah maintenance-free batteries (24V system)
• Built-in 24V / 15A automatic charger (plugs into a standard 110V outlet)

The EB12EA carries a 3-year limited warranty.

Is the charger included, and what does it plug into?

Yes. The unit ships with two 12V / 120Ah maintenance-free batteries and a built-in 24V / 15A automatic charger that plugs into a standard 110V wall outlet — no separate charging hardware to source.

How high does it lift?

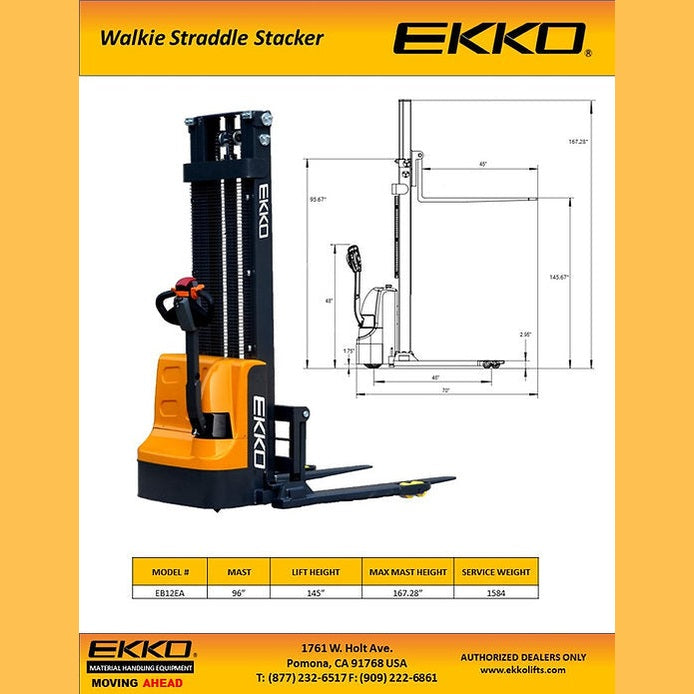

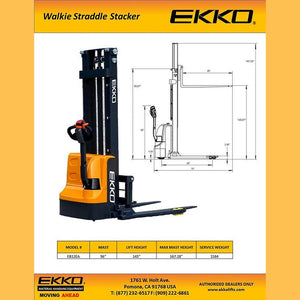

The forks raise to 145.67 in (about 12.1 ft). The mast stands 95.67 in collapsed and extends to 167.28 in at full height.

How much can it carry, and at what load center?

It is rated for 3,000 lb at a 24-inch load center.

Will the forks fit my pallets?

The forks are 45.3 in long and 4 in wide each, and the spread adjusts from 8.3 in to 33.5 in to match different pallet and load widths.

Is it for indoor or outdoor use?

It runs on polyurethane wheels and a 24-volt electric drive, which suits smooth indoor concrete — warehouses, docks, and stock rooms — rather than broken or uneven outdoor ground.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
