EKKO EB12E Full Powered Straddle Stacker 2640lbs. Cap., 119.4" Height

Name: EKKO EB12E Full Powered Straddle Stacker 2640lbs. Cap., 119.4" Height
Brand: EKKO Lifts
SKU: EB12E
Price: 5268.0 USD
Availability: InStock

SKU EB12E

In Stock

$5,268.00 - $5,268.00

$5,268.00

$5,268.00 - $5,268.00

$5,268.00

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

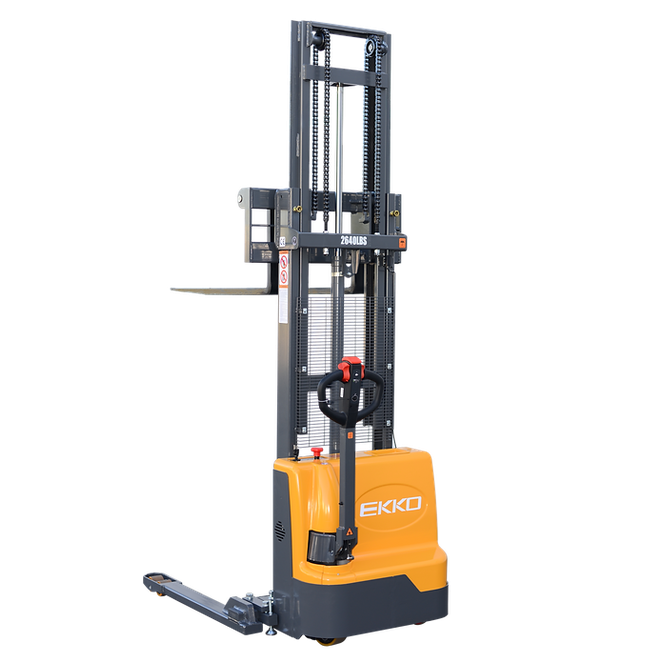

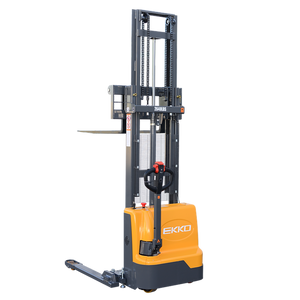

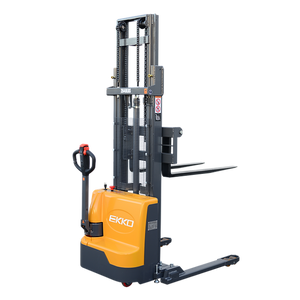

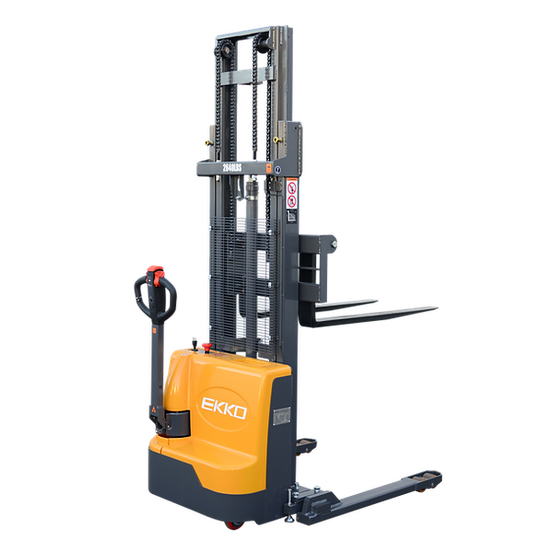

The EKKO EB12E is a full-powered electric straddle stacker rated to lift 2,640 lbs to a raised height of 119.4 inches — just under 10 feet. Its straddle-leg design borrows from the forklift, the reach truck, and the walkie stacker at once, putting powered lift and powered travel behind a pedestrian operator who walks the load into place. It is built for loading and unloading trucks, working loading docks, and moving palletized stock across stock rooms, manufacturing floors, and general warehousing.

The chassis is steel, joined with robotic welding for repeatable joint quality, and rolls on polyurethane wheels suited to smooth indoor floors. Both the lift and the drive are electric, so there is no pumping or pushing — the operator manages everything from the tiller.

The forks measure 45.3 inches long and carry a rated 24-inch load center. Overall fork width adjusts from 8.3 to 33.5 inches to match different pallet and load footprints, and the straddle legs adjust outward to fit over a range of load widths, with a fixed leg length of 36.5 inches.

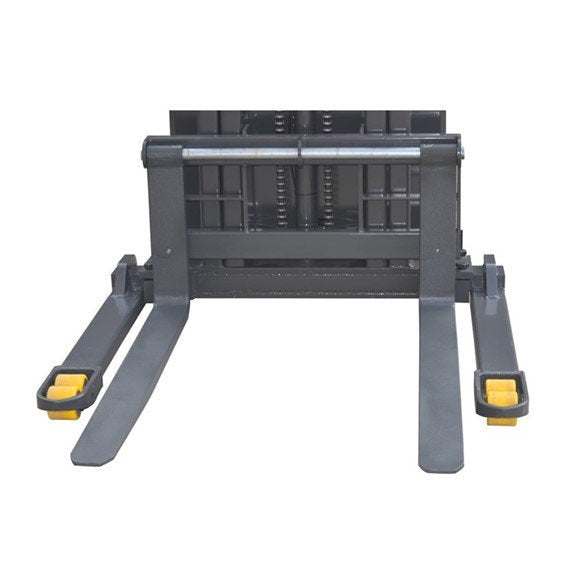

Front view of straddle stacker fork carriage, mast chains, and adjustable forks — Fork carriage and adjustable straddle legs, front view

Features

2,640 lb capacity at a 24-inch load center, lifting to 119.4 inches
Full-powered electric lift and electric drive — no manual pumping or pushing
24V drive motor and 24V lift motor managed by a Curtis controller
Adjustable forks (8.3–33.5 in overall width) and adjustable straddle legs to fit varied loads
Polyurethane wheels for smooth indoor floors
Steel construction with robotic welding
Onboard internal charger and battery included
Ergonomic tiller handle and controls

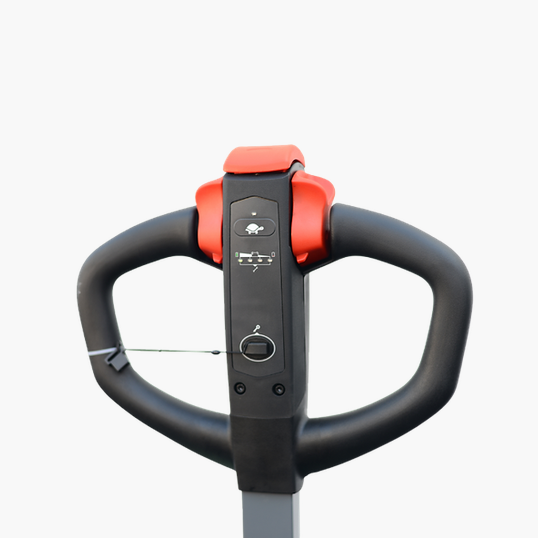

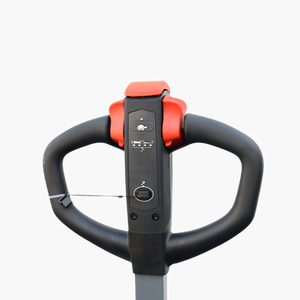

Ergonomic tiller head with butterfly throttle and control buttons — Ergonomic tiller controls

What's Included

Two 12V / 100Ah batteries
Onboard 24V / 15A internal charger

Specifications

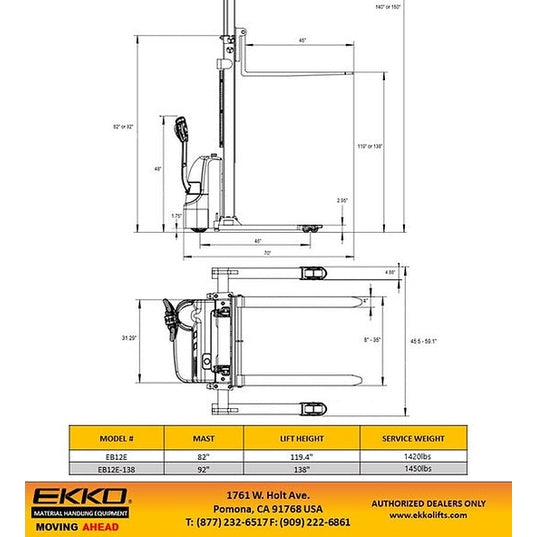

Dimensional drawing of EKKO walkie straddle stacker with side and top views — Dimensional drawing, side and top views

EKKO EB12E Full Powered Straddle Stacker Specifications
Load capacity	2,640 lbs
Maximum lift height	119.4 in (9.95 ft)
Load center	24 in
Fork length	45.3 in
Single fork width	4 in
Overall fork width (adjustable)	8.3-33.5 in
Lowered fork height	2.35 in
Fixed leg length	36.5 in
Turning radius	52.6 in
Overall length	70 in
Maximum overall width	61 in
Extended mast height	135 in
Lowered mast height	82 in
Battery	2 x 12V / 100Ah (included)
Internal charger	24V / 15A
Lift motor	2.2 kW
Lift speed (laden / unladen)	92 / 136 mm/s
Lowering speed (laden / unladen)	112 / 98 mm/s
Drive motor	0.75 kW
Travel speed (laden / unladen)	4.0 / 4.2 km/h
Controller	Curtis
Wheels	Polyurethane
Service weight	1,420 lbs

Warranty

The EKKO EB12E is covered by a 3-year limited warranty.

FAQ

What is the rated capacity?

2,640 lbs at a 24-inch load center.

How high does the EB12E lift?

To a raised height of 119.4 inches — 9.95 feet.

Does it come with a battery and charger?

Yes. Two 12V / 100Ah batteries and an onboard 24V / 15A internal charger are included.

Will the forks fit my pallets?

The forks are 45.3 inches long and adjust from 8.3 to 33.5 inches of overall width, and the straddle legs adjust to fit over a range of load widths.
