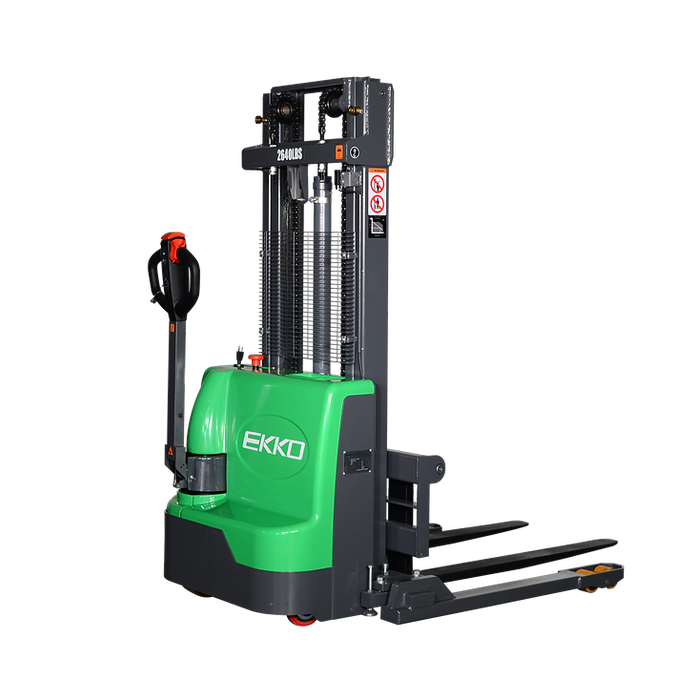

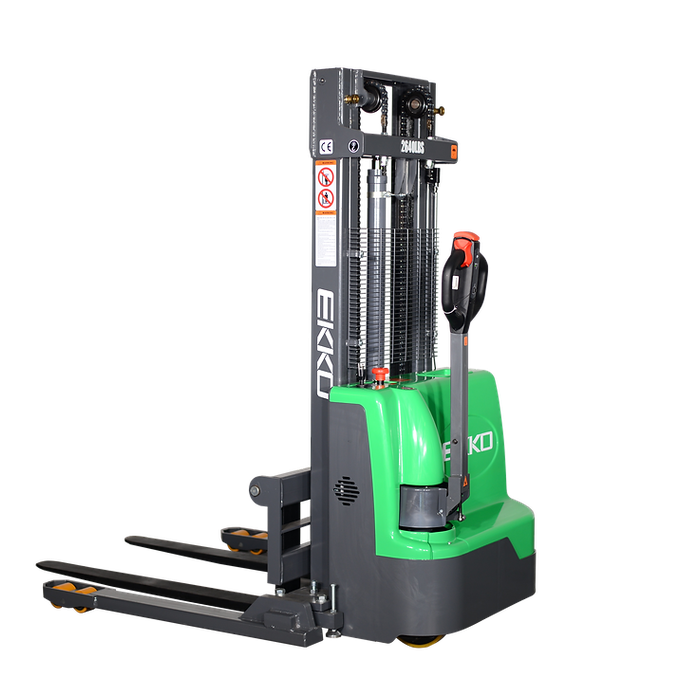

EKKO EB12E-98Li Lithium Iron Phosphate Straddle Stacker 72"Mast, 98" Lift

EKKO EB12E-98Li Lithium Iron Phosphate Straddle Stacker 72"Mast, 98" Lift

SKU EB12E-98Li

In Stock
$5,888.00 - $5,888.00
$5,888.00
$5,888.00 - $5,888.00
$5,888.00
Call/Text Us: 307-441-9566 Call Us
Live Chat With an Expert Live Chat
WINTER SALE: 5% Applied At Checkout
Winter is here with unbeatable deals + 5% off applied at checkout for all orders above $1000. Dive in now and claim the season’s best savings. Expires soon.

Description

-

The EKKO EB12E-98Li is an electric straddle stacker that lifts a 2,640 lb load to a 98-inch height, with a 72-inch lowered mast that clears standard doorways. Adjustable straddle legs bracket the load instead of counterweighting it, so the truck reaches into racking and pallet loads in a compact, walk-behind footprint — combining traits of a forklift, a reach truck, and a walkie stacker.

It is built for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehousing. Steel construction with robotic welding, polyurethane wheels, and a drivetrain rated to handle impacts and directional changes keep it working through daily use. Power comes from a 24V lithium iron phosphate (LiFePO4) battery.

Features

-
  • 2,640 lb load capacity at a 24-inch load center.
  • 72-inch lowered mast height to pass under standard doorways; 98.42-inch maximum lift and a 119.96-inch extended mast height.
  • Straddle legs adjust from 45.7 to 59.1 inches to bracket varied load and pallet widths.
  • Fork spread adjusts from 8.27 to 33.47 inches; 45.28-inch fork length.
  • Curtis controller governing drive and lift functions.
  • 24V lithium iron phosphate (LiFePO4) battery.
  • Electromagnetic service brake and mechanical steering.
  • Polyurethane wheels and an ergonomic handle with integrated controls.
  • Steel construction with robotic welding.

Specifications

-
EKKO EB12E-98Li Specifications
Model EB12E-98Li
Power Unit Walkie
Operation Electric (Lithium Iron Phosphate)
Load Capacity 2,640 lbs
Load Center 24 in
Axle Center to Fork Face 28 in
Wheel Base 45.4 in
Service Weight 1,300 lbs
Lowered Mast Height 72.05 in
Maximum Lift Height 98.42 in
Extended Mast Height 119.96 in
Operating Handle Height (Min / Max) 34.25 / 47.24 in
Lowered Fork Height 2.56 in
Overall Length 71 in
Length to Fork Face 23.82 in
Fork Dimensions (Thick / Width / Length) 1.38 / 3.94 / 45.28 in
Fork Spread (Outside) 8.27 - 33.47 in
Straddle Leg Adjustment 45.7 - 59.1 in
Min Ground Clearance 0.95 in
Turning Radius 52.6 in
Travel Speed (Laden / Unladen) 2.5 / 2.6 mph (4.0 / 4.2 km/h)
Max Gradeability (Laden / Unladen) 6% / 8%
Service Brake Electromagnetic
Steering Mechanical
Lift Motor 24V / 2.2 kW
Drive Motor 24V / 0.75 kW
Control Type DC
Battery 24V / 60 Ah Lithium (LiFePO4)
Battery Weight 29 lbs
Tires Polyurethane
Front Wheels 3.1 in dia. × 2.7 in (×4)
Rear Drive Wheel 8.3 in dia. × 2.7 in (×1)
Balance Wheel 6 in dia. × 2.3 in (×1)
Noise at Operator's Ear 69 dB

Warranty

-

The EB12E-98Li is covered by a 3-year limited warranty.

FAQ

-

How much can the EB12E-98Li lift, and how high?

It is rated for 2,640 lbs at a 24-inch load center, with a maximum lift height of 98.42 inches.

Will it fit through a standard doorway?

Yes. The lowered mast height is 72.05 inches, low enough to pass under standard doorways before raising the load inside.

What load sizes can the straddle legs and forks handle?

The straddle legs adjust from 45.7 to 59.1 inches and the fork spread adjusts from 8.27 to 33.47 inches, so the truck brackets a range of pallet and load widths. Fork length is 45.28 inches.

What is the footprint and turning radius?

Overall length is 71 inches on a 45.4-inch wheel base, with a 52.6-inch turning radius. Service weight is 1,300 lbs.

What battery does it use?

A 24V / 60 Ah lithium iron phosphate (LiFePO4) battery.

Documents

-

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
