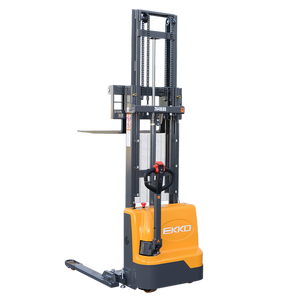

EKKO EB12E-138 Full Powered Straddle Stacker 2640 lb Cap., 138" Height

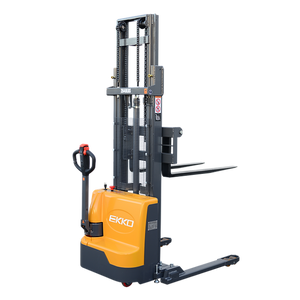

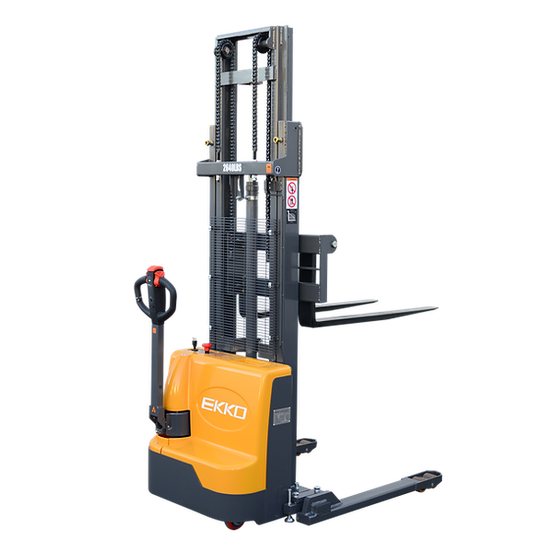

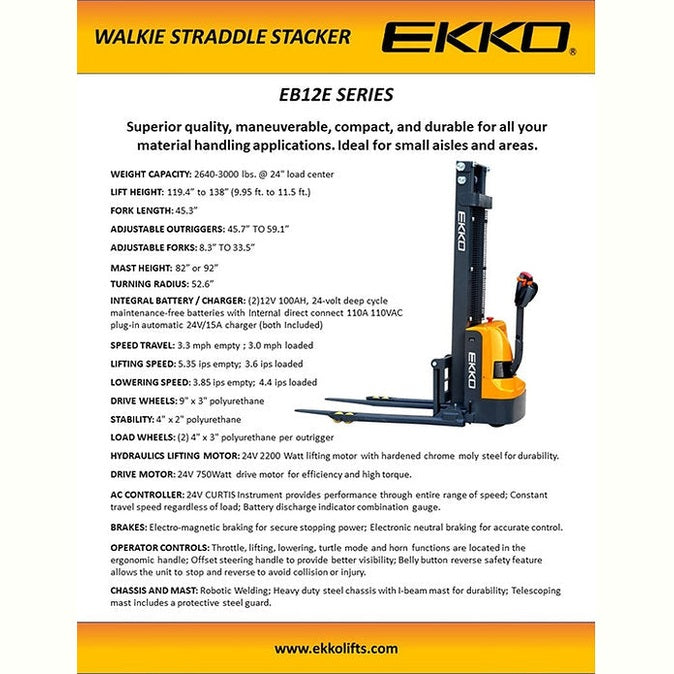

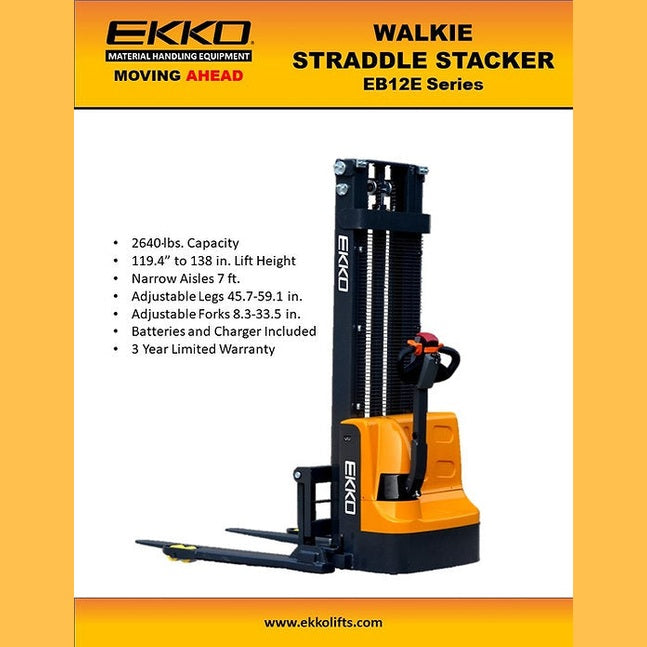

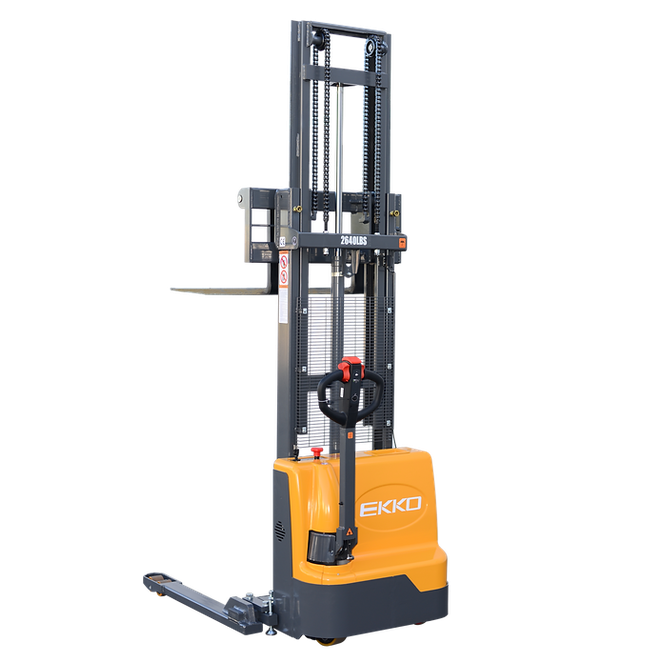

The EKKO EB12E-138 is a fully electric straddle stacker that brings forklift-style lift height to a compact, walk-behind footprint. It carries 2,640 lb at a 24-inch load center and raises loads to 138 inches (11.5 feet). Its straddle legs sit on either side of the load and support it directly, so the unit stays stable at full height without the counterweight bulk of a sit-down truck — and the legs adjust in width to span different pallet sizes.

It is built for loading and unloading trucks, working loading docks, and moving stock across stock rooms, manufacturing floors, and general warehousing. The chassis is heavy-duty steel with a telescoping I-beam mast and a protective steel guard, joined by robotic welding. It rolls on polyurethane wheels — 9×3-inch drive wheels, 4×2-inch stability wheels, and two 4×3-inch load wheels per outrigger — sized for smooth indoor concrete. With a 52.6-inch turning radius and a 61-inch maximum width, it works in aisles as tight as 7 feet.

Power is 24V electric. Two 12V/100Ah deep-cycle, maintenance-free batteries are included, along with an internal 24V/15A charger that plugs into a standard 110V outlet — no external charging station or special wiring. A 24V Curtis controller holds a constant travel speed regardless of load and includes a battery discharge indicator. A 2.2 kW lift motor and 0.75 kW drive motor handle stacking and travel.

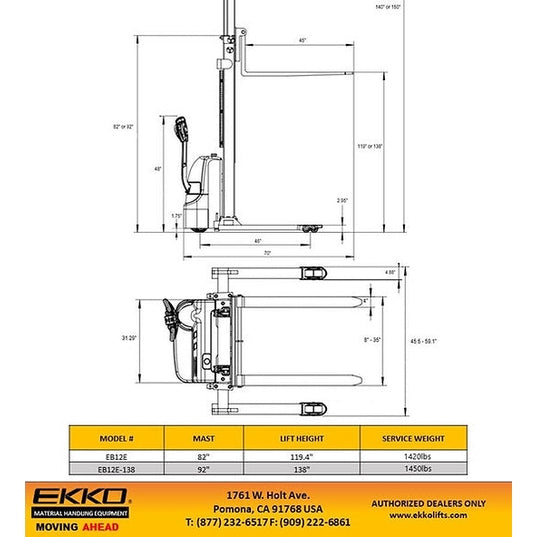

Forks are 45.3 inches long and adjust from 8.3 to 33.5 inches wide to match pallet openings, dropping to a 2.35-inch lowered height for easy pallet entry. The unit ships via freight; Forklift King arranges delivery scheduling.

• Straddle-leg design — outrigger legs support the load directly and adjust in width to span different pallet sizes, keeping the unit stable at its full 138-inch height without a heavy counterweight.

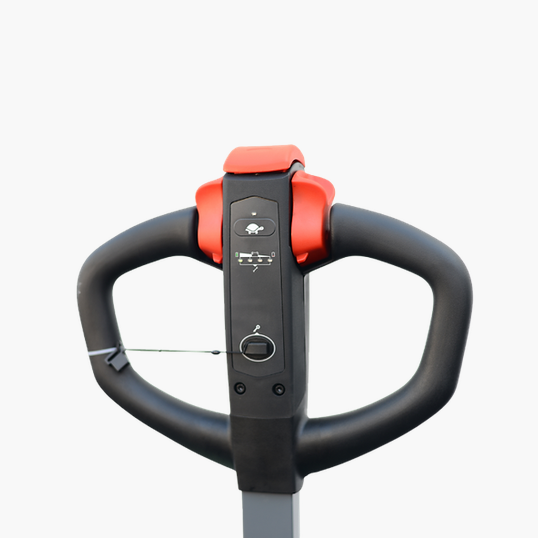

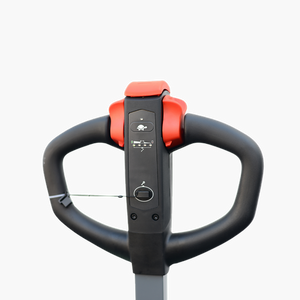

• Ergonomic control handle — throttle, lift, creep (turtle) mode, and horn sit on an offset handle for better forward visibility, with a belly-button reverse switch that stops and reverses the unit to help avoid collisions.
• Electro-magnetic braking — automatic braking for secure stops, plus electronic neutral braking for controlled handling.
• Maintenance-free battery power, charger included — two 12V/100Ah deep-cycle batteries and an internal 24V/15A charger that plugs into a standard 110V outlet.
• Curtis controller — holds a constant travel speed regardless of load and shows charge level on a battery discharge indicator.
• Telescoping steel I-beam mast — heavy-duty steel with a protective guard on a robotically welded chassis.
• Polyurethane wheels — drive, stability, and outrigger load wheels matched to smooth indoor concrete.

• Two 12V / 100Ah deep-cycle batteries (24V)
• Internal 24V / 15A charger (110V plug-in)

The EB12E-138 is backed by a 3-year limited warranty.

Does it use a counterweight or straddle legs?

Straddle legs. Two outrigger legs sit on either side of the load and support it directly, which keeps the unit stable to its full 138-inch height while staying lighter and more compact than a counterbalanced truck. The legs adjust in width to straddle different pallet sizes.

What pallets and loads will it handle?

It lifts up to 2,640 lb at a 24-inch load center. The forks adjust from 8.3 to 33.5 inches wide and drop to a 2.35-inch lowered height for easy pallet entry.

Are the batteries and charger included, and what outlet does it need?

Yes. It ships with two 12V/100Ah deep-cycle, maintenance-free batteries and an internal 24V/15A charger that plugs into a standard 110V outlet — no external charging station or special wiring.

Will it fit my aisles?

The turning radius is 52.6 inches and the maximum width is 61 inches, so it works in aisles as tight as about 7 feet. Compare those against your narrowest working aisle before ordering.

Is it for indoor or outdoor use?

It runs on polyurethane wheels matched to smooth indoor concrete — drive, stability, and outrigger load wheels.

Manuals and technical documents for the EB12E-138 are available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
