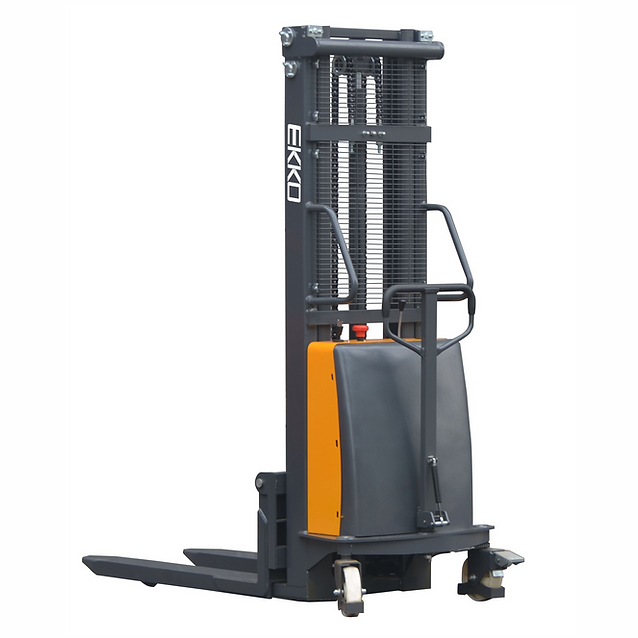

EKKO EA15E Semi-Electric Fork-Over Stacker 3300lbs. Cap., 138" Height

The EKKO EA15E is a 3,300 lb capacity semi-electric fork-over stacker built for warehouse staging, dock loading, and stock-room order picking — work where a full counterbalanced forklift is more equipment than the job calls for. The mast lifts to 138 inches (11.5 ft) at full extension and the hydraulic lift runs off an included 12-volt battery. The operator walks alongside and steers manually rather than muscling loads up by hand.

The fork-over layout rides above the chassis legs rather than between them, so the forks slide over standard pallets and open-bottom skids. Adjustable forks let you set the spread to the load. Forks are 45.3 inches long with a 24.5-inch overall outside width and a 2.4-inch lowered fork height — low enough to enter standard pallet openings without lifting the pallet first.

The drivetrain pairs a robotic-welded steel chassis with an ergonomic operator handle and a DC 12V / 1500-watt lift motor. The 12V / 20A charger is built into the unit, so the stacker plugs into any standard outlet between shifts — no separate charger to source or mount off-board. The 12V / 120Ah battery ships with the unit.

Service weight is 910 lb at 73 inches overall length, 59 inches maximum overall width, and a 53.2-inch turning radius — sized for the dock door and aisle dimensions of most distribution warehouses, and light enough to ship on a single LTL pallet. EKKO manufactures Class I–V material handling equipment from a 50,000-plus square-foot facility in Pomona, California. The EA15E carries a 3-year limited warranty.

• 3,300 lb capacity at a 24-inch load center.
• 138-inch (11.5 ft) maximum lift height.
• Fork-over design with adjustable forks.
• 45.3-inch fork length; 24.5-inch overall outside fork width.
• 2.4-inch lowered fork height for standard pallet entry.
• Power-assisted hydraulic lift; manual walk-alongside drive.
• Internal 12V / 20A charger built into the unit.
• 12V / 120Ah battery included.
• DC 12V / 1500-watt hydraulic lift motor.
• Robotic-welded steel chassis.
• Ergonomic operator handle.

The EA15E is built for indoor material handling on flat surfaces. Use cases the supplier highlights:

• Loading and unloading trucks
• Loading docks
• Stock rooms
• Manufacturing floors
• Warehousing

The 59-inch overall width and 53.2-inch turning radius fit small-aisle layouts. Confirm aisle, doorway, and dock-door clearances against the truck's overall dimensions before specifying.

• EKKO EA15E semi-electric fork-over stacker
• 12V / 120Ah battery
• Internal 12V / 20A charger
• Adjustable forks (45.3-inch length)

The EKKO EA15E ships with a 3-year limited warranty covering materials and workmanship. Specific coverage terms are detailed in the warranty documentation that ships with the unit; for the full warranty document before purchase, contact the Forklift King team.

What is the rated capacity and lift height?

3,300 lb capacity at a 24-inch load center. Maximum lift height is 138 in (11.5 ft).

Are the battery and charger included?

Yes — a 12V / 120Ah battery and a built-in 12V / 20A internal charger ship with the unit. The charger lives onboard and plugs into any standard outlet between shifts.

What does "semi-electric" mean on this stacker?

The lift is electric — the hydraulic mast raises and lowers under battery power, no hand-pumping required. The drive is manual: the operator walks alongside, pushes and pulls the stacker, and steers with the ergonomic handle.

Will the forks fit a standard pallet?

The 2.4-inch lowered fork height clears standard pallet openings, and the adjustable forks let you set the spread to the specific pallet. Fork length is 45.3 inches — confirm against the pallet depth you intend to handle before purchase.

What is the service weight?

910 lb. Confirm your floor, ramp, and dock plate ratings can support the loaded weight (910 lb truck + up to 3,300 lb payload) before commissioning.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
