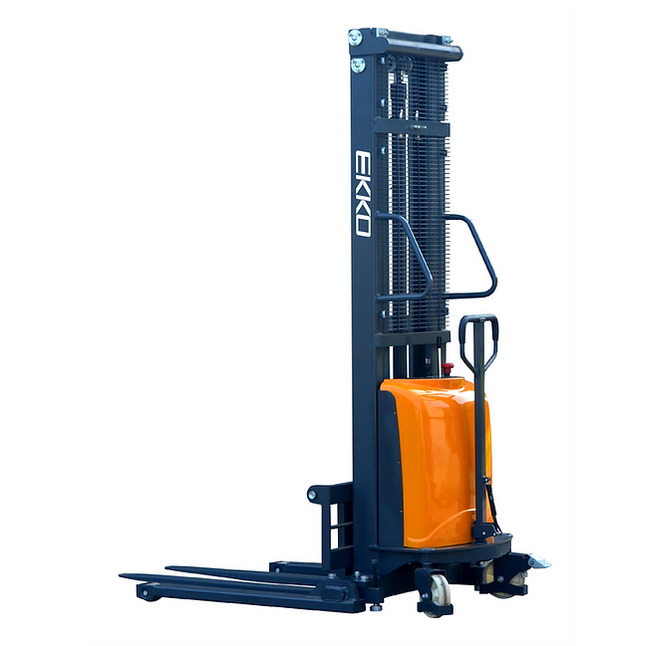

EKKO EA15D Semi-Electric Straddle Stacker 3300lbs. Cap., 138" Height

The EKKO EA15D Semi-Electric Straddle Stacker combines a forklift-style vertical mast with a walk-behind footprint to move and elevate pallets without the cab and turn radius of a sit-down truck. Rated for 3,300 lb at a 24-inch load center, it lifts loads to a 138-inch maximum height (11.5 ft) — high enough to clear standard rack beam levels and dock-to-shelf transfers in most warehouse layouts.

Drive is manual: the operator pushes and steers via the ergonomic tiller handle. Lifting is fully powered by a 12V DC system with an onboard battery and built-in charger. That split keeps the unit lighter and more affordable than a fully powered walkie stacker while removing the strain of manual hydraulic pumping from every cycle.

Engineered for loading docks, stock rooms, manufacturing floors, and general warehousing, the EA15D pairs adjustable forks and adjustable straddle legs with a steel frame and robotic-welded joints. EKKO Lifts backs the unit with a 3-year limited warranty — the EKKO Advantage Warranty that is standard across the brand’s Class I–V lineup.

• 3,300 lb load capacity at a 24-inch load center
• 138-inch maximum lift height — 11.5 feet of elevation for upper rack beams and mezzanine drops
• Power lifting, manual drive — 12V DC lift system with operator-pushed travel
• Adjustable forks and adjustable straddle legs for varied pallet widths and load footprints
• Built-in 12V / 15A charger with a 12V / 120Ah battery included from the factory
• Ergonomic tiller handle with integrated lift and lower controls
• Steel construction with robotic-welded joints
• 45.3-inch fork length and 2.35-inch lowered fork height for standard pallet entry

The EA15D is built for indoor, flat-surface material handling where a sit-down forklift is more equipment than the application requires. Supplier-stated environments include:

• Loading and unloading trucks at the dock
• Loading docks and staging areas
• Stock rooms and order-picking floors
• Manufacturing floors and assembly lines
• General warehousing operations

Confirm aisle width against the 52.6-inch turning radius and rack clearance against the 154-inch extended mast height before placing the order.

• EKKO EA15D semi-electric straddle stacker with adjustable forks and adjustable straddle legs
• 12V / 120Ah battery, installed
• Built-in 12V / 15A charger integrated into the unit
• Ergonomic tiller handle with operator controls

The EA15D ships with a 3-year limited warranty — the EKKO Advantage Warranty that is standard across EKKO’s Class I–V product lines. Coverage details and claim handling are confirmed at order placement.

Does the EA15D include the battery and charger?

Yes. The unit ships with a 12V / 120Ah battery installed and an integrated 12V / 15A built-in charger — no separate purchase required.

What is the maximum lift height?

138 inches at the fork tip, or 11.5 feet. The mast extends to 154 inches when raised and collapses to 92 inches when lowered for clearance under standard dock doors.

How is the stacker driven?

Drive is manual — the operator steers and pushes the unit via the ergonomic tiller handle. Lift and lower are powered by the 12V DC system, removing manual hydraulic pumping from every cycle.

What load center is the 3,300 lb capacity rated at?

24 inches. Loads with a deeper center of gravity reduce the effective capacity per standard derating curves — confirm with EKKO when the load profile is unusual.

Where is the EA15D meant to be used?

Per supplier guidance, the EA15D is designed for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehousing. It is an indoor, flat-surface unit and is not engineered for rough outdoor terrain.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
