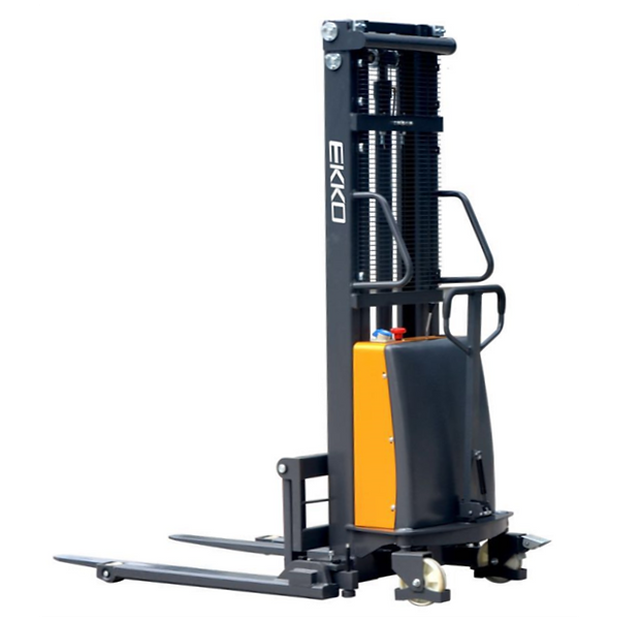

EKKO EA15B Semi-Electric Straddle Stacker 3300lbs. Cap., 119.4" Height

The EKKO EA15B Semi-Electric Straddle Stacker combines the lift capability of a forklift with the simplicity of a walkie pallet stacker. The operator pushes and steers manually; the mast lifts under power. With a 3,300 lb load capacity at a 24-inch load center and a maximum lift height of 119.4 inches (9.95 feet), the EA15B is built for loading and unloading trucks, working loading docks, organising stock rooms, moving work across manufacturing floors, and stacking pallets in general warehousing.

The straddle design lets the EA15B handle the open-bottom pallets and skids that standard counterbalanced stackers can't approach. Outriggers adjust from 43.5 in to 59.1 in to surround the load, and fork spread adjusts from 8.3 in to 33.4 in to centre on different pallet widths. A 53.2 in turning radius lets it operate in aisles as narrow as 7 feet.

Construction is heavy-duty steel throughout: a robotically welded chassis carries an I-beam telescoping mast with a protective steel guard, and the lift system runs on a DC 12V / 1.5 kW motor powered by a deep-cycle 12V / 120 Ah battery. An internal 12V / 15 A charger ships in the unit — plug it in to a standard outlet and the EA15B is ready for the next shift.

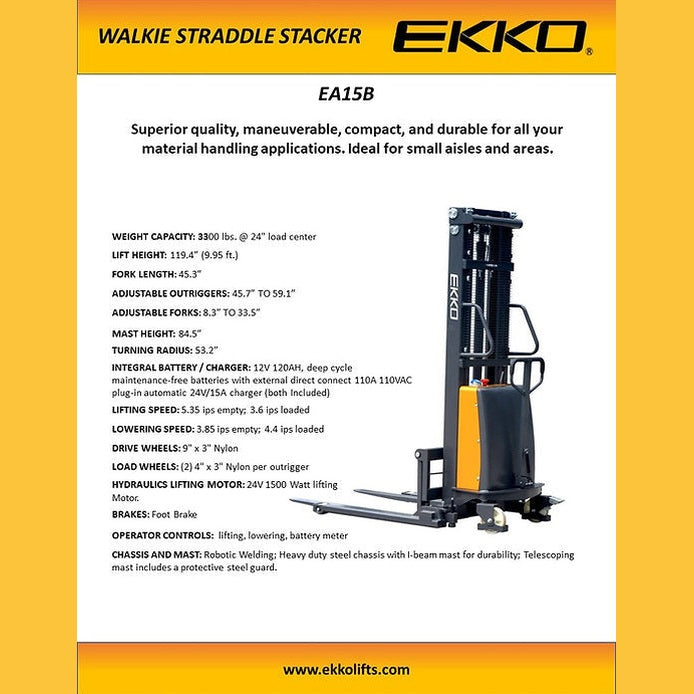

• 3,300 lb load capacity at a 24-inch load center

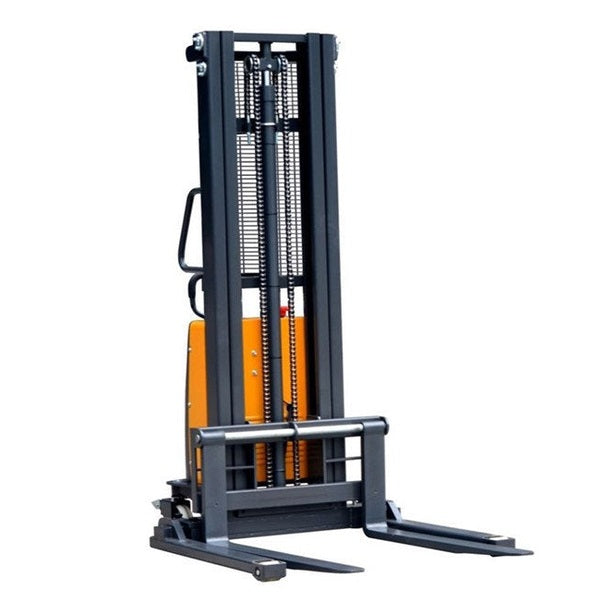

• 119.4 in (9.95 ft) maximum lift height on a telescoping I-beam mast

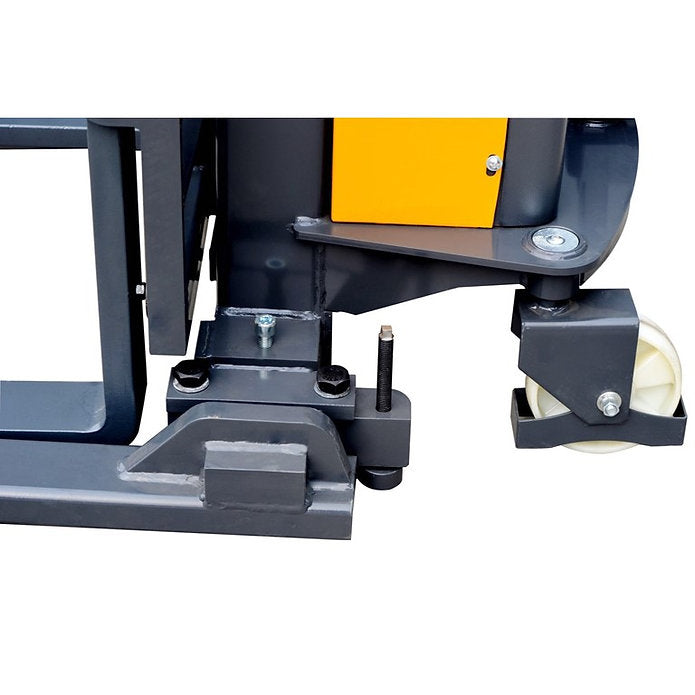

• Adjustable straddle legs 43.5 in to 59.1 in to wrap around varied pallet footprints
• Adjustable forks 8.3 in to 33.4 in with 45.3-inch fork length
• Powered hydraulic lift; manual push-and-steer drive
• Heavy-duty steel chassis with robotic welding and a protective steel mast guard
• Ergonomic operator handle with lift, lower, and battery-meter controls; foot brake
• 9 in × 3 in nylon drive wheel; two 4 in × 3 in nylon load wheels per outrigger
• Internal 12V / 15 A charger included — recharges from any standard wall outlet
• 1,200 lb service weight

The EA15B is built for smooth indoor flooring — loading docks, stock rooms, manufacturing floors, and warehouse aisles. The 53.2-inch turning radius and 59-inch maximum overall width are sized to operate in aisles as narrow as 7 feet. Confirm doorway clearance against the 84.5-inch lowered mast height before ordering for spaces with low headers.

• Deep-cycle 12V / 120 Ah battery
• Internal 12V / 15 A charger (built into the unit)

The EA15B ships with a 3-year limited warranty from EKKO Material Handling Equipment Manufacturing.

Does the EA15B drive itself, or does the operator push it?

The operator pushes and steers the EA15B manually. The lift function is powered — the operator presses the lift control and the hydraulic motor raises the forks. Lowering and battery-meter readout are also handled at the operator handle.

Is a battery and charger included with the purchase?

Yes. The EA15B ships with a 12V / 120 Ah deep-cycle battery and a 12V / 15 A charger built into the unit. No external charging station is required — plug the stacker into a standard outlet to recharge.

Can the forks and legs be adjusted for different pallets?

Yes. The fork spread adjusts from 8.3 in to 33.4 in to centre on the load, and the straddle legs adjust from 43.5 in to 59.1 in to surround it. Forks are 45.3 in long.

What aisle width does the EA15B need?

The EA15B has a 53.2-inch turning radius and is built for aisles as narrow as 7 feet. Confirm the maximum 59-inch overall width (at the widest leg setting) against the tightest doorway and aisle in the route before ordering.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
