EKKO EA15A Semi-Electric Straddle Stacker, 3,300 lbs Capacity, 118" Height

Name: EKKO EA15A Semi-Electric Straddle Stacker, 3,300 lbs Capacity, 118" Height
Brand: EKKO Lifts
SKU: EA15A
Price: 4158.0 USD
Availability: InStock

SKU EA15A

In Stock

$4,158.00 - $4,158.00

$4,158.00

$4,158.00 - $4,158.00

$4,158.00

Call/Text Us: 307-441-9566 Call Us

Live Chat With an Expert Live Chat

Description

The EKKO EA15A combines the lifting reach of a forklift with the footprint of a pallet stacker — a semi-electric straddle stacker rated for 3,300 lb loads at a 20-inch load center with a maximum lift height of 118 inches. The straddle leg design adjusts from 35 to 51 inches to clear standard pallets, and the forks adjust from 8.66 to 32 inches outer width and run 45 inches long for non-standard skids without an attachment swap.

Power lifting moves the load up the mast; manual drive moves the unit across the floor — a deliberate split that keeps the EA15A lighter (1,212 lb service weight) and simpler to service than a fully electric stacker, while removing the operator fatigue of hand-pumping a hydraulic ram on every stack. The included 12V/120AH lead-acid battery and 12V/15A on-board charger drop the unit into a standard outlet without a separate charging station.

EKKO Lifts manufactures the EA15A from its Pomona, California facility, the same plant that produces the brand's Class I–V material handling lineup. Welded steel construction with robotic welding gives the chassis the strength to handle repeated impact and directional changes through loading docks, stock rooms, manufacturing floors, truck loading and unloading, and general warehousing — the application set the EA15A is sized for.

Features

3,300 lb load capacity rated at a 20-inch load center
118-inch maximum lift height, 147-inch extended mast, 85-inch lowered mast
Adjustable forks: 8.66 – 32 inches outer width, 45 inches long, 2.6-inch lowered fork height
Adjustable straddle legs: 35 – 51 inches
Power lifting paired with manual travel — single-operator simplicity
12V/120AH lead-acid battery and 12V/15A on-board charger included
2.2 kW lift motor

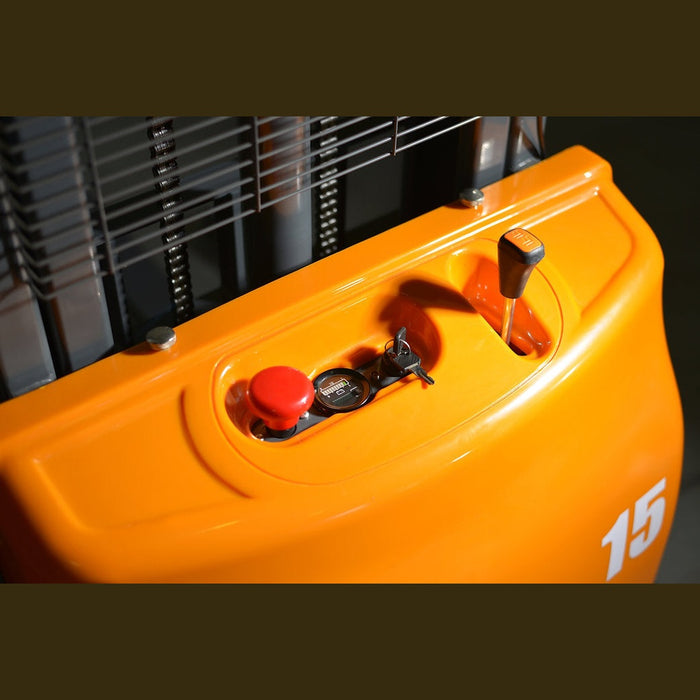

Ergonomic comfort handle
Welded steel construction with robotic welding
59-inch turning radius for stock rooms and tight aisle work
1,212 lb service weight

What's Included

EKKO EA15A semi-electric straddle stacker
12V/120AH lead-acid battery
12V/15A on-board charger

Specifications

EKKO EA15A Semi-Electric Straddle Stacker Specifications
Model	EA15A
Load capacity	3,300 lb
Maximum lift height	118 in
Load center distance	20 in
Fork length	45 in
Single fork width	4 in
Overall fork width (adjustable)	8.66 – 32 in
Lowered fork height	2.6 in
Adjustable legs	35 – 51 in
Turning radius	59 in
Overall length	70 in
Overall width (max)	59 in
Extended mast height	147 in
Lowered mast height	85 in
Battery	12V / 120AH lead-acid (included)
On-board charger	12V / 15A (included)
Lift motor	2.2 kW
Service weight	1,212 lb

Documents

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
